channel reader R2000 JT-932 is our new generation of UHF RFID Reader. It applies FCC ISM (902-928MHz) protocol and ETSI (865.6-867.6MHz) (need to specify when the order is placed). This device is designed to read ISO18000-6C(EPC C1 GEN2)Tags. Light weight, high receive sensitivity, easy to operation,reliable, stable performance. JT-932 provides API function for further development. Meanwhile, it is integrated with LAN interface, management software and database. The process of building a success system can meet all the needs of storage management, logistic, VMI-HUB, industrial production management, identification, access management, aero tunnels management,etc.,
Features
☆ Patent design, independent intellectual property rights;
☆ 32 channels of RF channels superior to the industry level;
☆ Based on the Impinj R2000 platform;
☆ Support RSSI value detection;
☆ Adopt standard API interface, provide DEMO and source code, support VC, CS, JAVA and other development routines;
|
Technology parameter
|
|
Working frequency
|
902~928MHz； 865~868 MHz
|
|
Protocol
|
EPC C1 Gen2 ISO18000-6C
|
|
RF power
|
0~33dBm（adjustable）
|
|
Reading distance
|
0~30m (Depend on antenna and environment )
|
|
Read rate
|
＞300times/second
|
|
Flash Power off save
|
1Mbit (Power off save the data, customized)
|
|
Time recording
|
Clock chip records card reading time,customized
|
|
Label detection
|
Support RSSI value detection
|
|

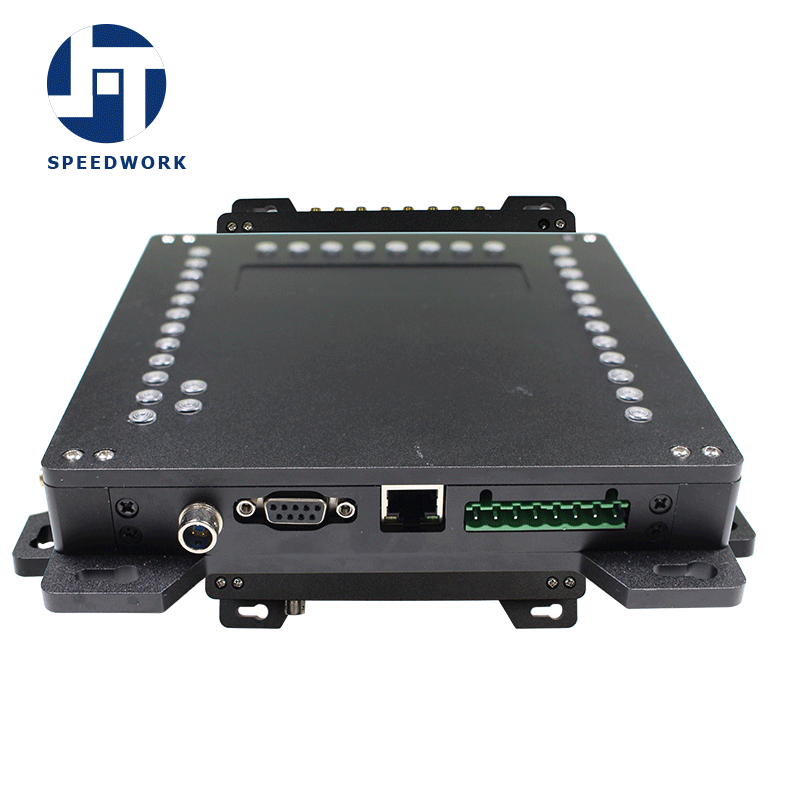

Communication parameters
|
|
RF interface
|
32个SMA outer female connector
|
|
RS232 connector
|
115200 bps (default )
|
|
TCP/IP
|
230400 bps (default)
|
|
I/O interface
|
2 way-road relay output,2 way -road I/O input
|
|
Power parameter
|
|
Equipment power supply
|
12VDC / 3A
|
|
Working power consumption
|
10W（@Maximum output power 33dBm）
|
|
Environmental parameters
|
|
Operating temperature
|
-20℃～55℃
|
|
storage temperature
|
-30℃～80℃
|
|
Storage humidity
|
5%～95%RH No condensation
|
|
Physical parameter
|
|
Size
|
220X176X31mm
|
|
weight
|
about2kg
|
|
material
|
Aluminum alloy
|
I/O Interface definition
|
No
|
Name
|
Description
|
|
1
|
+12V
|
+12V output
|
|
2
|
GND
|
GND ground
|
|
3
|
IN1
|
Optical isolation input 1
|
|
4
|
IN2
|
Optical isolation input 2
|
|
5
|
NC1
|
Relay 1 is always open
|
|
6
|
COM1
|
Relay 1 common
|
|
7
|
NC2
|
Relay 2 normally open
|
|
8
|
COM2
|
Relay 2 common
|
