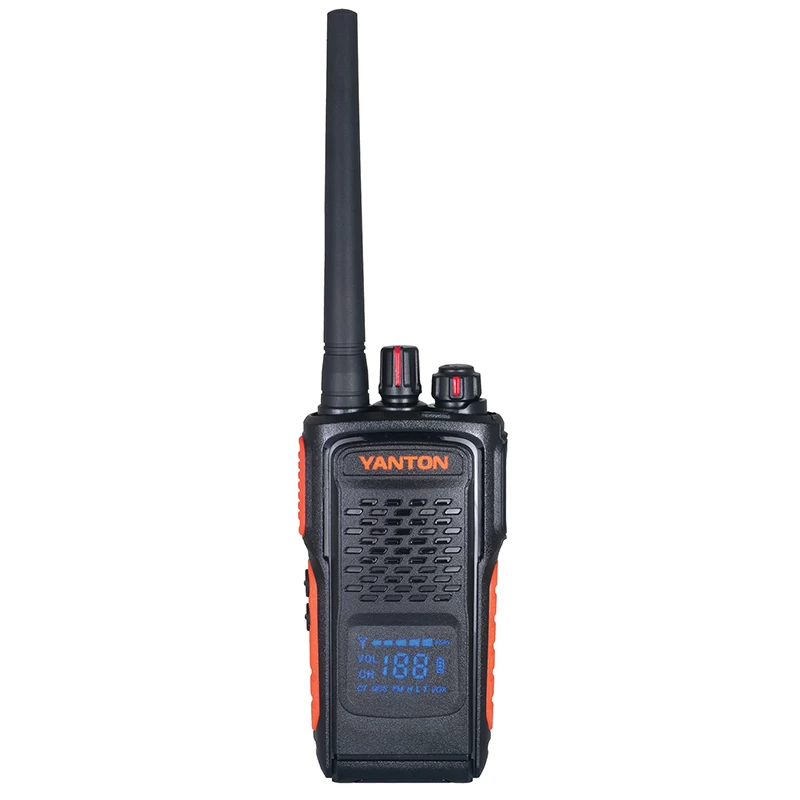

Long Range Radio 5W Walkie Talkie 10KM Range 199Channels
T-329,Long Range 5W Handheld Two Way Radio, is long talk range analog radio. Its robust body and rich features both serve to make it an ideal choice for security workers,construction sites and many more fields of work.
Quick Details
1.Frequency Range: 136-174MHz/400-480MHz
2.199 Memory Channels
3.Hidden Display
4.Beep Setting
5.Reverse Frequency
6.Scan
7.Output Power: 4W
8.VOX Function
9.CTCSS/DCS
10.Chinese and English Voice Prompt
11.Power Saving Function, Low Power Warning
12.High/Low Power Selective 5W/1W
13.Wide/Narrow Bandwidth 12.5KHZ/25KHZ
14.Emergency Alarm
15.Busy Channel Lock
16.Transmitter Time-out Timer(TOT)
17.Side Key Assignment
18.0-9 Grades Squelch Level Setting
19.ANI and DTMF Function
20. 2-tone
21.Remote Kill , Stun, Activate & Revive
22.FM radio (87-108MHZ)
23.1750HZ
24.High Li-ion Battery Capacity:1500Mah
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174MHz/400-480MHz
|
|
Operating
Temperature
|
-20℃to +55℃
|
|
Frequency
Combination
|
please lock frequency synthesize
|
|
Frequency
Stability
|
±2.5ppm
|
|
Memory
Channel
|
199
|
|
Working
voltage
|
7.4v
|
|
Antenna
Impedance
|
50Ω
|
|
Operating
Mode
|
simplex of co-frequency or alien
|
|
Dimensions
|
115*55*30mm
|
|
Weight
|
220g
|
|
TRANSMIT PART
|
|
RF
power
|
4w
|
|
Modulate
Mode
|
F3E
|
|
Max.Freq.Deviation
|
≤5KHz
|
|
Remain
Wave Radiation
|
＜-60dB
|
|
Transmitting
Current
|
≤1000mA
|
|
RECEIVER PART
|
|
Sensitivity
|
＜0.20uV (12dB SINAD)
|
|
Squeich
Sensitivity
|
＜0.20uV
|
|
Intermodulation
Antijamming
|
50dB
|
|
Audio
Power output
|
500mW
|
|
Receiving
Current
|
≤100mA
|
|
Squelch
Stangby
|
20mA
|
Long Range 5W Handheld Two Way Radio
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
