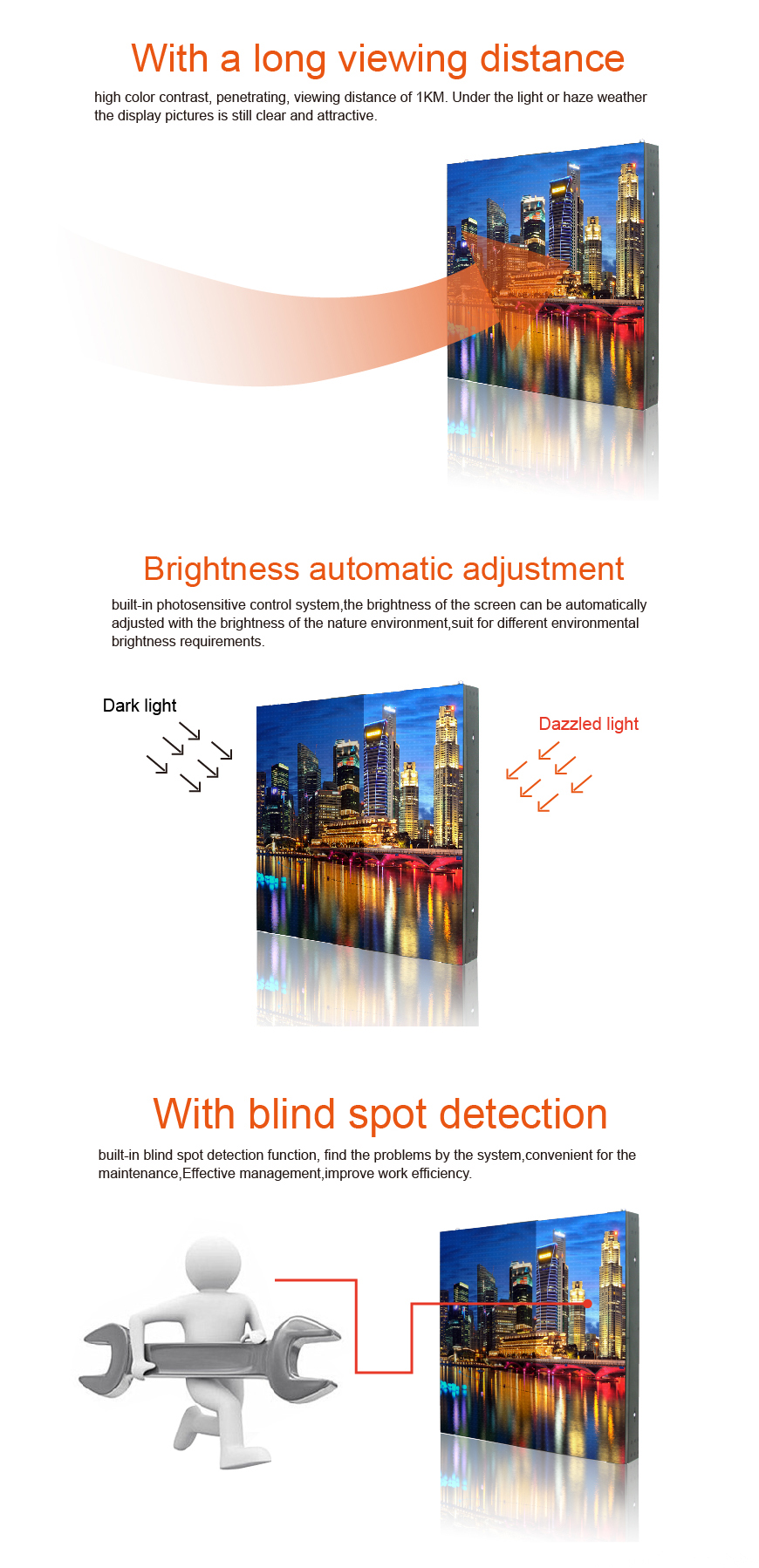

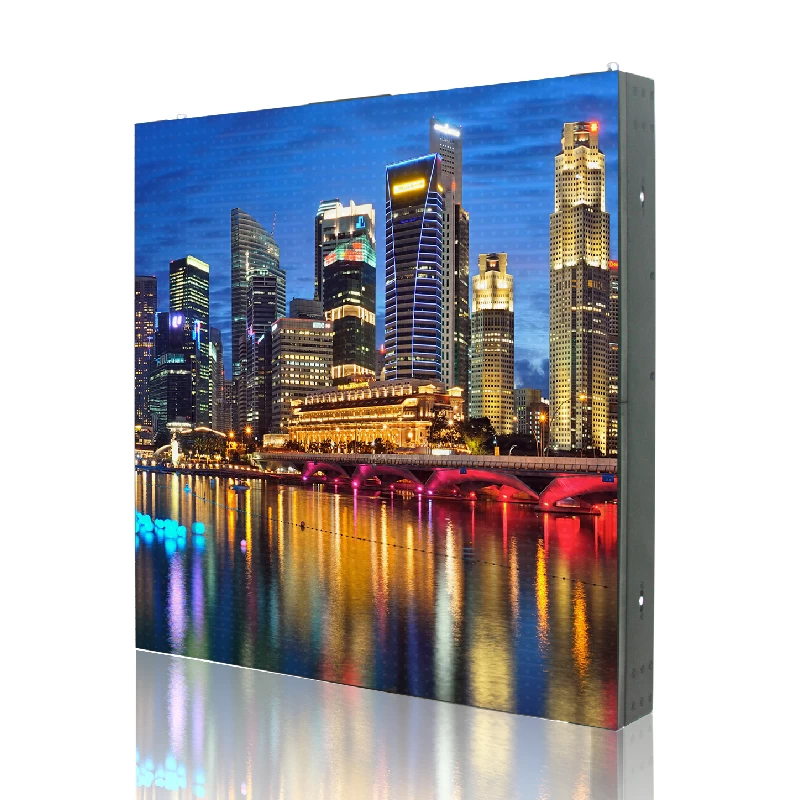

Long Viewing Distance P12 Transportation LED Signage with Blind Spot Detection
1. With waterproof design, IP65 rating suits for outdoor own better waterproof effect. Inside lightning protection device protect screen from destroy from thunder.
2. Double backups of led screen video control system, smoothly respond to system damage problem. Use modules design of all spare parts, convenient for after-sales maintenance.
3. According to customer's request and real installation environment make the best led screen solution.
SPECS
Pixel Pitch
|
12mm
|
LED Package
|
DIP346
|
Pixel Density
|
6,944 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 6500cd/㎡ @ white color
|
Refresh Rate
|
Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
320x160mm
|
Cabinet Size
|
960x960mm
|
Cabinet Material
|
Iron
|
Viewing Distance
|
12-100M
|
Drive Mode
|
1/4 scan
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
