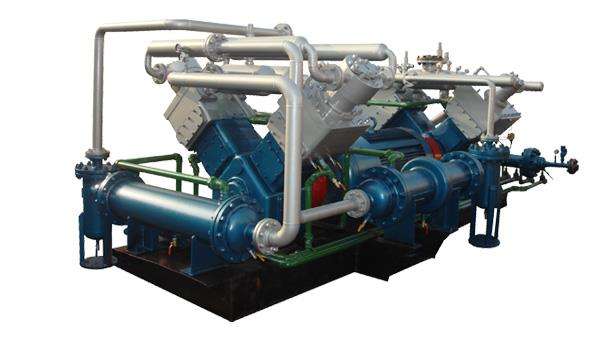

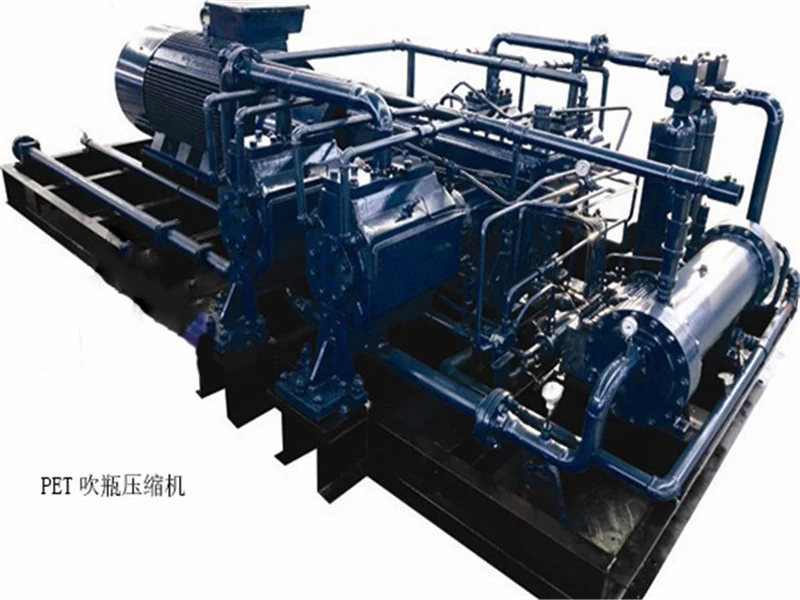

Longhua Oil-free PET Blowing Bottle Compressor
Product usage and features：
Product features:
· low exhaust temperature and low speed of w-type oil-free compressor
· perfect control system can truly realize unattended and ensure all-weather continuity
Work：
· frequency conversion adjustment and remote monitoring
· direct connection and water cooling are featured by low noise, small vibration, high reliability and simple operation
· various technical performance indexes, such as efficiency, service life and fuel consumption, have reached the international level
Enterprise information:
Bengbu longhua has a complete range of products with strong design, production, manufacturing and marketing strength. The products can be used in CNG gas station series compressors, oil and gas field series compressors, medium-high pressure series compressors, special gas series compressors, chemical process series compressors and power series compressors. Product parameters: exhaust volume from 0.05-200m3/min, exhaust pressure from 0.1-50mpa, compressible air, nitrogen, liquefied petroleum gas, gas, natural gas, carbon dioxide, propane, hydrogen, helium, ethylene, ammonia and other different media. Widely used in natural gas filling stations, urban construction, gas fields, petroleum, national defense, coal, geology, chemical industry, metallurgy, machinery manufacturing, medicine, food, beverage and other fields.
Parameter：
|
Model
|
Voiume
Flow
|
Intake pressure
|
Discharge
pressure
|
Cooling
Method
|
Drving
Power
|
Overall Dimension
|
Weight
|
|
|
m3/min
|
MPa
|
MPa
|
|
kw
|
mm x mm x mm
|
T
|
|
VW-2/30
|
2
|
ordinary pressure
|
3
|
water-cooling
|
30kW
|
2160×1750×1380
|
2.5
|
|
VW-2/35
|
2
|
ordinary pressure
|
3.5
|
water-cooling
|
30kW
|
2160×1750×1380
|
2.5
|
|
VW-2.5/30
|
2.5
|
ordinary pressure
|
3
|
water-cooling
|
30kW
|
2160×1750×1380
|
2.5
|
|
VW-3/25
|
3
|
ordinary pressure
|
2.5
|
water-cooling
|
37kW
|
2310×1900×1380
|
2.5
|
|
VW-3/30
|
3
|
ordinary pressure
|
3
|
water-cooling
|
37kW
|
2310×1900×1380
|
2.5
|
|
VW-3/35
|
3
|
ordinary pressure
|
3.5
|
water-cooling
|
37kW
|
2310×1900×1380
|
2.5
|
|
VW-3/40
|
3
|
ordinary pressure
|
4
|
water-cooling
|
37kW
|
2310×1900×1380
|
2.5
|
|
VW-3/60
|
3
|
ordinary pressure
|
6
|
water-cooling
|
45kW
|
2350×1900×1380
|
2.5
|
|
VW-4/30
|
4
|
ordinary pressure
|
3
|
water-cooling
|
45kW
|
2350×1900×1380
|
3
|
|
VW-4/40
|
4
|
ordinary pressure
|
4
|
water-cooling
|
55kW
|
2350×1900×1380
|
3
|
|
VW-4/60
|
4
|
ordinary pressure
|
6
|
water-cooling
|
55kW
|
2350×1900×1380
|
3
|
|
VW-5/30
|
5
|
ordinary pressure
|
3
|
water-cooling
|
55kW
|
2750×2000×1700
|
3
|
|
VW-5/40
|
5
|
ordinary pressure
|
4
|
water-cooling
|
65kW
|
2750×2000×1700
|
3
|
|
VW-6/30
|
6
|
ordinary pressure
|
6
|
water-cooling
|
75kW
|
2750×2000×1800
|
3.5
|
|
VW-6/35
|
6
|
ordinary pressure
|
3.5
|
water-cooling
|
75kW
|
2750×2000×1800
|
3.5
|
|
VW-6/40
|
6
|
ordinary pressure
|
4
|
water-cooling
|
75kW
|
2750×2000×1800
|
3.5
|
|
VW-6/50
|
6
|
ordinary pressure
|
5
|
water-cooling
|
90kW
|
2750×2000×1800
|
3.5
|
|
VW-7/30
|
7
|
ordinary pressure
|
3
|
water-cooling
|
75kW
|
2860×2000×1800
|
3.5
|
|
VW-7/40
|
7
|
ordinary pressure
|
4
|
water-cooling
|
90kW
|
2860×2000×1800
|
3.5
|
|
VW-7.5/60
|
7.5
|
ordinary pressure
|
6
|
water-cooling
|
110kW
|
2860×2000×1800
|
4
|
|
VW-8/30
|
8
|
ordinary pressure
|
3
|
water-cooling
|
90kW
|
2860×2000×1800
|
4
|
|
VW-8/40
|
8
|
ordinary pressure
|
4
|
water-cooling
|
90kW
|
2860×2000×1800
|
4
|
|
VW-8/50
|
8
|
ordinary pressure
|
5
|
water-cooling
|
110kW
|
2860×2000×1800
|
4
|
|
VW-8/60
|
8
|
ordinary pressure
|
6
|
water-cooling
|
110kW
|
2860×2000×1800
|
4
|
|
VW-10/25
|
10
|
ordinary pressure
|
2.5
|
water-cooling
|
110kW
|
2860×2000×1800
|
4
|
|
VW-10/30
|
10
|
ordinary pressure
|
3
|
water-cooling
|
132kW
|
2860×2000×1800
|
4
|
|
VW-10/40
|
10
|
ordinary pressure
|
4
|
water-cooling
|
132kW
|
2860×2000×1800
|
4
|
Dear customers, please provide detailed technical data, we provide you with the correct compressor selection program
|
Compression medium
|
Required delivery
(Nm3/h)
|
Inlet pressure
(Mpa)
|
Outlet pressure
(Mpa)
|
Inlet temperature
(℃)
|
Outlet temperature
(℃)
|
Other
|
