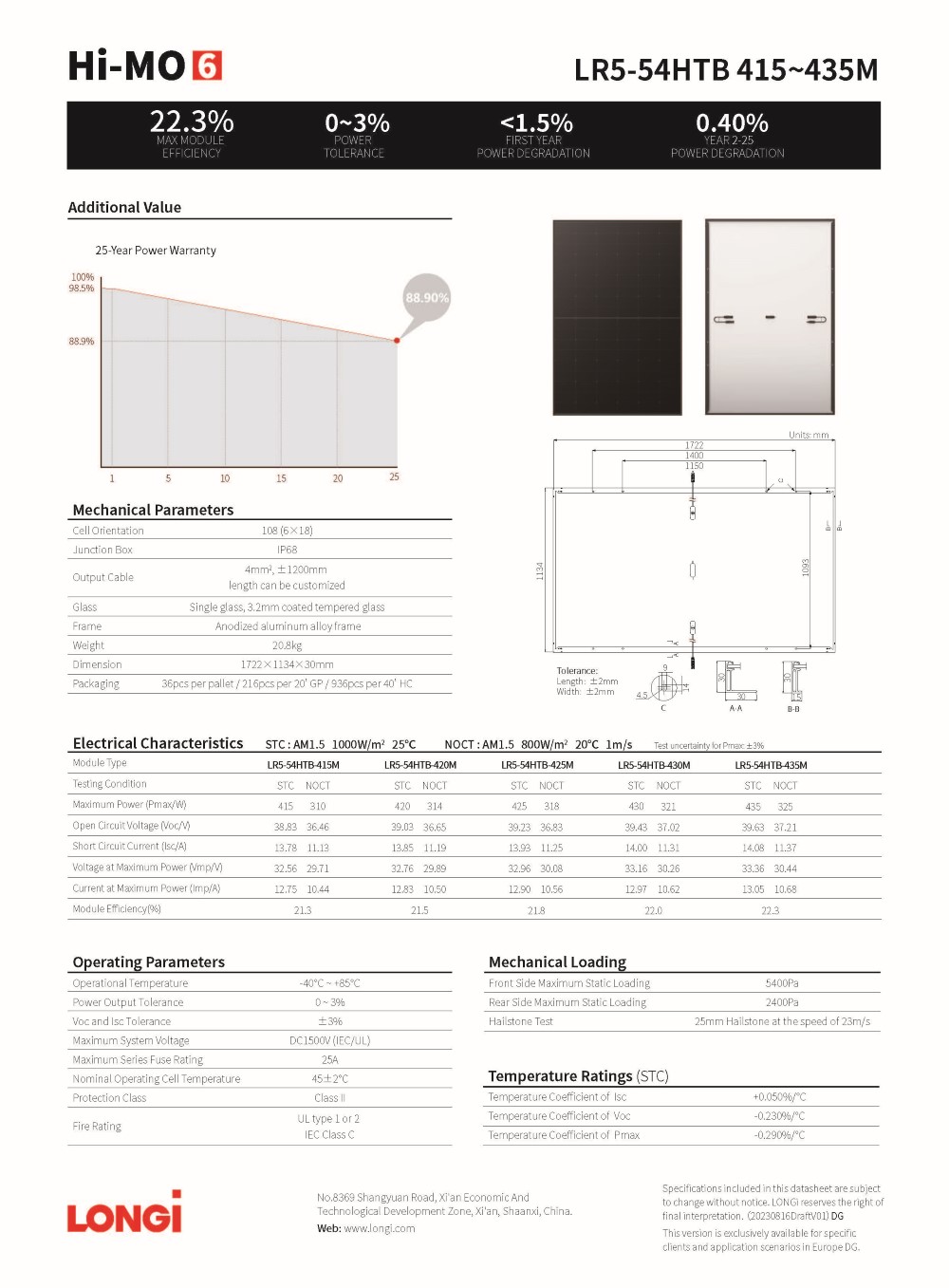

Product Characteristics
| Model No. |
|
| Warranty |
|
| Product Warranty |
15 Years |
| Power Warranty |
25 Years of 88.9% Output Power |
| Electrical Data at STC |
|
| Maximum Power (Pmax) |
420Wp |
| Voltage at Maximum Power (Vmpp) |
32.76V
|
| Current at Maximum Power (Impp) |
12.83A
|
| Open Circuit Voltage (Voc) |
39.03 V
|
| Short Circuit Current (Isc) |
13.85 A
|
| Panel Efficiency |
21.5 %
|
| Power Tolerance (Positive) |
+ 3 %
|
| |
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C |
| Electrical Data at NOCT |
|
| Maximum Power (Pmax) |
314 Wp
|
| Voltage at Maximum Power (Vmpp) |
29.89 V
|
| Current at Maximum Power (Impp) |
10.5 A
|
| Open Circuit Voltage (Voc) |
36.65 V
|
| Short Circuit Current (Isc) |
11.19 A
|
| Temperature |
45±2 °C |
| |
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C |
| Thermal Ratings |
|
| Operating Temperature Range |
-40~85 °C |
| Temperature Coefficient of Pmax |
-0.29 %/°C |
| Temperature Coefficient of Voc |
-0.23 %/°C |
| Temperature Coefficient of Isc |
0.05 %/°C |
| Maximum Ratings |
|
| Maximum System Voltage |
1500 V |
| Series Fuse Rating |
25 A |
| Material Data |
|
| Panel Dimension (H/W/D) |
1722x1134x30 mm |
| Weight |
20.8 kg |
| Cell Type |
Monocrystalline |
| Cell Number |
108 |
| Glass Type |
Tempered |
| Glass Thickness |
3.2 mm |
| Frame Type |
Anodized Aluminium, Black |
| Junction Box Diodes |
3 |
| Junction Box Protection Class |
IP 68 |
| Cable Crossection |
4 mm2 |
| Cable Length |
1200 mm |

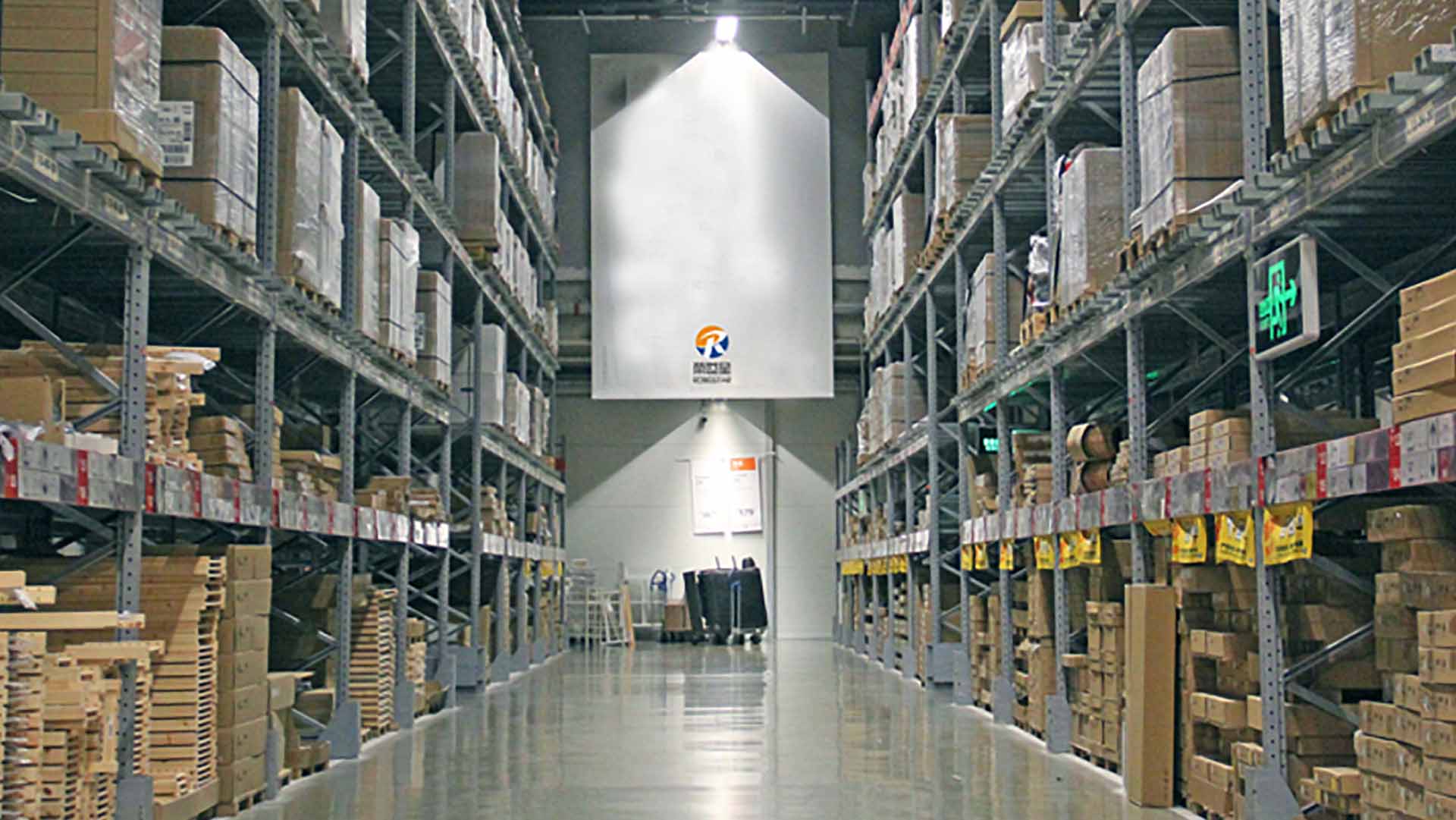

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
