Product Introduction
Longmen High Efficiency Multi-Slice Stone Cutter is mainly used for processing large quantities of standard stone materials. It is the most ideal stone machine tool for cutting block stone and pavement stone with different thickness of saw blade partition plate.
This machine adopts multi-chip stone cutting machine adopts gantry structure and split structure, users only need to choose different structure models flexibly according to their own site conditions, the machine action is controlled by electric control box, high degree of automation, stable overall processing performance, high precision, high efficiency, low energy consumption characteristics, deeply favored by users.
Technical Parameters
|

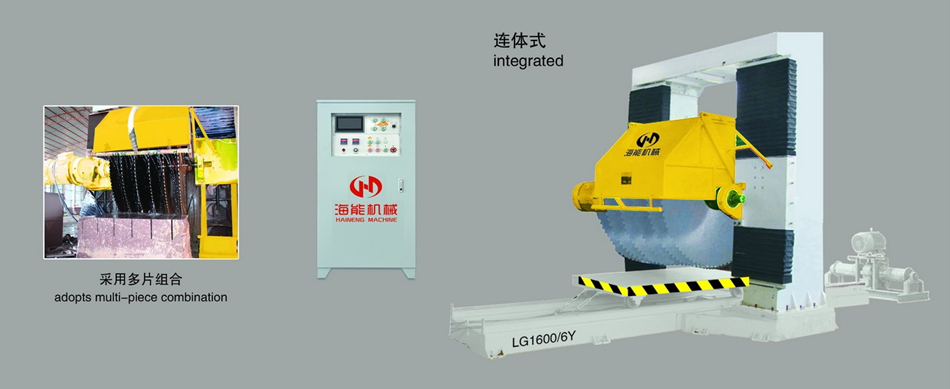

Longmen High Efficiency Multi-Slice Stone Cutter
|
|
Type
|
unit
|

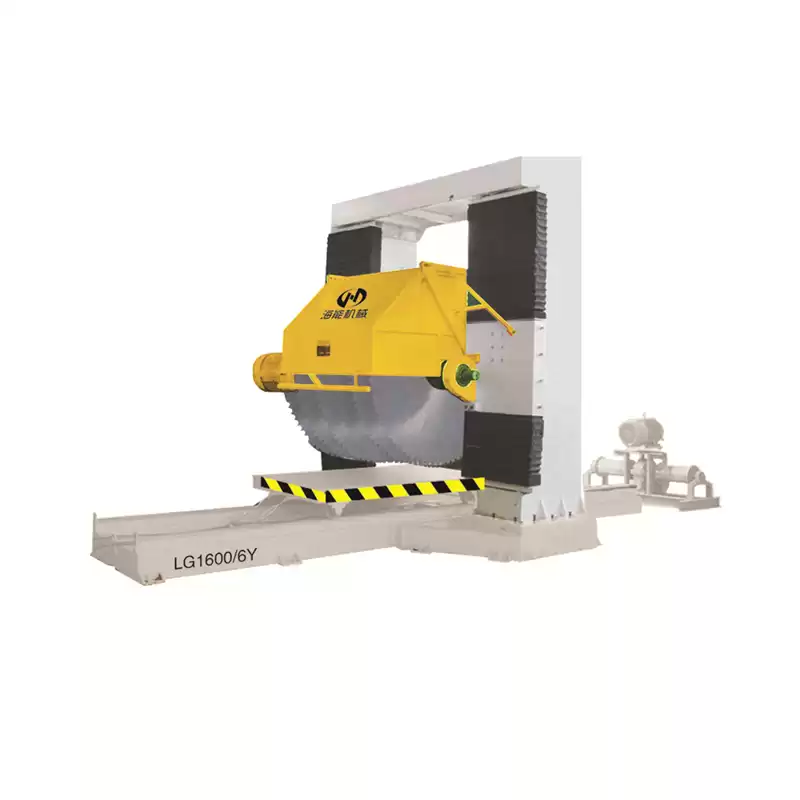

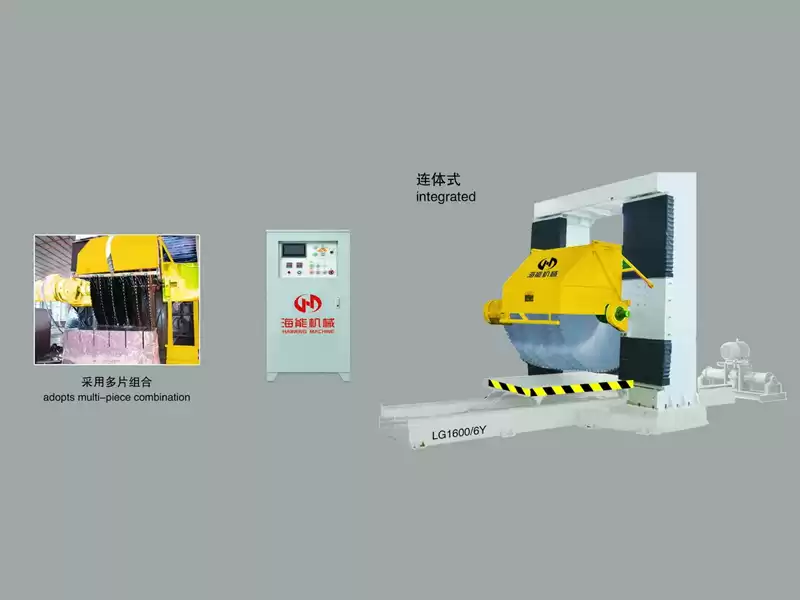

LG1600/6Y(Integrated)
|

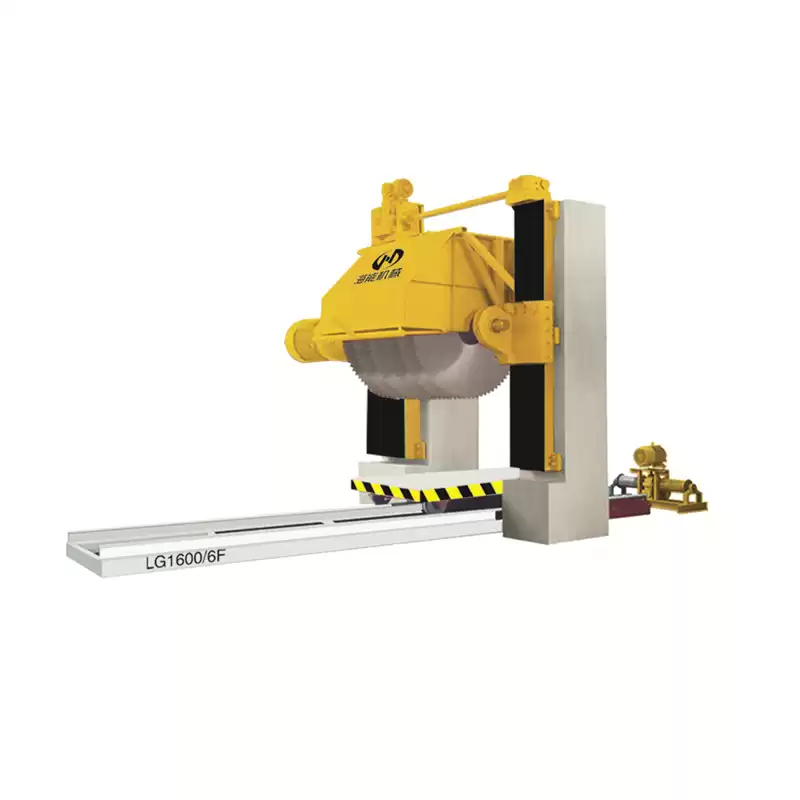

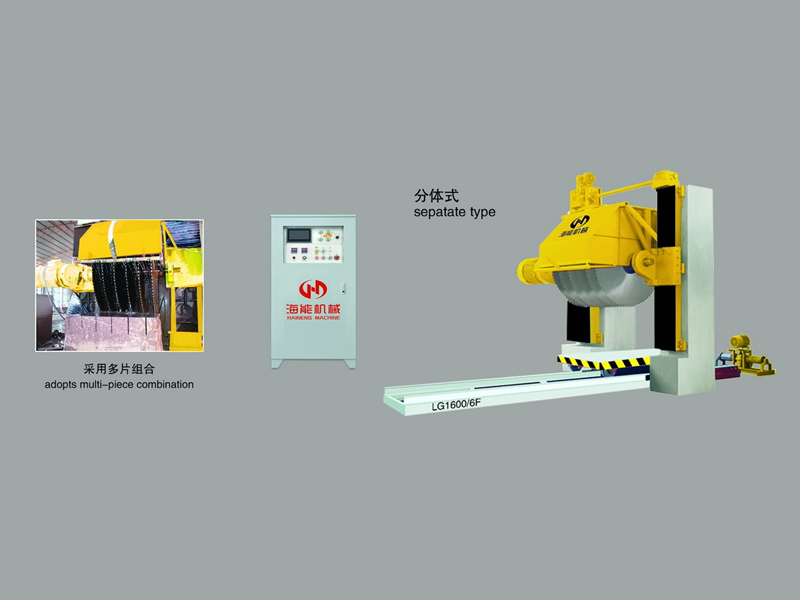

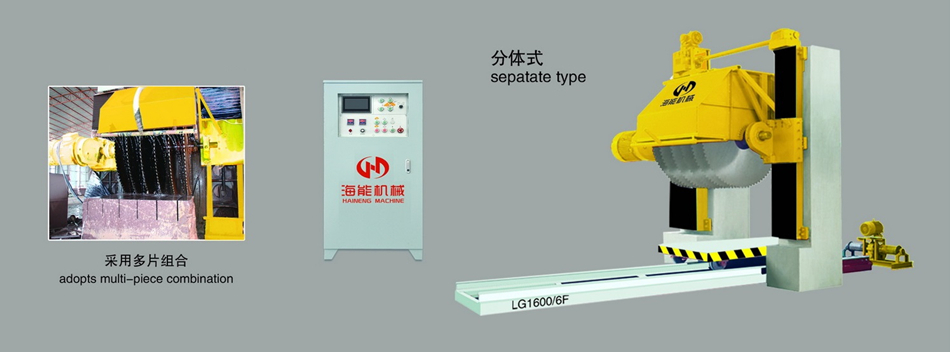

LG1600/6F(Separate type)
|
|
Blade diameter
|
mm
|
Φ1400-Φ1600
|
Φ1400-Φ1600
|
|
Max. cutting length
|
mm
|
2000
|
2000
|
|
Max. cutting width
|
mm
|
1100
|
1100
|
|
Max. cutting thickness
|
mm
|
630
|
630
|
|
Main motor power
|
kw
|
45
|
45
|
|
Total power
|
kw
|
48.9
|
48.9
|
|
Water consumption
|
m³/h
|
5.2
|
5.2
|
|
Dimension (L×W×H)
|
mm
|
8000×2900×3050
|
8000×2900×3050
|
|
Total weight
|
kg
|
7600
|
3600
|
