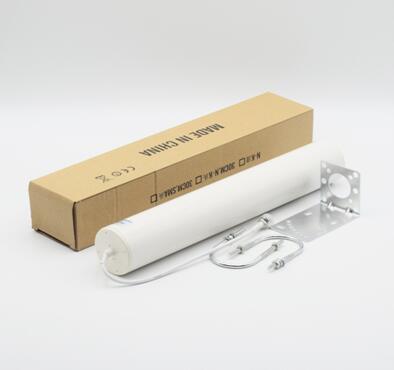

LoRaWAN Industrial Rugged Gateway antenna

4G IOT 10dbi omni antenna

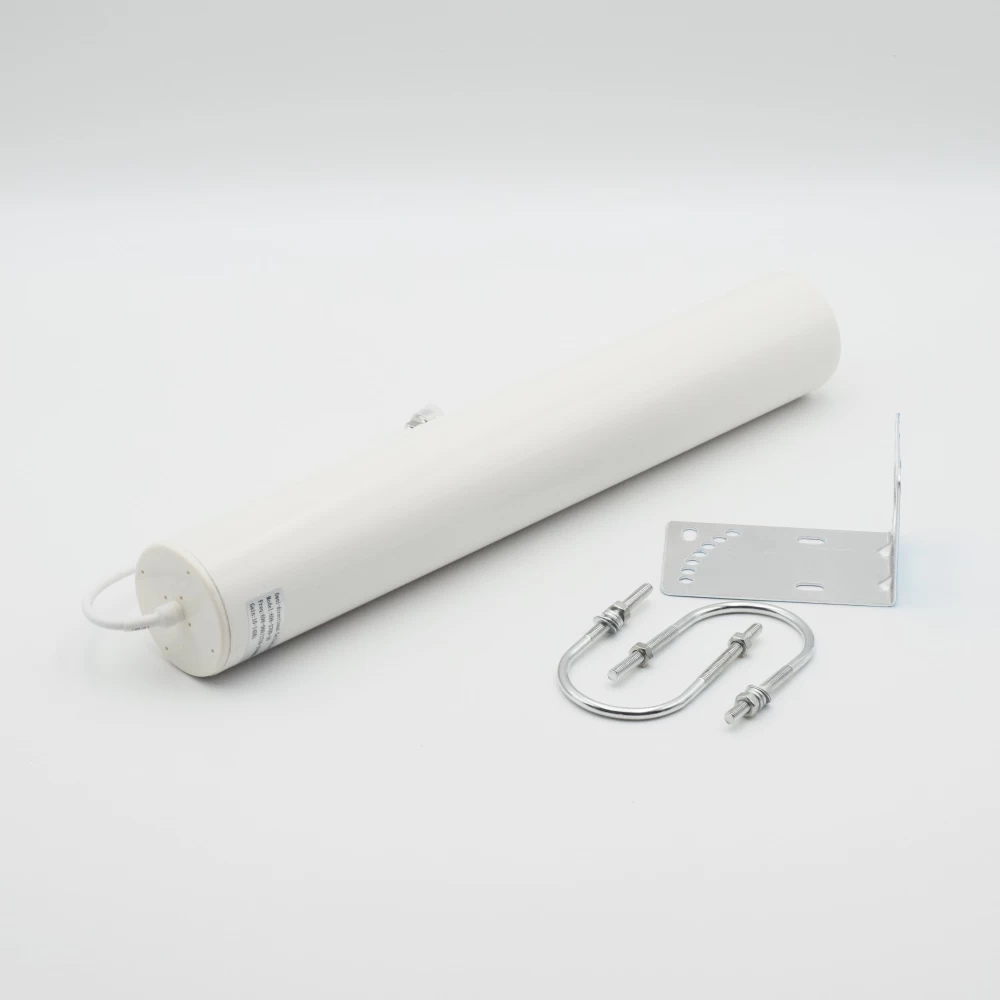

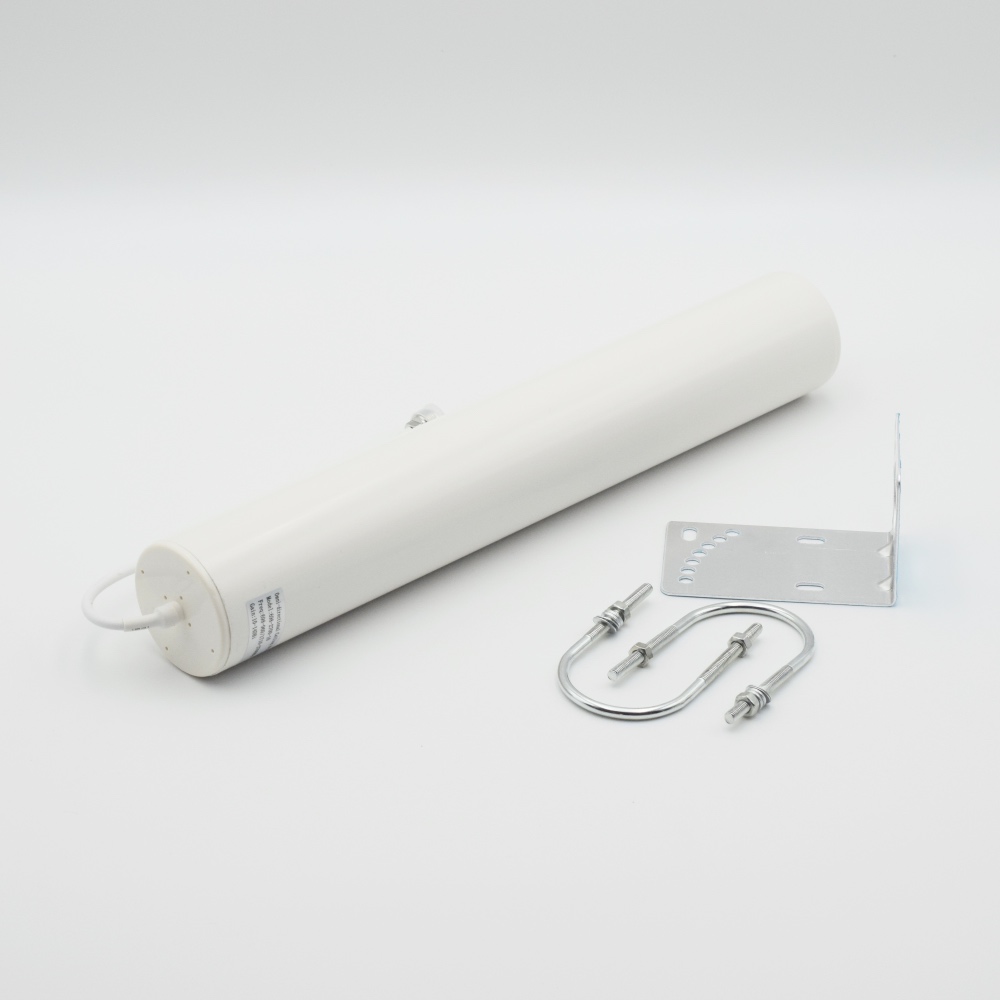

IP67 waterproof U bolt mounting antenna IOT antenna outdoor IOT antenna



FreqRange:700-960/1710-2700MHz

Gain:10dBi

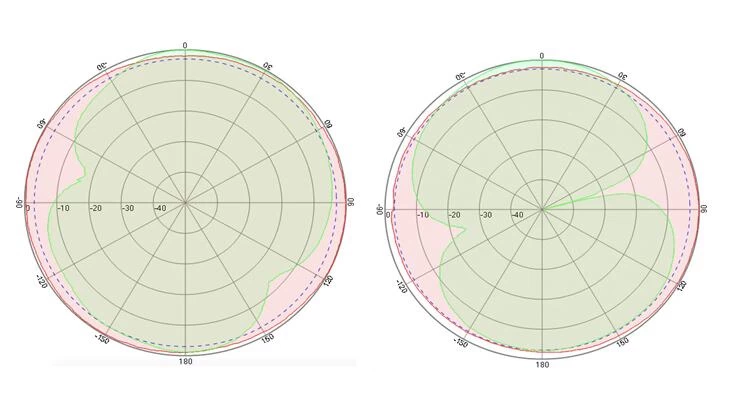

Half-power angle:H 360°/ E85°

Vertical Beamwidth:70±3º

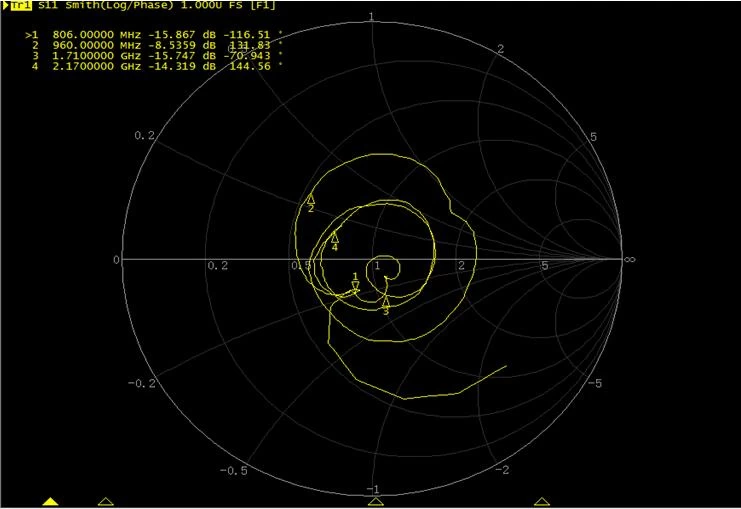

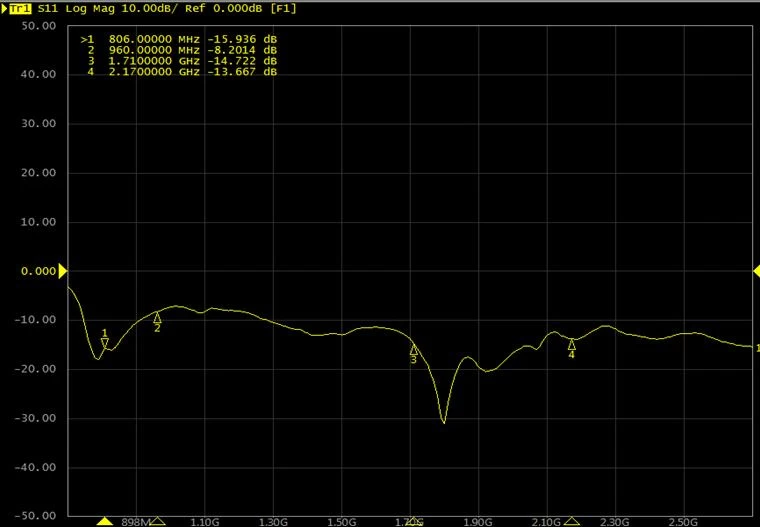

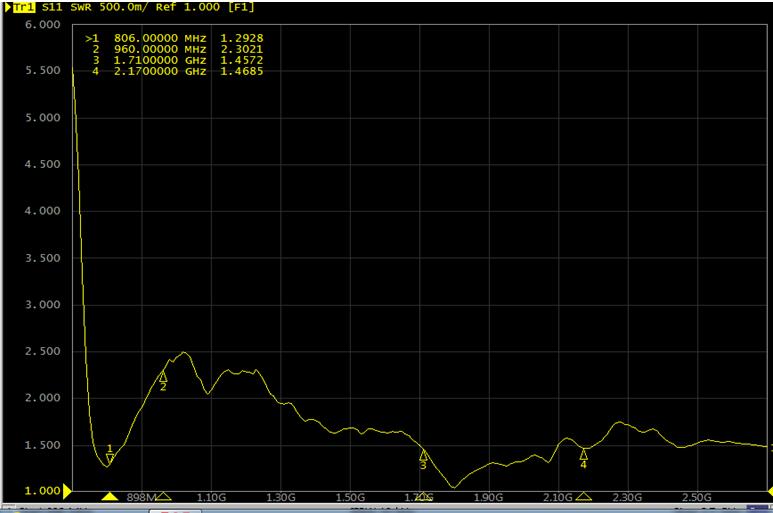

VSWR:≤1.5

ovality:≤2dB

Impedance:50Ω

Polarization:vertical

Max. Power:50W

Lightning Protection:DC ground

Connector:N female/male
