We are ISO9001 certification factory, our company has produced transformers for many years, such as high frequency transformers, toroidal transformers, current transformers, large/high current transformers, R type single phase transformers, filter indutors, etc. Our production is increasing every year, transformer design basically meet all global safety standards. We have experienced sales team and engineers, we can design the various transformers according to customer's need.
Our R-type transformers widely used in monitors, printers, computer terminals, copiers, hi-fi loudspeakers, fax machines, satellite radio receivers, measuring and testing. With the R-type transformers will make your quality and efficiency greatly improved. If you need customized transformers ,you can send the specification to us, we can design and send samples for the testing.
Quick Details
|
Part No: R Type Transformer Series
|
|
Brand name: MCT
|
|
High dielectric strength, flame retardant
|
|
Custom made: Available
|
|
Power(VA): 6- 2000
|
|
Logo: Can be customized
|
|
High insulation performance
|
|
Packing: Carton,can custom
|
|
Small resistance, loss low temperature
|
|
OEM: Available
|
|
Certification: ISO9001,ROHS,CE
|
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
|
MOQ: Any quantity
|
Part Information

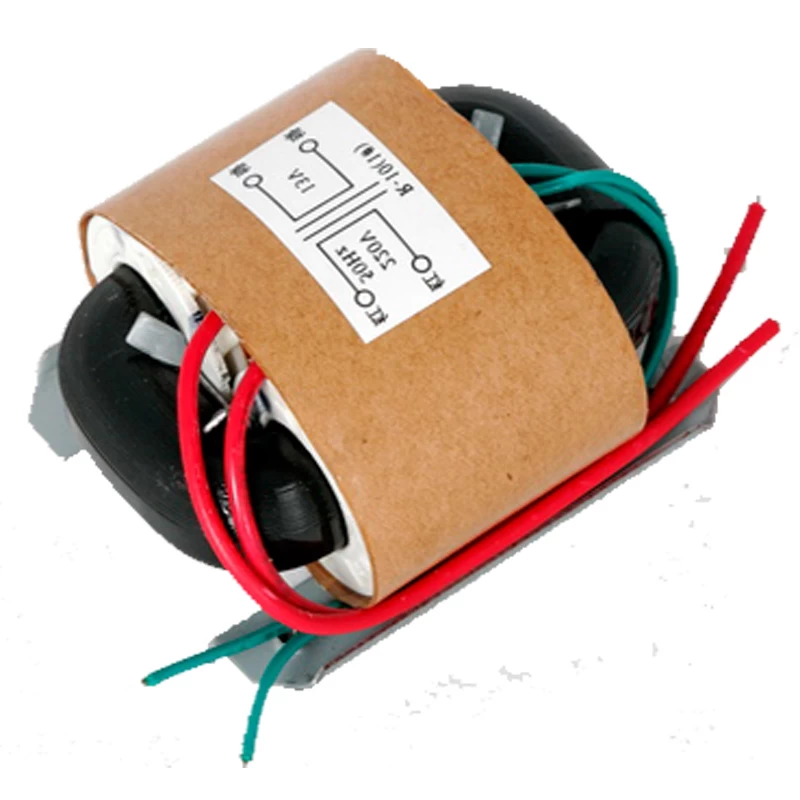

Product Name: Low Frequency R Type Transformer Single Phase Power Transformer
Product Benefits: Higher reliability, high insulation performance, easy installation. R-type transformers will not produce noise, this feature is far better than EI type transformer core gap or cut-shaped core transformer.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Company advantages: We have quality control department, strict quality control links, all transformers we produced are double tested.

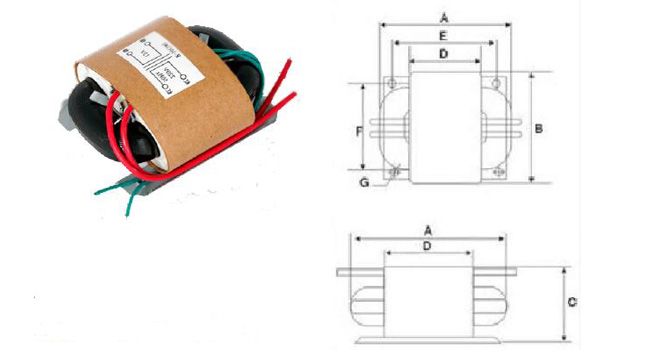

Product Specifications
|
MCT P\N
|
Power(VA)
|
A （Lt）
|
B（Wd）
|
C（Ht）
|
D
|
E
|
F
|
G
|
Weight(Kg）
|
|
MCT-R-5
|
6
|
59
|
50
|
27
|
35
|
45
|
35
|
Φ4
|
0.2
|
|
MCT-R-8
|
8~10
|
69
|
60
|
35
|
38
|
53
|
44
|
Φ4
|
0.3
|
|
MCT-R-10
|
15
|
75
|
63
|
37
|
42
|
55
|
45
|
Φ4
|
0.4
|
|
MCT-R-20
|
20~28
|
80
|
70
|
39
|
44
|
70
|
55
|
Φ4
|
0.5
|
|
MCT-R-25
|
25~30
|
82
|
72
|
42
|
45
|
70
|
55
|
Φ4
|
0.6
|
|
MCT-R-30
|
30~40
|
95
|
76
|
42
|
56
|
70
|
60
|
Φ5
|
0.7
|
|
MCT-R-35
|
45~60
|
97
|
79
|
46
|
57
|
70
|
60
|
Φ5
|
0.9
|
|
MCT-R-40
|
35~55
|
97
|
81
|
44
|
54
|
70
|
60
|
Φ5
|
0.9
|
|
MCT-R-50
|
50~65
|
98
|
88
|
48
|
54
|
75
|
65
|
Φ5
|
1
|
|
MCT-R-65
|
90
|
105
|
90
|
51
|
58
|
90
|
60
|
Φ5
|
1.2
|
|
MCT-R-80
|
70~100
|
122
|
91
|
52
|
75
|
90
|
70
|
Φ5
|
1.4
|
|
MCT-R-100
|
90~130
|
124
|
103
|
55
|
72
|
100
|
80
|
Φ5
|
1.7
|
|
MCT-R-160
|
150~200
|
136
|
112
|
63
|
82
|
100
|
85
|
Φ5
|
2.6
|
|
MCT-R-260
|
200~300
|
149
|
119
|
66
|
90
|
130
|
95
|
Φ5
|
3.1
|
|
MCT-R-320
|
280~380
|
159
|
130
|
70
|
97
|
135
|
95
|
Φ6
|
3.8
|
|
MCT-R-600
|
380~620
|
177
|
143
|
85
|
103
|
145
|
115
|
Φ6
|
6.5
|
|
MCT-R-800
|
950
|
194
|
171
|
95
|
108
|
145
|
115
|
Φ6
|
8.2
|
|
MCT-R-1000
|
650~1200
|
214
|
172
|
100
|
127
|
180
|
140
|
Φ10
|
10.5
|
|
MCT-R-1500
|
1200~1500
|
228
|
190
|
95
|
126
|
190
|
152
|
Φ16*14
|
13
|
|
MCT-R-2000
|
1500~2000
|
236
|
190
|
100
|
126
|
190
|
152
|
Φ16*14
|
15.2
|
