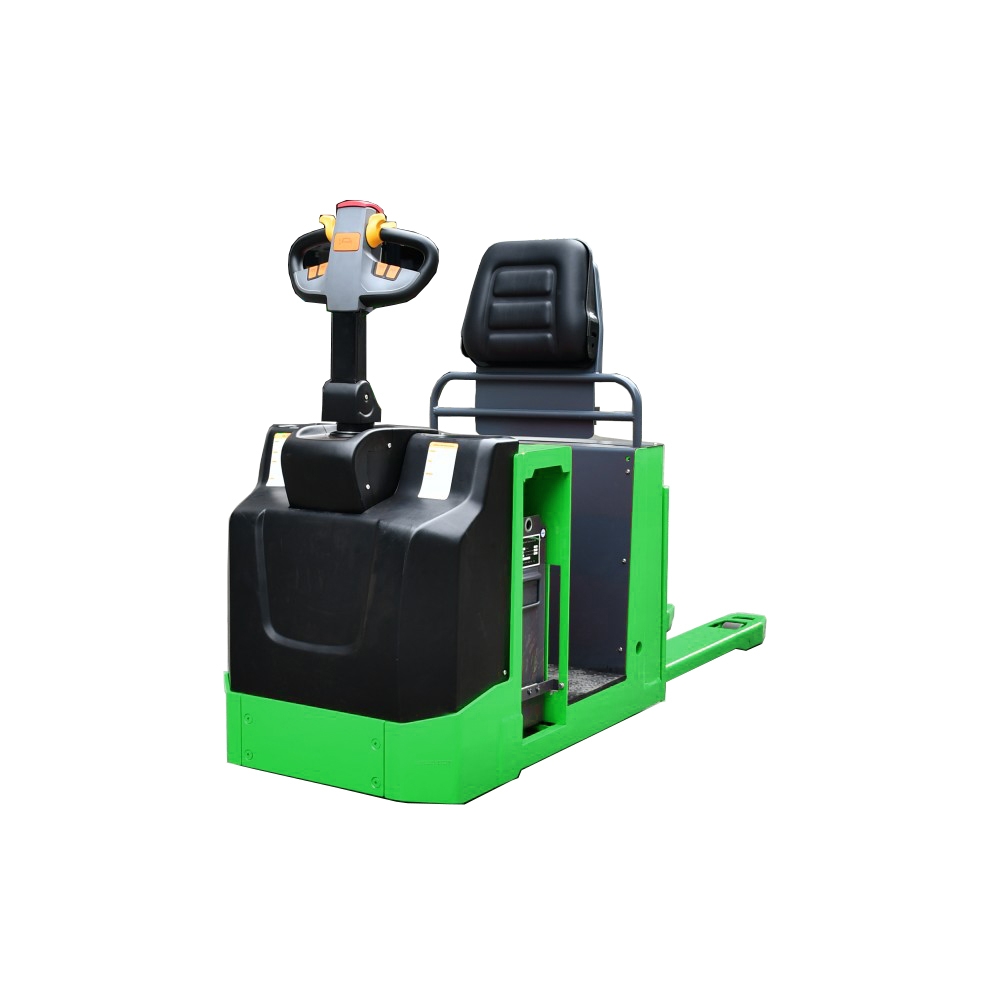

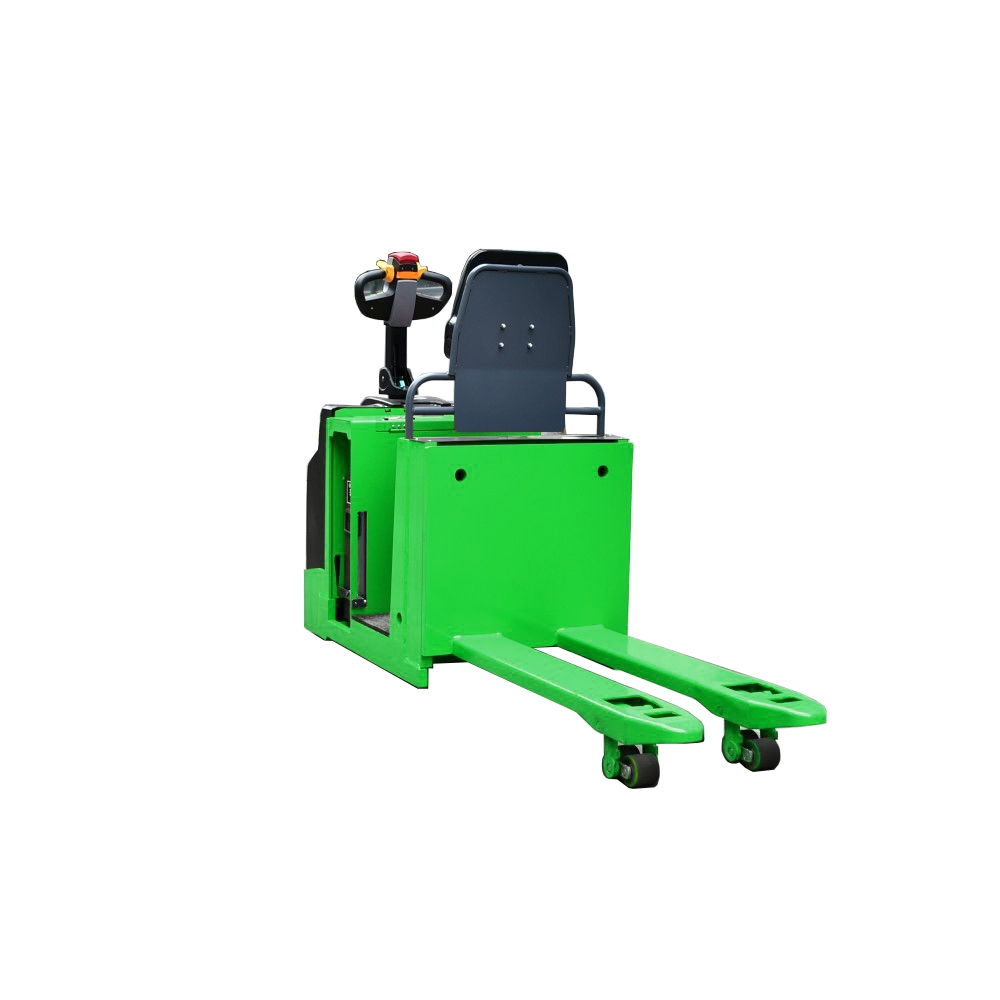

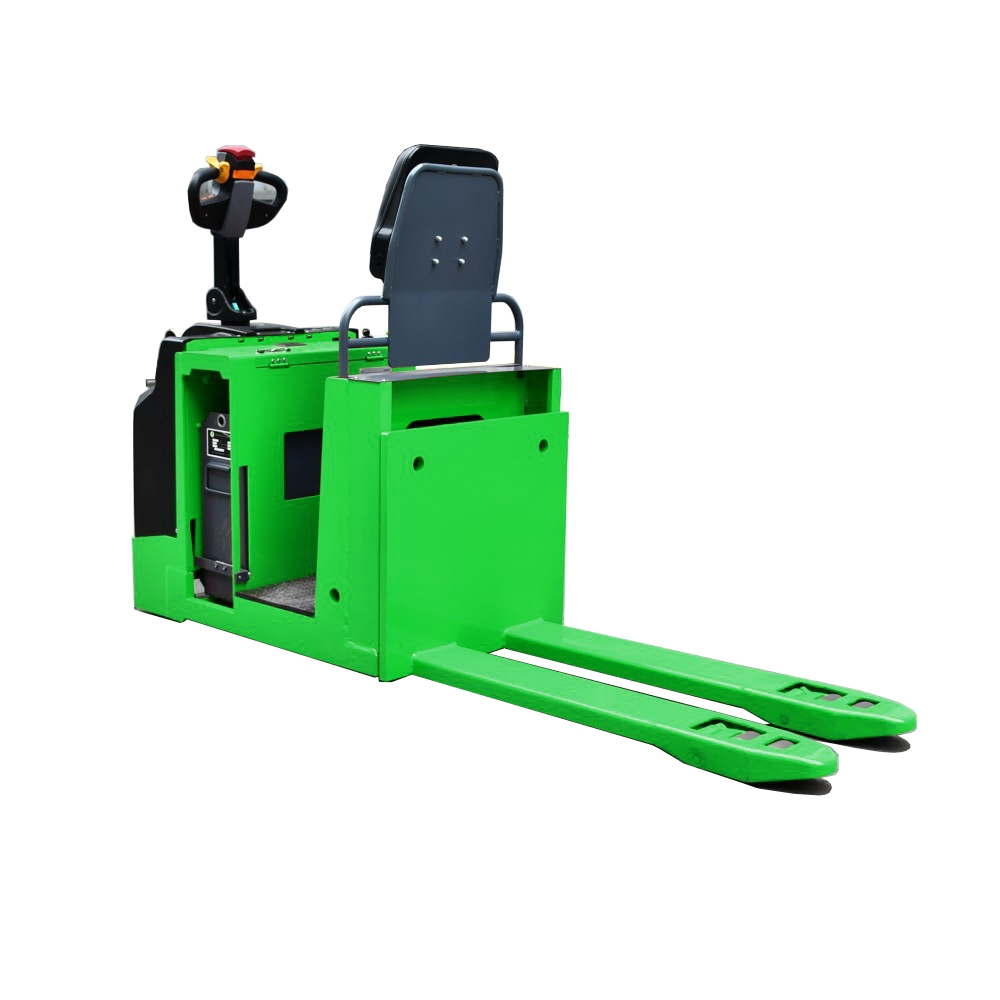

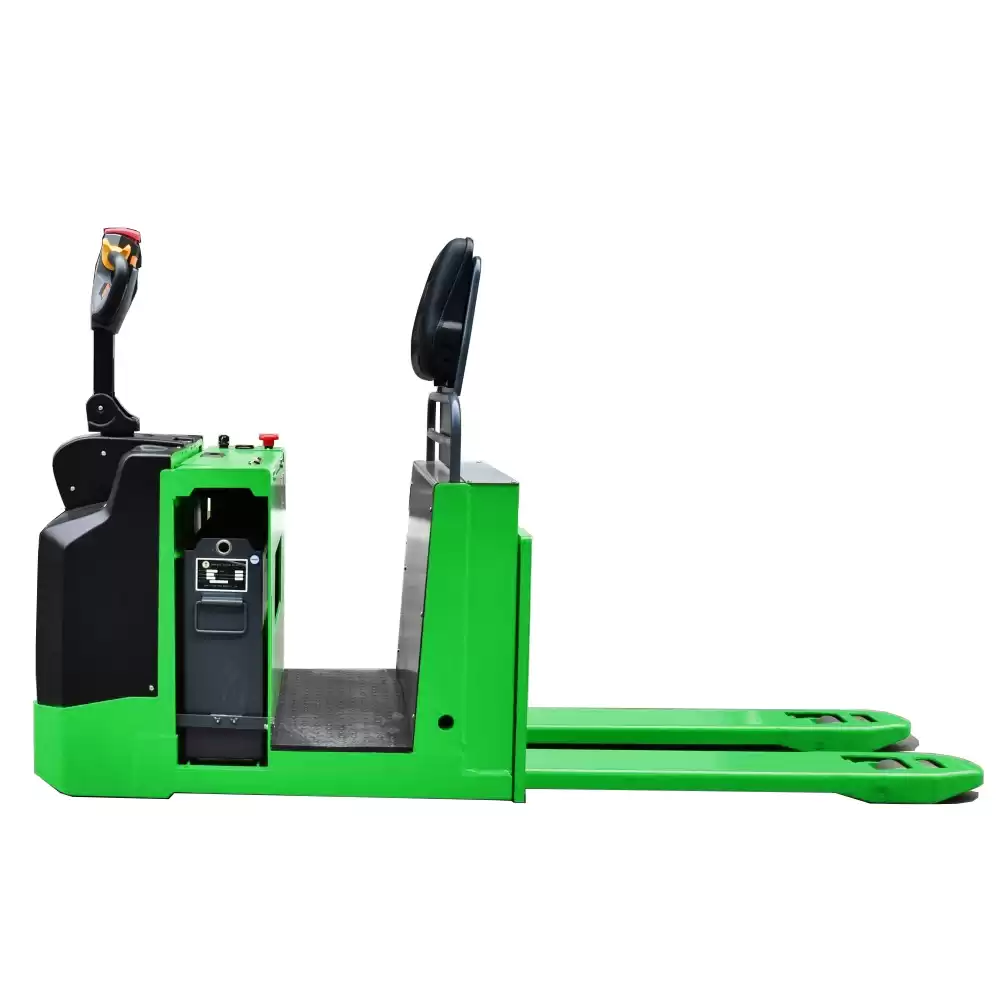

Low level standing type electric order picker
The maximum load of the stand on low level order picker is 2.0 tons. Standard Curtis controller, large-capacity lead-acid battery, lithium battery is optional. It is suitable for low-level picking and handling of medium and long-distance goods, mainly used in supermarkets, hardware warehouses, food workshops, etc.
Features:
1. With the unique floating suspension system, the driving wheels are always on the ground, with good grip and no slippage, and the forklift has excellent stability;
2. Standard turning speed limit function;
3. The standard CURTIS controller is reliable and durable; the AMP waterproof and dustproof plug-in provides reliable protection for the circuit and greatly reduces electrical failures;
4. Electromagnetic brake, automatic brake when power off;
5. The mechanical structure of the whole vehicle is solid, and the key parts are made of high-strength steel plates, which are reinforced and durable.

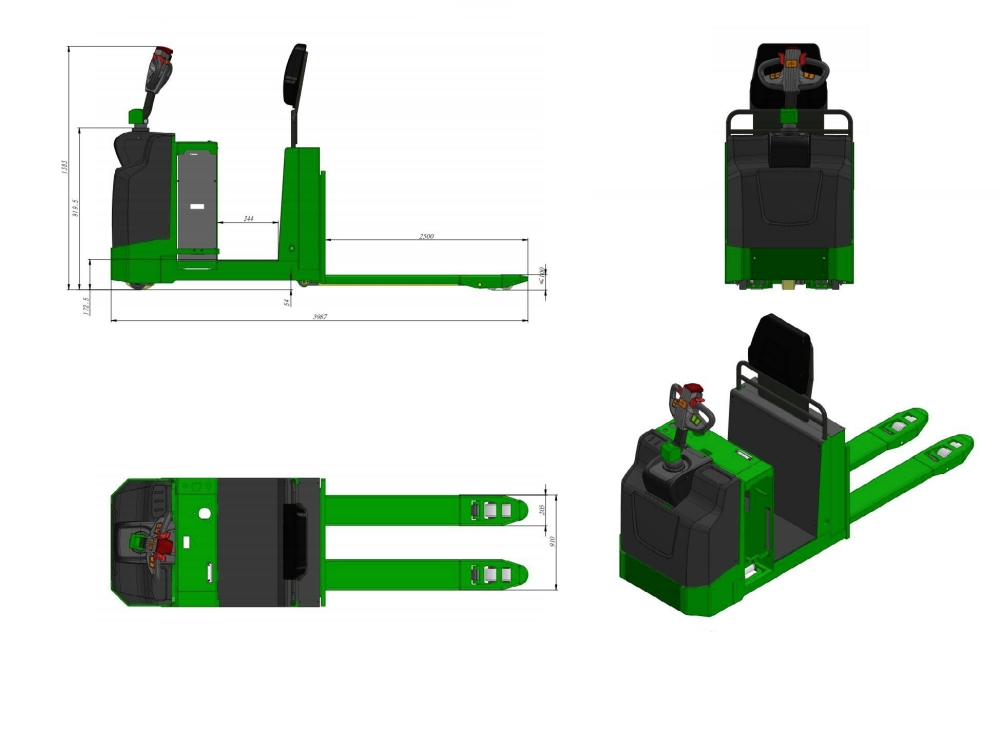

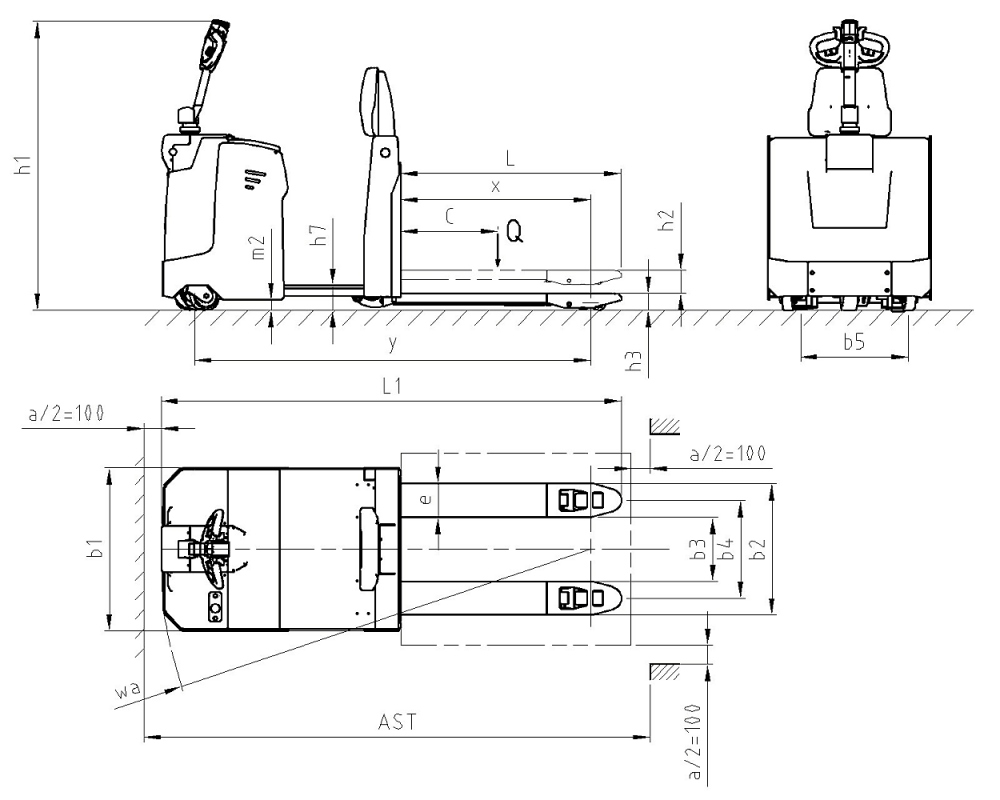

Specification:
| |
| |
Model |
|
NOPL |
|
| Power type |
|
Battery |
| Loading capacity |
kg |
2000 |
| Loading center |
mm |
600 |
| Overall height |
mm |
1507 |
| Lift height |
mm |
195 |
| Overall length |
mm |
2400 |
| Overall width |
mm |
850 |
| Fork size |
l/e/s(mm) |
1150/175/75 |
| Fork outside width |
mm |
685 |
| Aisle(1000*1200mm pallet size) |
Ast(mm) |
3050 |
| Turning radius |
Wa(mm) |
2250 |
| Driving motor power(S2 60) |
kw |
AC 1.5 |
| Lifitng motor power(S3 15%) |
kw |
DC 2.2 |
| Battery |
V/Ah |
24/210 |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
