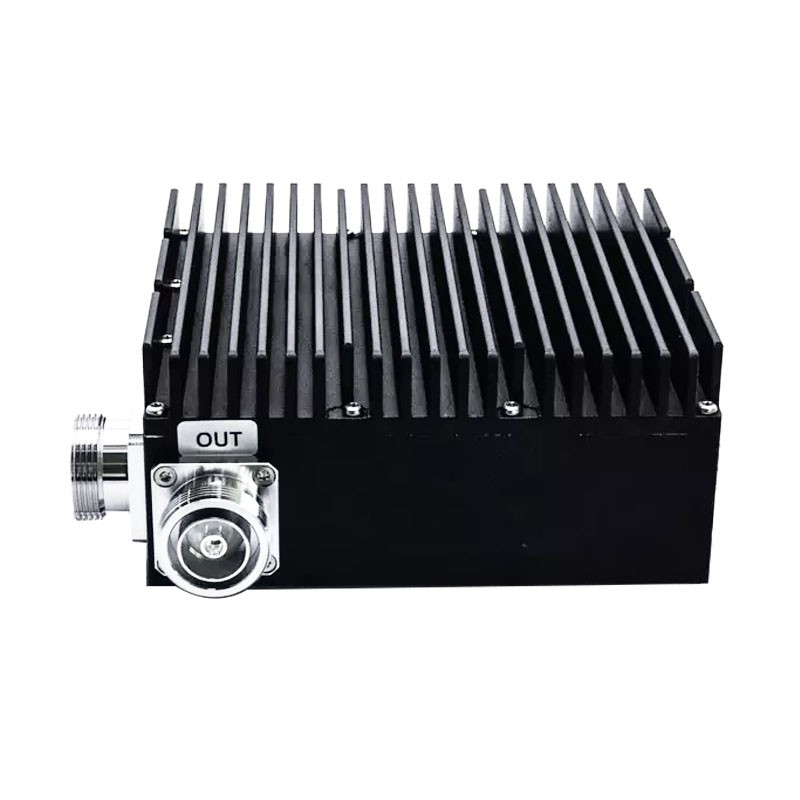

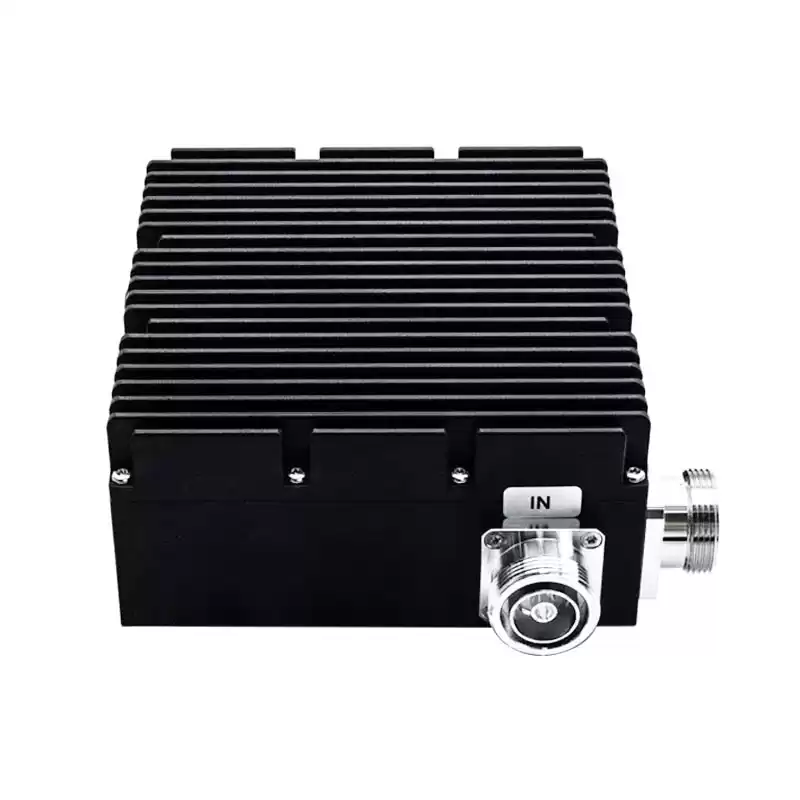

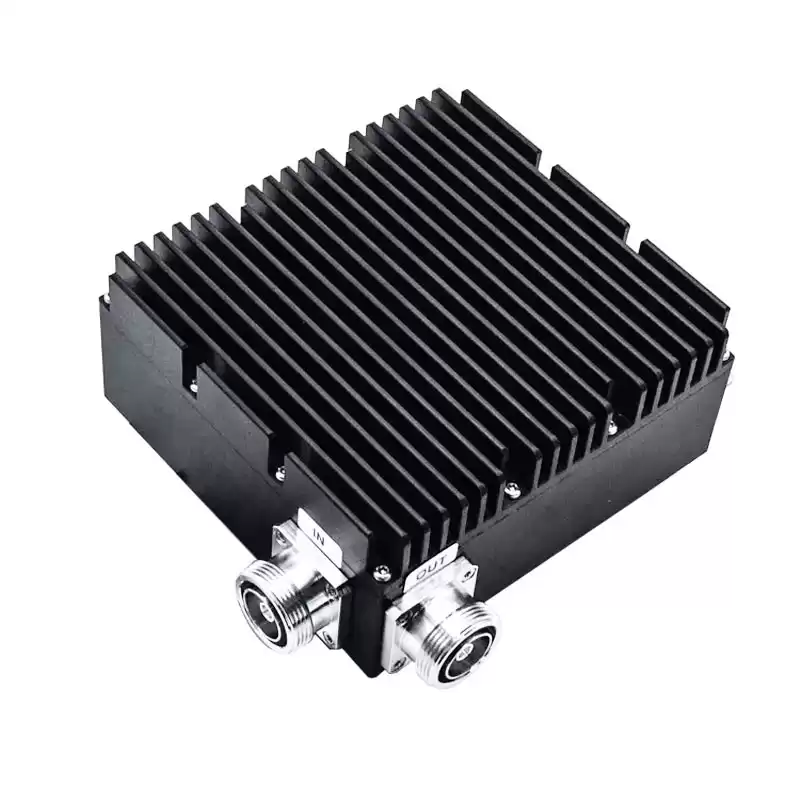

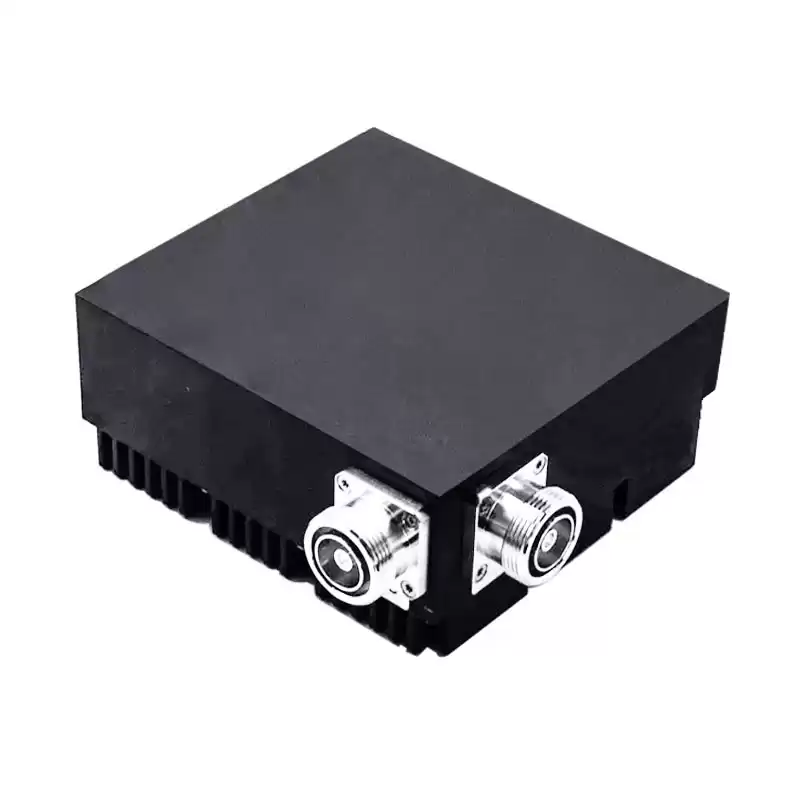

Low Pim 100W 3-30dB RF Coaxial Fixed Attenuator with 7-16 DIN Female to Female Connector
The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 7-16 DIN Attenautor is a High Power Coaxial Attenuator from 25 to 100W, and we offer 50ohm loads terminations male and female type. This 100W 7-16 DIN to 7-16 DIN Attenuator has a 7-16 DIN male gender on side 1 and a 7-16 DIN female connector on side 2. attenuation Max value is 50dB, frequency Max is 6GHz.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz |
| Connector |
7-16 DIN Female to 7-16 DIN Female |
| VSWR |
≤1.2 |
| Power |
100W |
| Impedance |
50Ω |
| Attenuation value |
3-30dB |
| Attenuation |
3, 6, 10, 15, 20, 30dB is available
1-10dB.±0.5dB,15-30dB±1dB,30-40dB±1.5dB |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Cluster communication
- satellite communication
- Hopping radio
- Radar, electronic navigation
- Electronic confrontation
- Aerospace equipment systems
