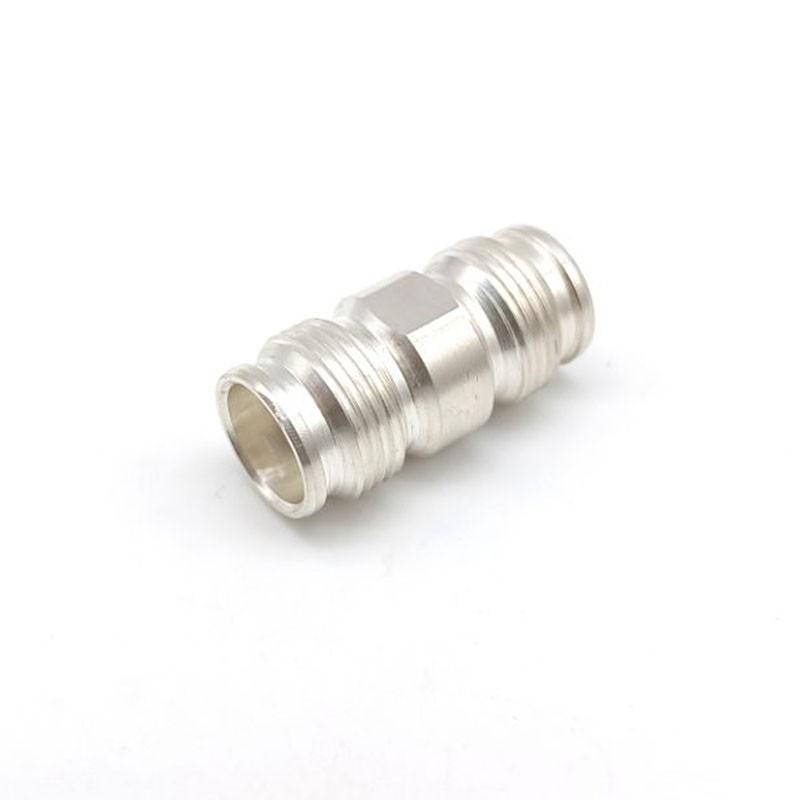

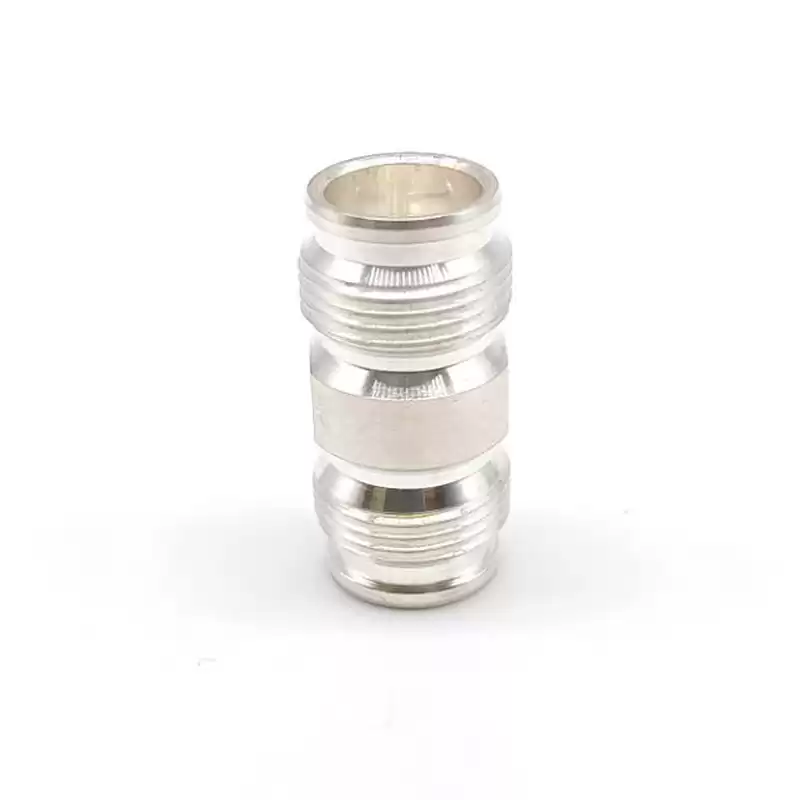

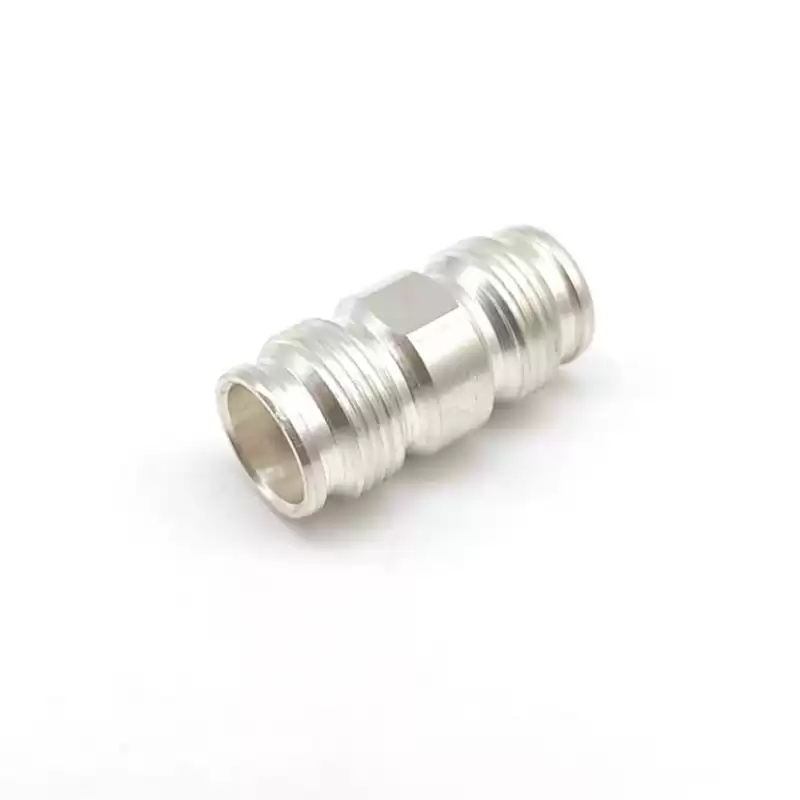

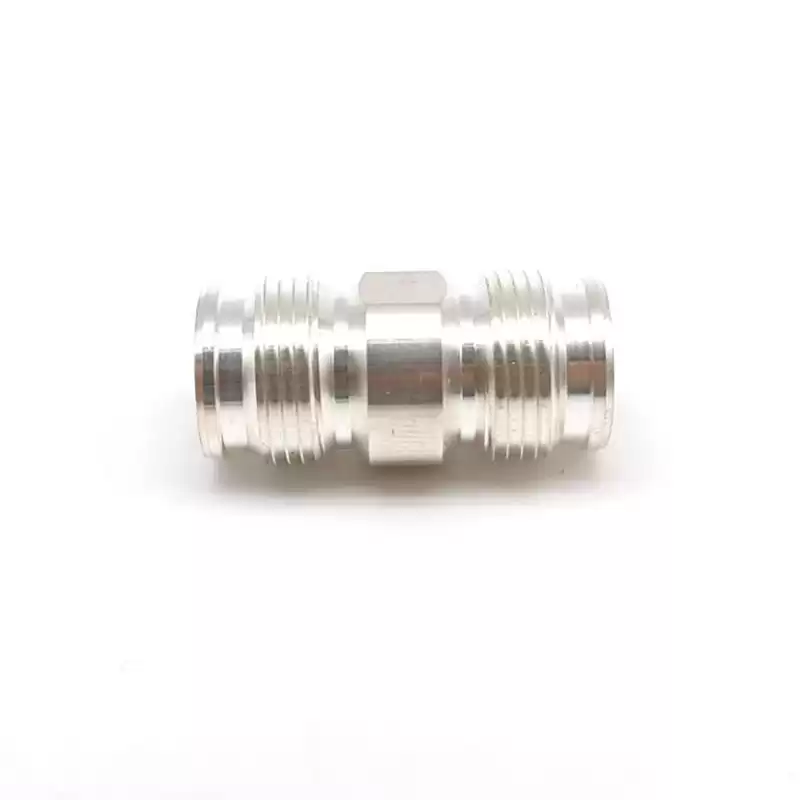

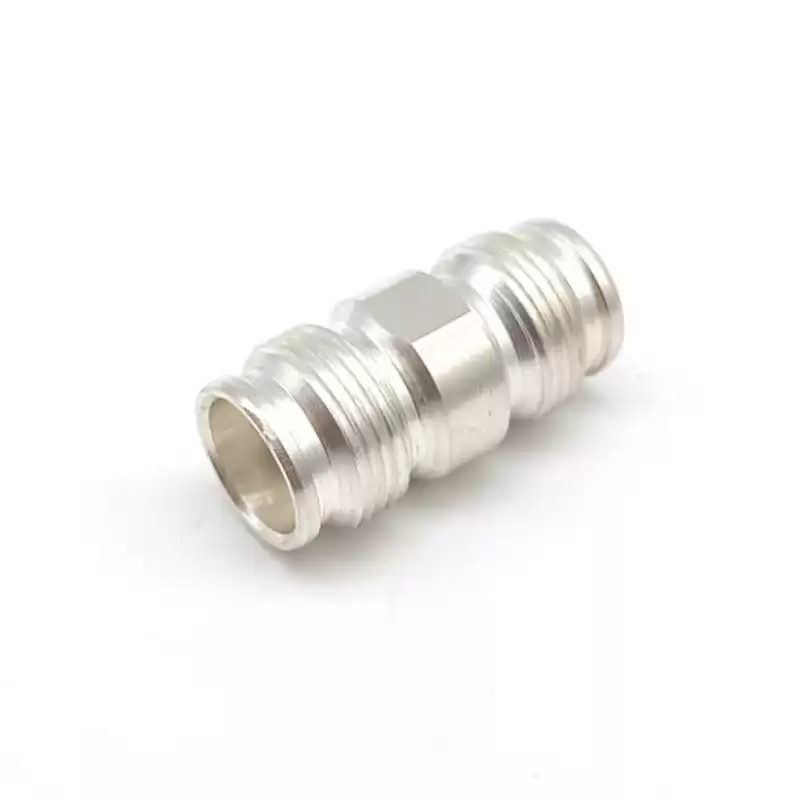

Low Pim 2.2-5 Female to 2.2-5 Female RF Coaxial Connector Adaptor For 5G
The 2.2-5 Adapter has 2.2-5 to 2.2-5 standard polarity adapter gender options. The 2.2-5 to 2.2-5 adapters has female to female, female to male, male to female or male to male gender designs. ROHO offers low PIM or high performance designs.This 2.2-5 female to 2.2-5 female adapter has a maximum frequency of 6GHz, and is a straight adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
2.2-5 |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
2.2-5 |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Distributed antenna systems (DAS)
- Mobile communication base stations
- Telecommunication installations
- Mobile radio
