Low Pim 2.2-5 Male to 4.3-10 Female Straight RF Connector Adapter
N type adapters Features：
- Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors;
- Require low PIM in order to avoid interference in network quality during high speed data transmission;
- Flexibility in installation with the ability to blind mate；
- Lightweight and can accommodate various cable types;
- Both indoor and outdoor applications.

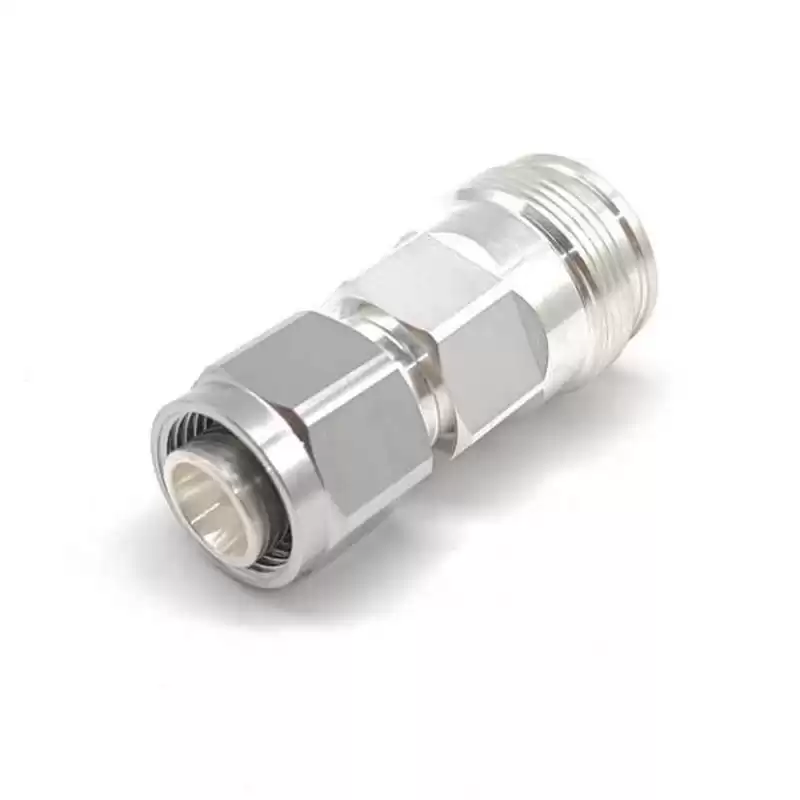

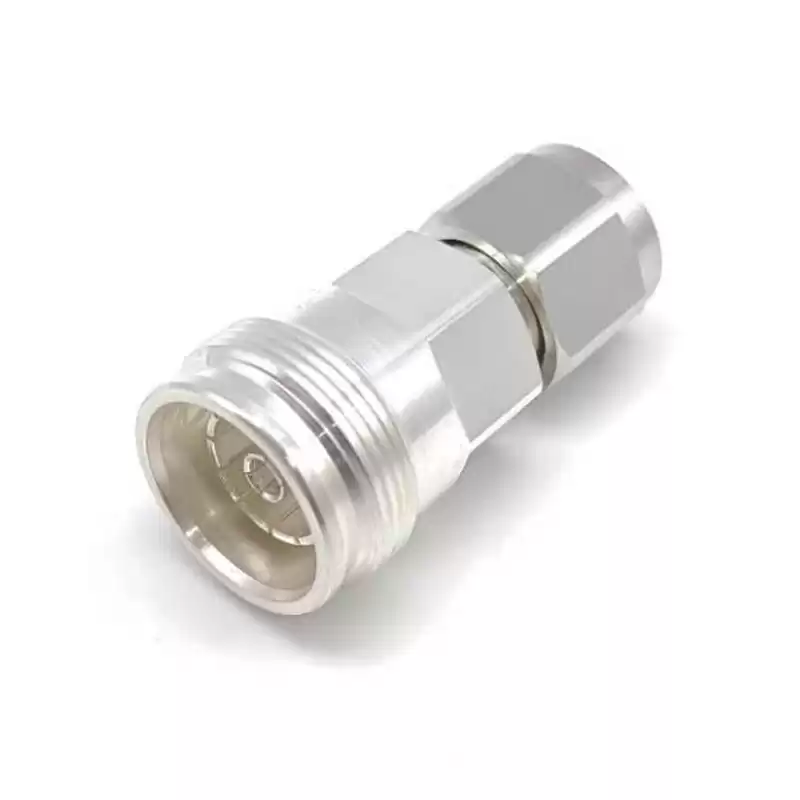

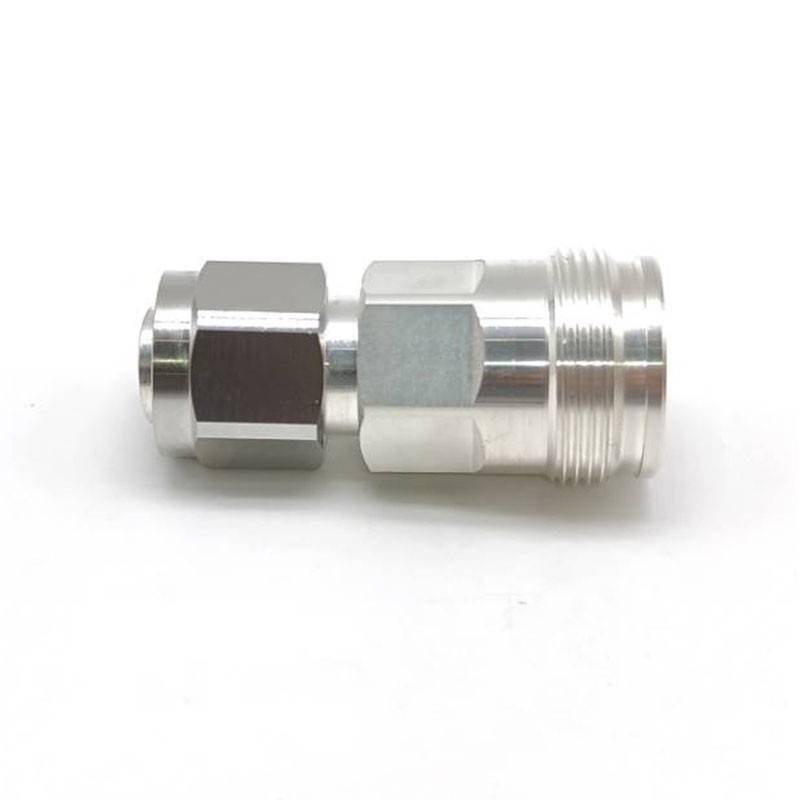

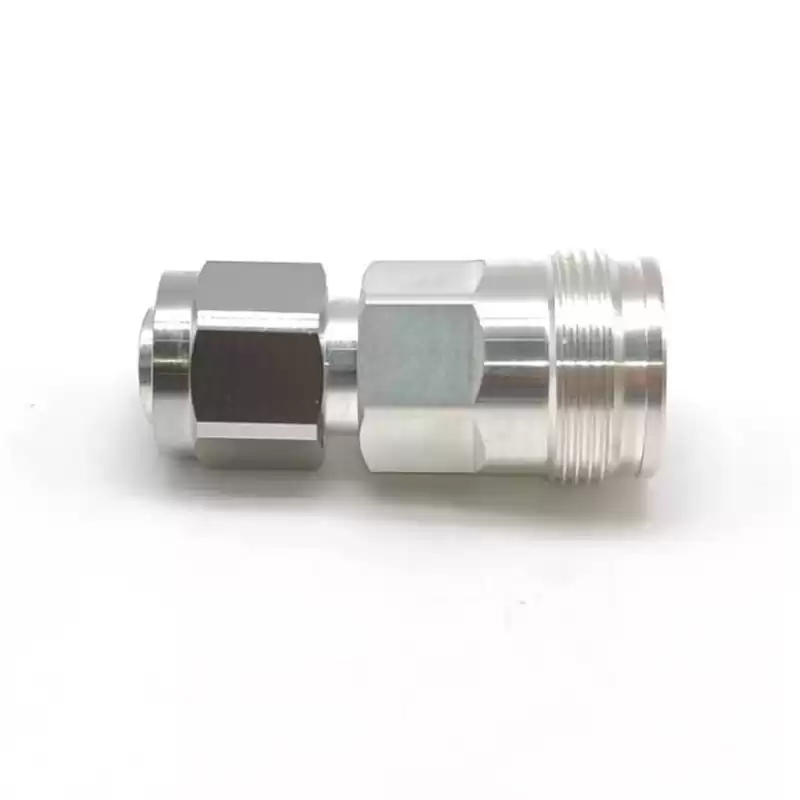

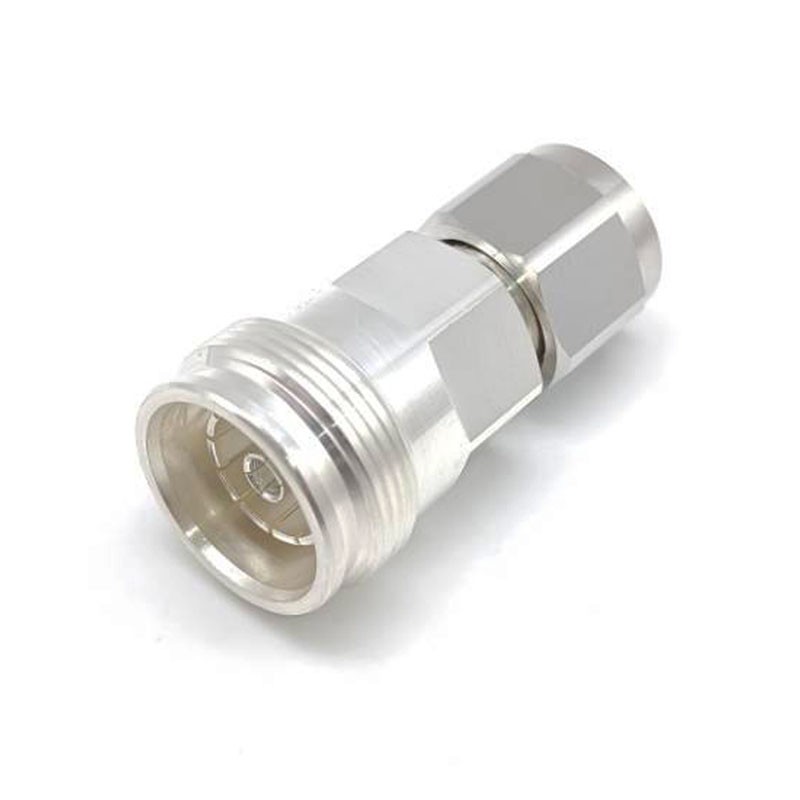

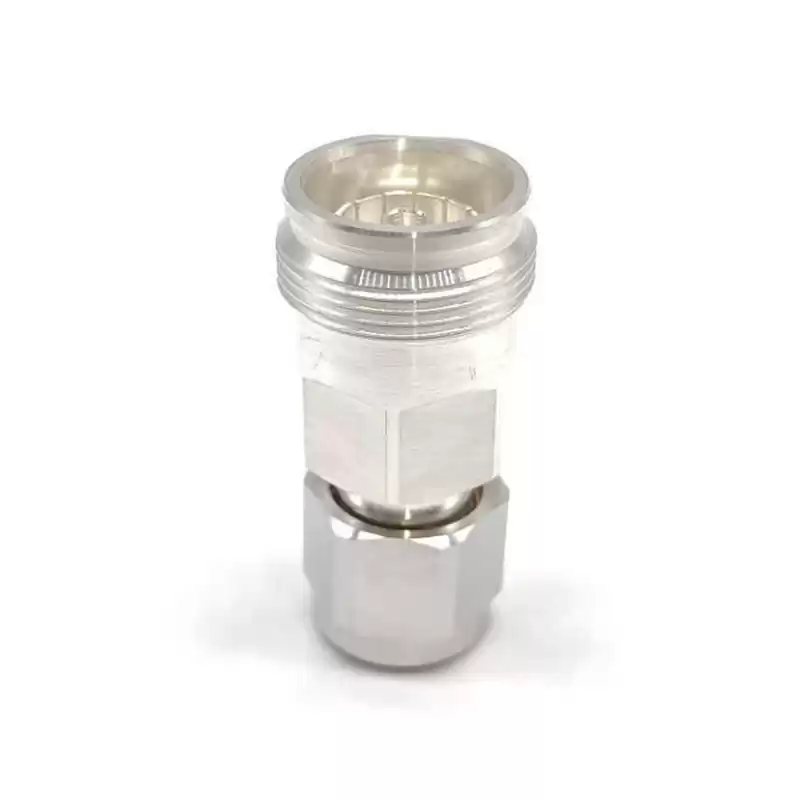

Low Pim 2.2-5 Male to 4.3-10 Female Straight RF Connector Adapter
The 2.2-5 Adapter has 2.2-5 to 4.3-10 standard polarity adapter gender options. The 2.2-5 to 4.3-10 adapters has male to female or male to male gender designs. ROHO offers low PIM or high performance designs.This 2.2-5 male to 4.3-10 female adapter has a maximum frequency of 8GHz, and is a straight adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | 2.2-5 |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | 4.3-10 |
| Adapter Side 2 Style | Female |
| Frequency (Max GHz) | 8 |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Distributed antenna systems (DAS)
- Mobile communication base stations
- Telecommunication installations
- Mobile radio
