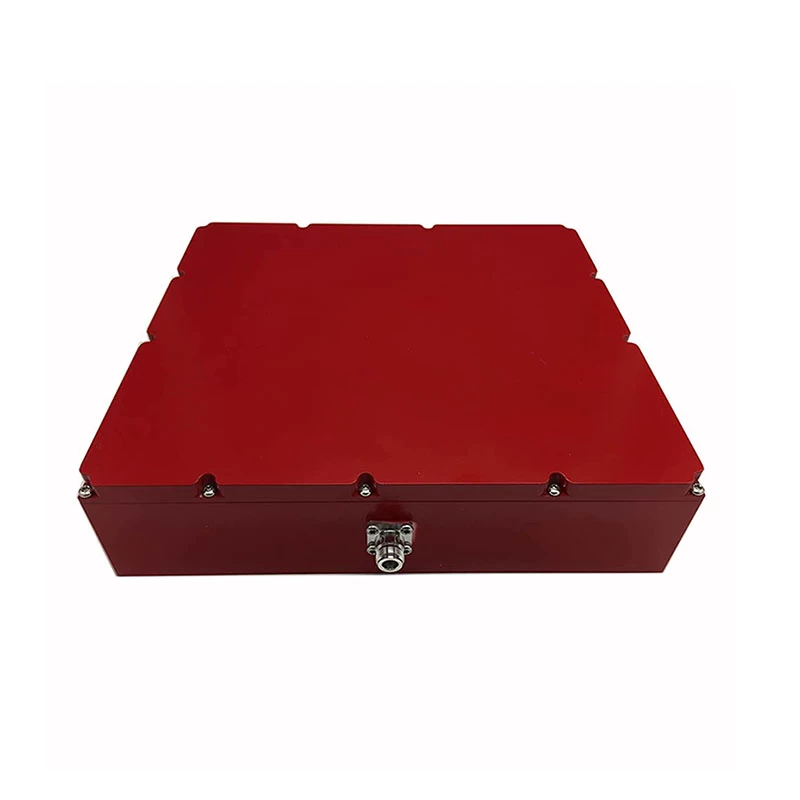

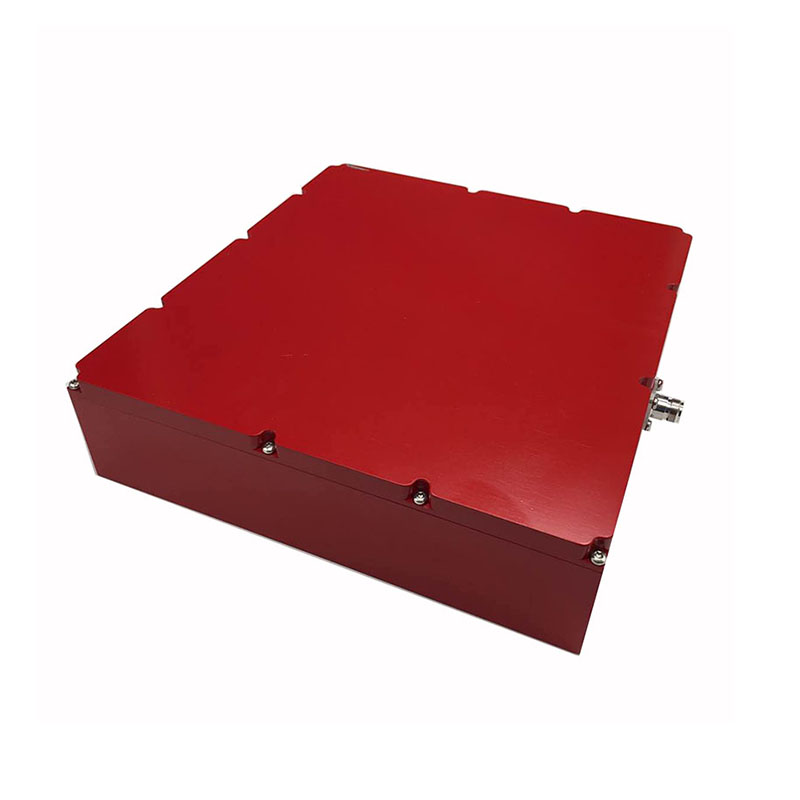

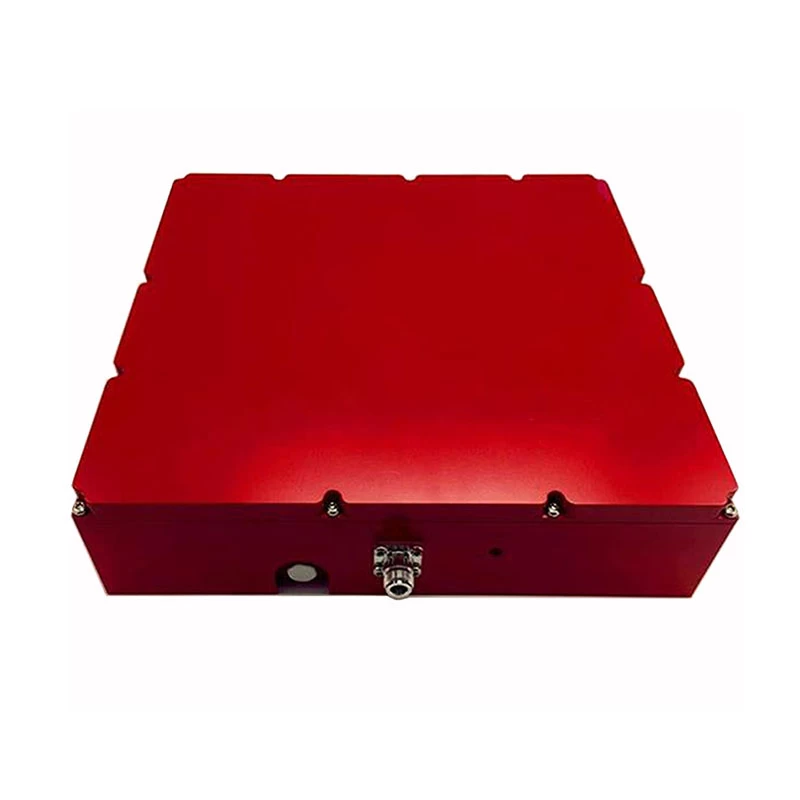

50W RF Cavity Filter (50w,769-775&799-816&851-861MHz, N-Female, Low PIM,IP67)
RF Cavity Filter is narrow pass band range with low insertion loss, high stop band attenuation and Low PIM, Specifications can be made accordin to the customers' requiments. 50W Filter can be used to improve input selectivity of receivers and amplifiers and used to increase the isolation of transmitters, whose re-spective antennas are mounted close together.
Product Features
◆Compact,Low weight
◆ 2G/3G/4G/5G/LTE Coverage
◆ High reliability
◆ Low Passive Intermodulation-150dBc@2*20W
◆ Simple installation
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MNL-FILTER-769-861-NF
|
|
Frequency Range (MHz)
|
769-775MHz&799-816MHz&851-861MHz
|
|
Insertion Loss(dB)
|
≤1.5dB
|
|
External Inhibition(dB)
|
≥30@788-798&758-768
|
|
Return Loss/VSWR
|
≤-18dB/1.30
|
|
Intermodulation(dBc)
|
≤-150（with 2x20W）
|
|
Input Power
|
50W
|
|
Impedance
|
50 ohms
|
|
Operating Temperature Range
|
-10℃to +55℃
|
|
Storage Temperature Range
|
-20℃to +85℃
|
|
Relative humidity
|
5%-95%
|
|
Application
|
Indoor or Outdoor (IP67)
|
|
Dimension
|
333*310*82mm(without connector and bracket)
|
|
Connector Type
|
N-Female
|
|
Color
|
Pantone 200C Red
|
|
Packing
|
1 Pce in box
|

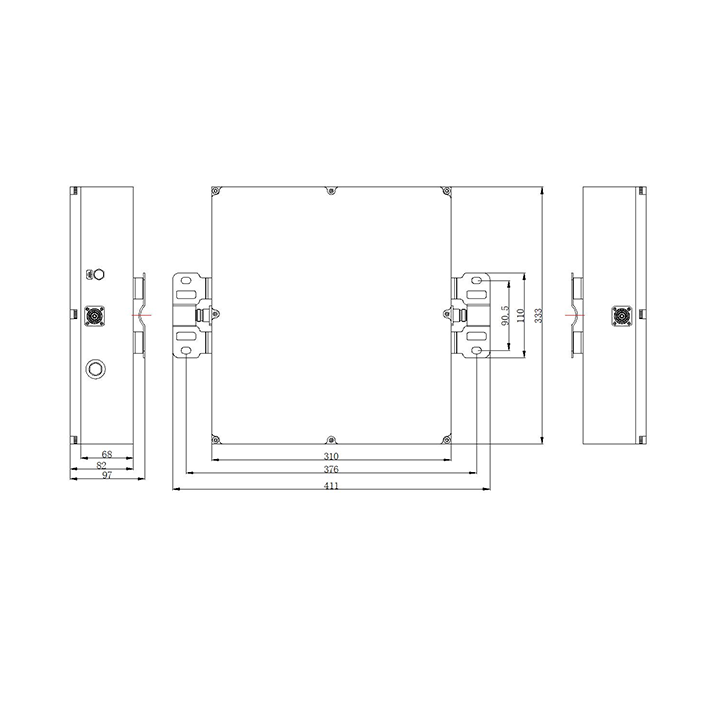

Mechanical Drawing
