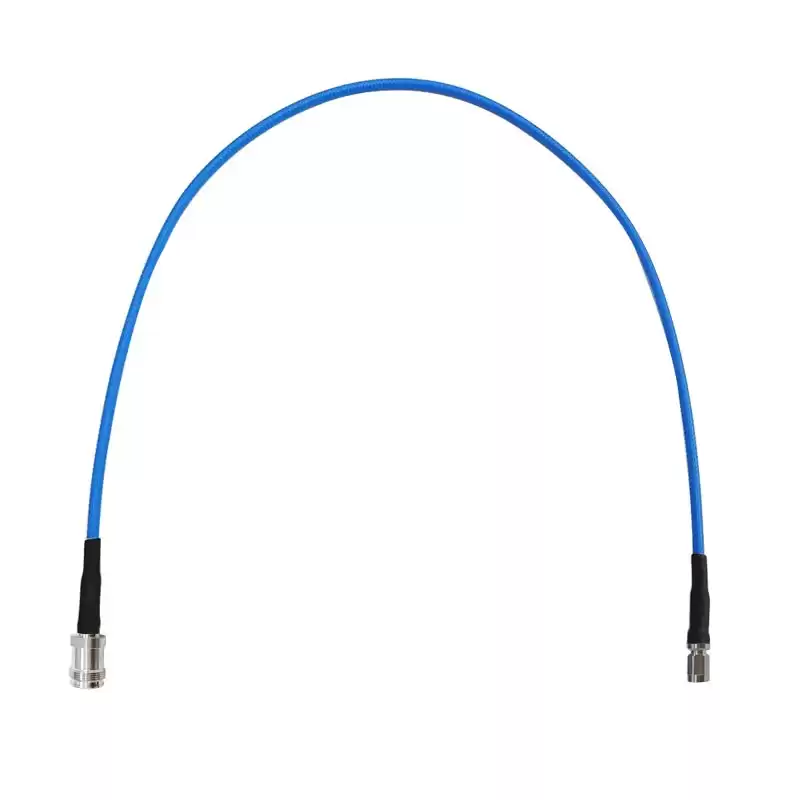

Low Pim NEX10 Male to Mini Din 4.3-10 Female Connector Cable Assembly with SPP Plenum Rated Coax Flexible Cable

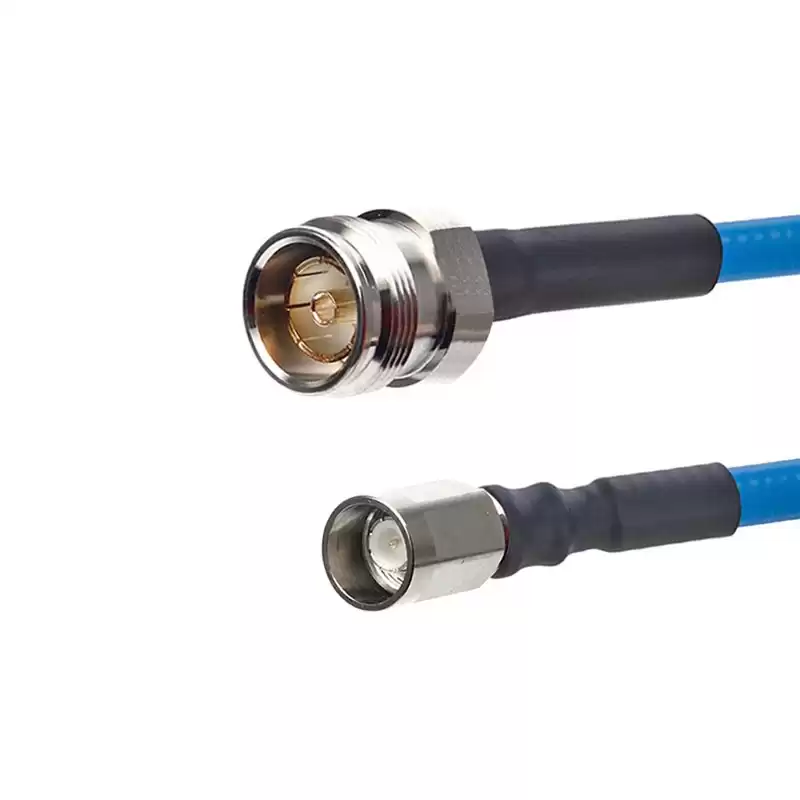

The NEX10 cable assembly can use flexible, formable or semirigid coaxial cable such as 1/4" Superflexible, TFT402; the body of NEX10 to 4.3-10 cable assembly is right angle or straight connectors which is male to female or male to male gender. ROHO's NEX10 to 4.3-10 cable assembly is a low pim cable. This NEX10 male to 4.3-10 female cable assembly uses a 50ohm straight NEX10 for connector 1 and a 50ohm straight 4.3-10 for connector 2, Cable is 50ohm SPP plenum rated coax flexible cable.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
NEX10 |
| Connector 1 Style |
Str Male |
| Cable Type |
SPP Plenum Rated Coax Flexible Cable |
| Connector 2 Series |
4.3-10 |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Multi-Carrier Communication Systems
- Small Cell
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
