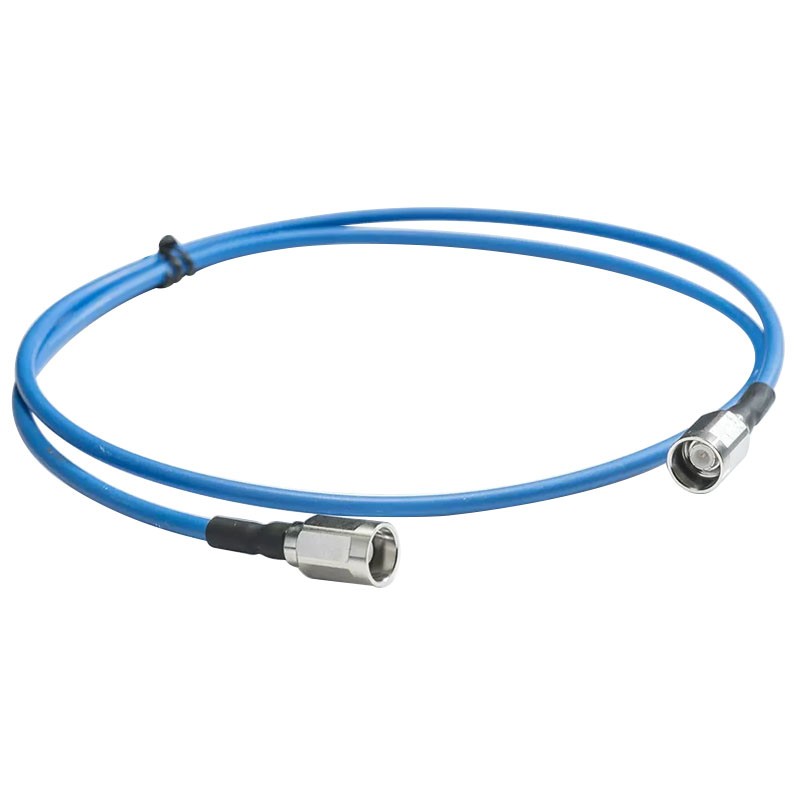

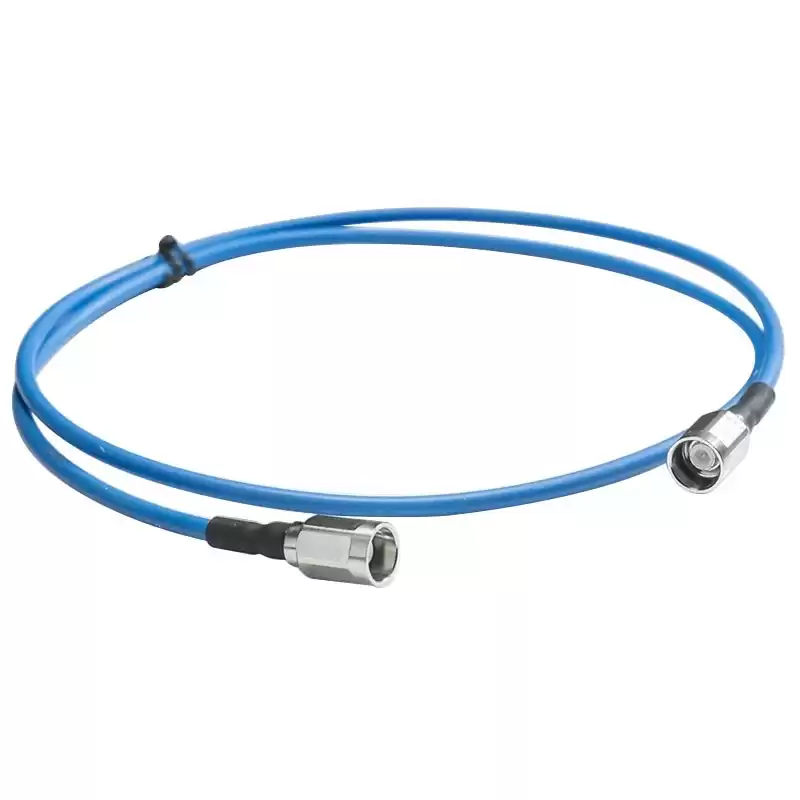

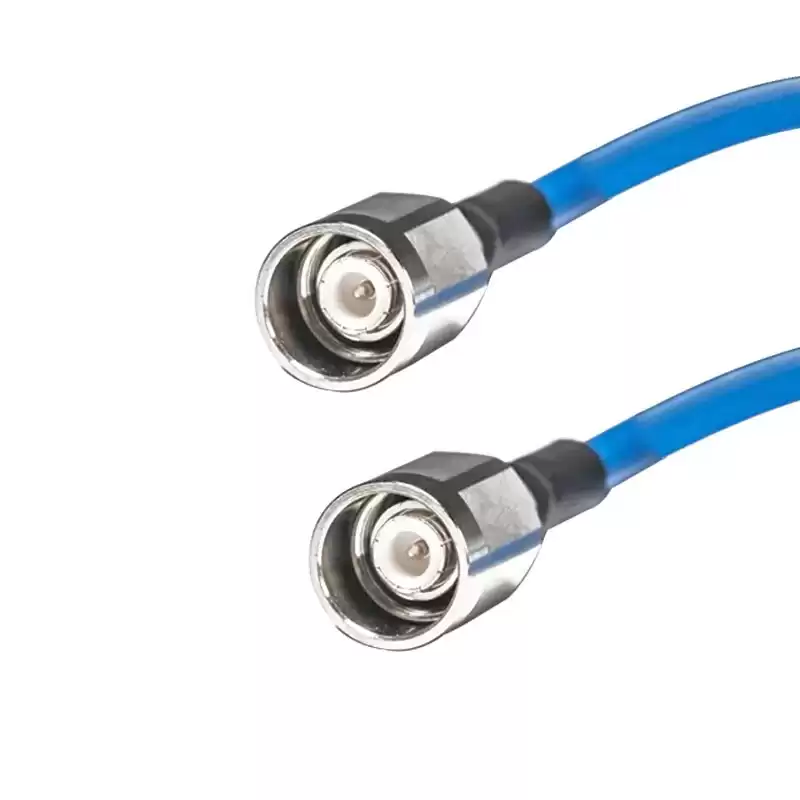

Low Pim NEX10 Male to NEX10 Male Connector Cable Assembly with RG402 Coax Flexible Cable
The NEX10 cable assembly can use flexible, formable or semirigid coaxial cable such as 1/4" Superflexible, TFT402; the body of NEX10 to NEX10 cable assembly is right angle or straight connectors which is male to female or male to male gender. ROHO's NEX10 to NEX10 cable assembly is a low pim cable. This NEX10 male to NEX10 male cable assembly uses a 50ohm straight NEX10 for connector 1 and a 50ohm straight NEX10 for connector 2, Cable is 50ohm RG402 flexible cable.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
NEX10 |
| Connector 1 Style |
Str Male |
| Cable Type |
RG402 Flexible Cable |
| Connector 2 Series |
NEX10 |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Multi-Carrier Communication Systems
- Small Cell
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
