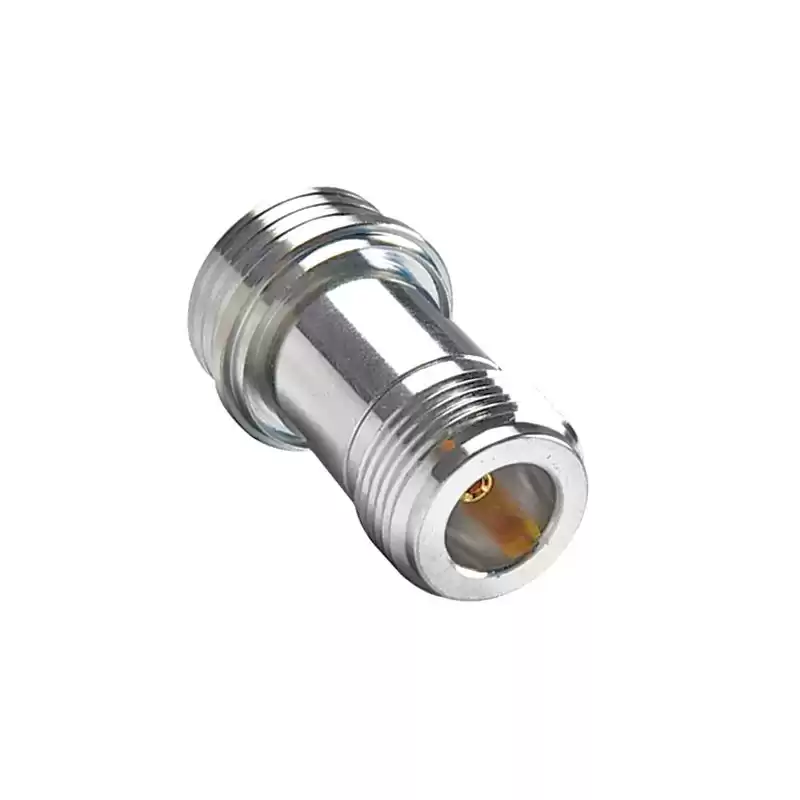

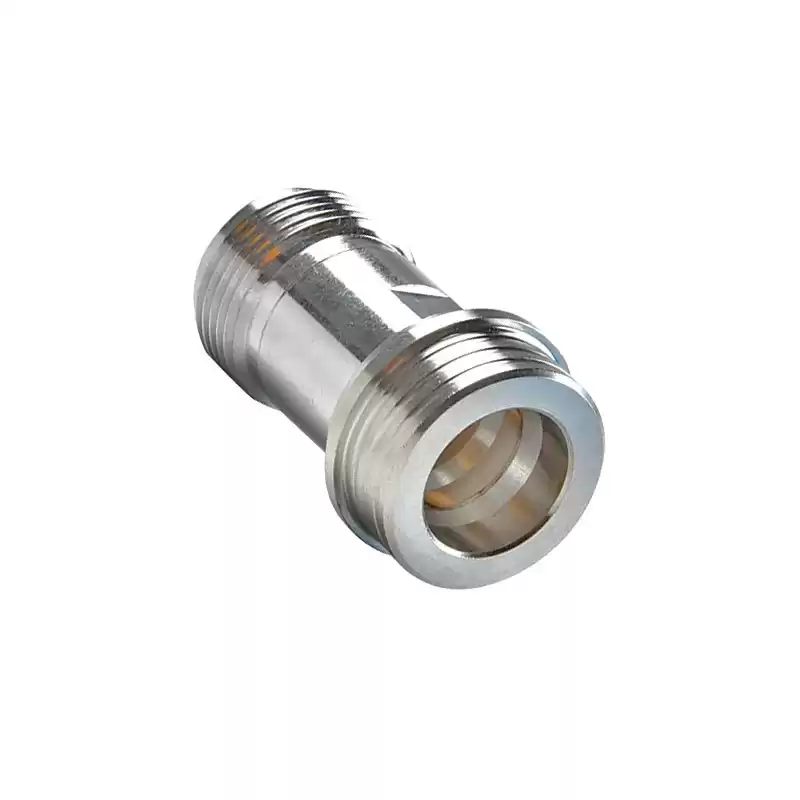

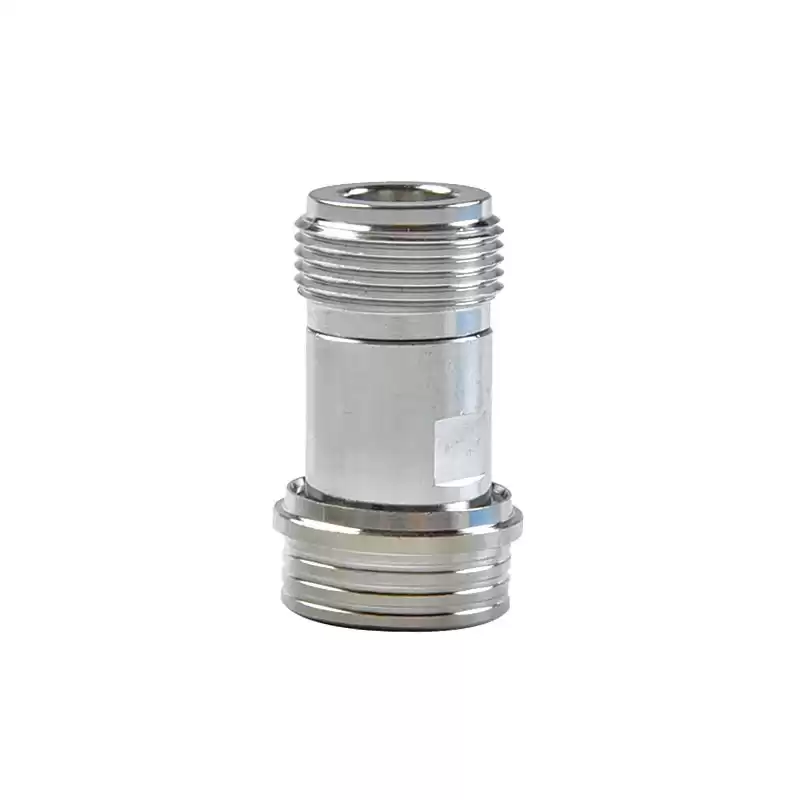

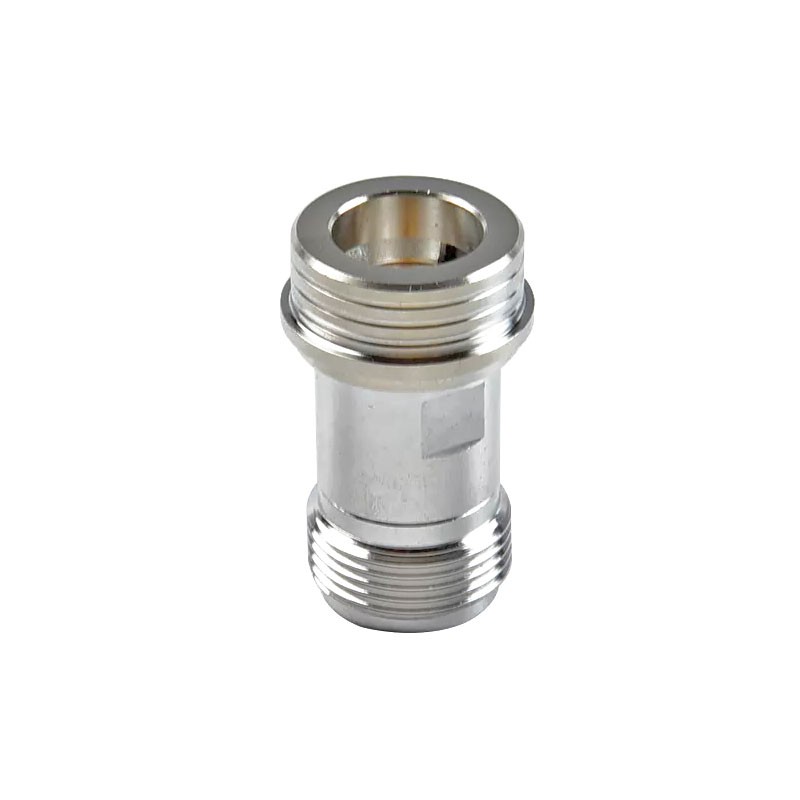

Low Pim QN Male to N Female RF Coaxial Connector Adapter
The Qn Type Adapter has Qn to N standard polarity adapter gender options. It is a between series coaxial adapter design, The Qn to N adapters has female to male or male to female gender varieties. ROHO offers low PIM or high performance designs.This Qn male to N female adapter has a maximum frequency of 6GHz, and is a straight adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
QN |
| Adapter Side 1 Style |
Male |
| Adapter Side 2 Series |
N |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Satellite systems
- Base stations
- Wireless LAN
- Broadcast systems
- Radar equipment
- Surge protection
- Microwave Radio
- Outdoor antennas
