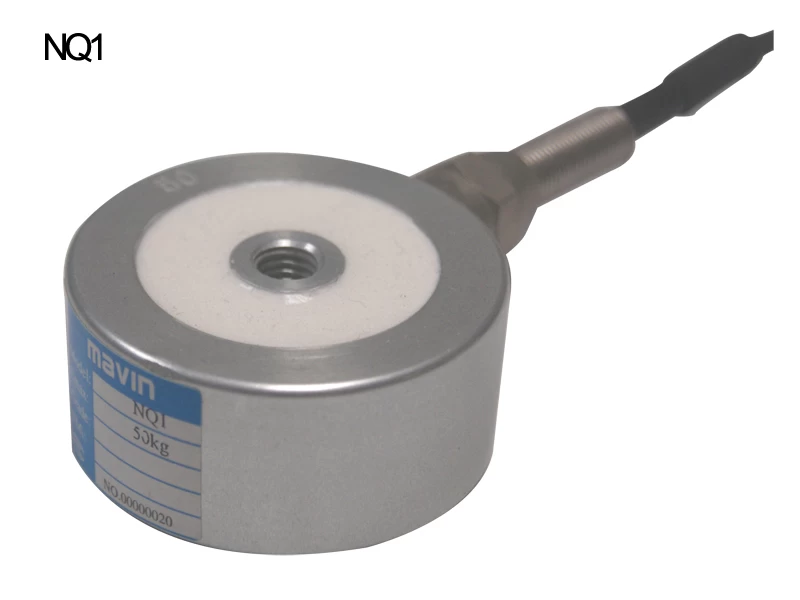

Aluminum pancake wheel shaped Load Cell NQ1 (50-500KG)
The
NQ1 is a smaller dimension Aluminum Wheel shaped load cell for a
wide capacity range for Batching Scale, Industrial weighing systems, Potting
Compound with waterproof connector sealed to guarantee stable quality of
performance.
Key Features：
Smaller
dimension
Aluminum
Alloy material with potting Compound
Capacity: 50~500kg
Precision:
0.02%R.O.
Protection
class: IP66/PI67
Rated Output : 1.0 mV/V±0.5%
Usage & Applications：
Batching scales
Industrial weighing system

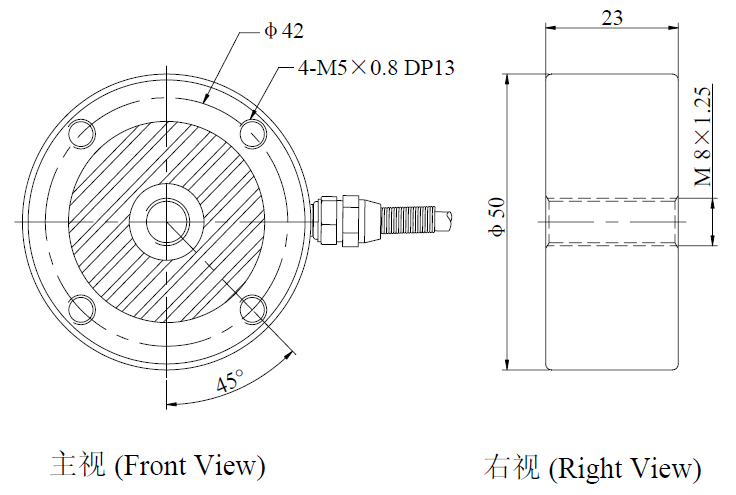

Dimension：
NQ1 Specification：
|
Rated
Capacities
|
50~500（kg）
|
|
Rated
Output
|
1.0
mV/V±0.5%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.05%R.O.；0.03%R.O.
|
|
Hysteresis
|
0.05%R.O.；0.03%R.O.
|
|
Repeatability
|
0.05%R.O.；0.03%R.O.
|
|
30mins
Creep
|
0.05%R.O.；0.03%R.O.
|
|
30mins
Return
|
0.05%R.O.；0.03%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.005
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.005
%R.O./℃
|
|
Input
Impedance
|
410±15
Ω
|
|
Output
Impedance
|
350±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection
Class
|
IP66
/ IP67
|
|
Cable
|
φ5×3m
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
