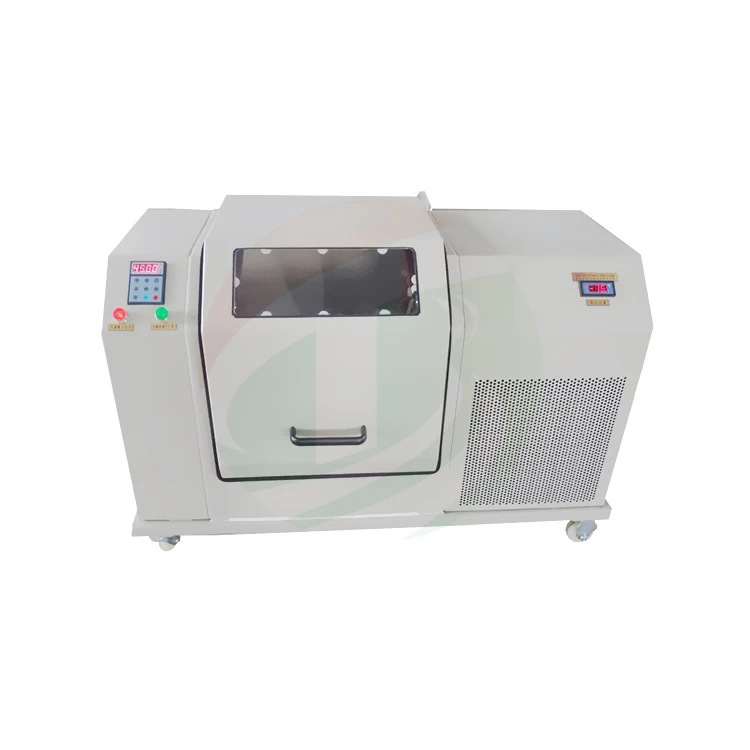

Low temperature planetary ball milling machine
SPECIFICATIONS
|
Power
|
220V 50HZ 4KW
|
|
Display
|
LED display, and can display ball mill speed
|
|
Transmission
|
Gear transmission
|
|
Milling to achieve the
lowest temperature environment
|
-20 ° C
|
|
Low temperature control accuracy
|
±1 ° C
|
|
Way of working
|
Two or four tank work simultaneously
|
|
Max sample loading capacity
|
Two-thirds of the milling tank volume
|
|
Abrasive way
|
Milling under dry or wet
Stainless steel vacuum tank can milling under inflate or vacuum conditions
Stainless steel vacuum sleeve, you can put other common cans (for example: agate, zirconia, PTFE, etc.) trap, so that in agate, zirconia, PTFE, etc. jar, milling under inflated or vacuum conditions
|
|
Feed size
|
Soil material ≤10mm, other material ≤3mm
|
|
Discharge size
|
Mix 0.1um
|
|
Speed ratio
|
1：2
|
|
Broader market speed (milling tank speed)
|
00-530 Rev / min
|
|
Milling tank rotation speed
|
00-265 Rev / min
|
|
Broader market speed
|
Frequency variable speed, programmable control
|
|
Control method
|
With timing, automatic shutdown.
Can be set automatic reversing
Can be set intermittent rotation
|
|
Intelligent control
|
Limit switch is mounted, with open lid power off,
stop turning the function
|
|
Max continuous working time (Full load)
|
72 hours
|
|
Can be equipped with ordinary milling tanks model
(can be equipped with four such tanks)
|
250ML 500ML 100ML
|
|
Can be equipped with stainless steel vacuum ball milling tanks
(can be equipped with four such tanks)
|
250ML 500ML
|
|
Can be equipped with stainless steel vacuum models
(can be equipped with four such tanks)
|
250ML 500ML
|
