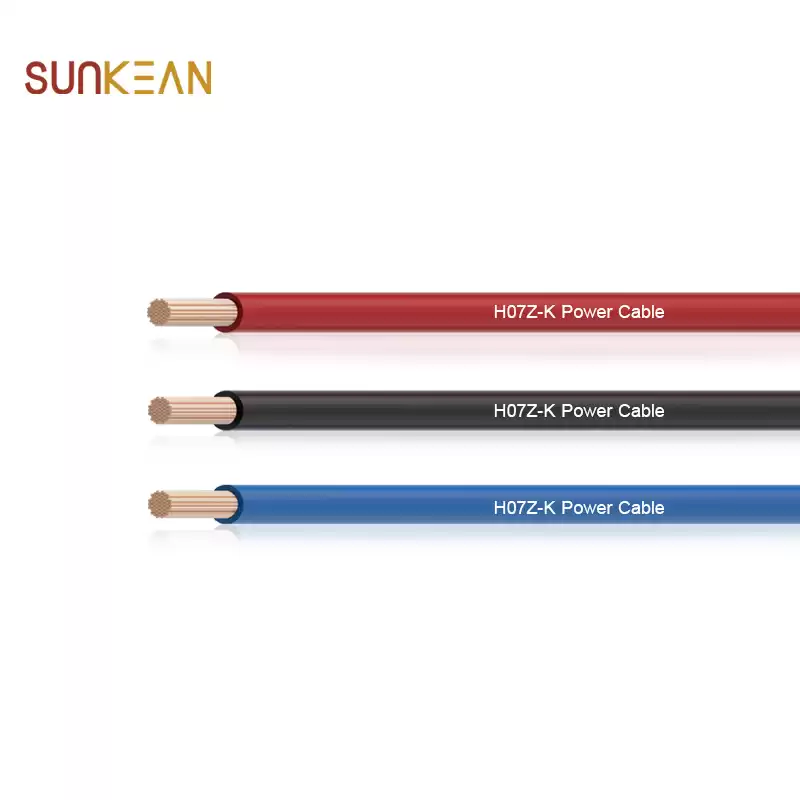

Low Voltage cable Single Core H07Z-K cable Insulated Flexible Installation Industrial Power Wires
SUNKEAN H07Z-K cable conductor uses stranded 1.5~120mm2 tin-plated or bare copper, PVC insulated, and meet RoHS requirements. Uniform insulation thickness ensures easy peeling and cutting.
PVC material Grounding Cable H07Z-K Information:

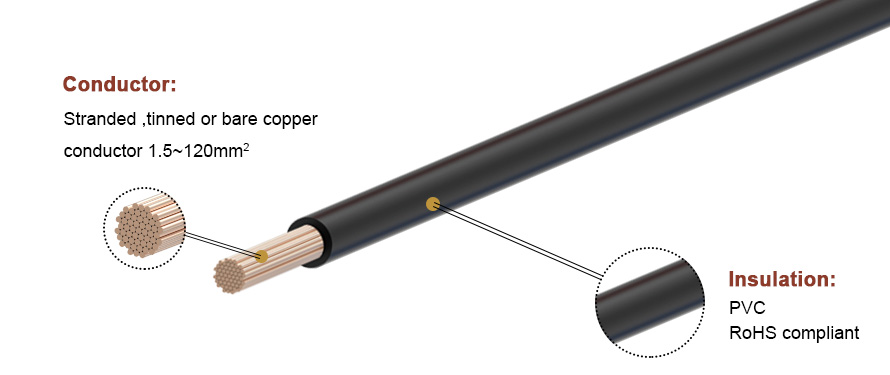

Conductor
|
Stranded ,tinned or bare copper conductor 1.5~120mm2
|
Insulation
|
PVC,RoHS compliant
|
Rated voltage
|
450/750V
|
Rated temperature
|
90°C
|
|
Cable Name
|
Cross Section
(mm²)
|
Construction
(No./mm)
|
Conductor O.D.
(mm)
|
Insulation O.D.
(mm)
|
Conductor Resistance Max
(Ώ/km)
|
Dielectric Strength
(VAC,5min)
|
|
H07Z-K
|
1.5
|
30/0.25
|
1.58
|
3.10
|
13.7
|
2500
|
|
2.5
|
49/0.25
|
2.02
|
3.75
|
8.21
|
|
4
|
56/0.30
|
2.60
|
4.30
|
5.09
|
|
6
|
84/0.30
|
3.42
|
5.20
|
3.39
|
|
10
|
84/0.40
|
4.56
|
6.70
|
1.95
|
|
16
|
126/0.40
|
5.60
|
7.80
|
1.24
|
|
25
|
196/0.40
|
6.95
|
9.60
|
0.795
|
|
35
|
276/0.40
|
8.74
|
11.30
|
0.565
|
|
50
|
396/0.40
|
10.46
|
13.60
|
0.393
|
|
70
|
360/0.50
|
12.50
|
15.60
|
0.277
|
|
95
|
475/0.50
|
13.73
|
17.30
|
0.210
|
|
120
|
608/0.50
|
15.50
|
19.10
|
0.164
|

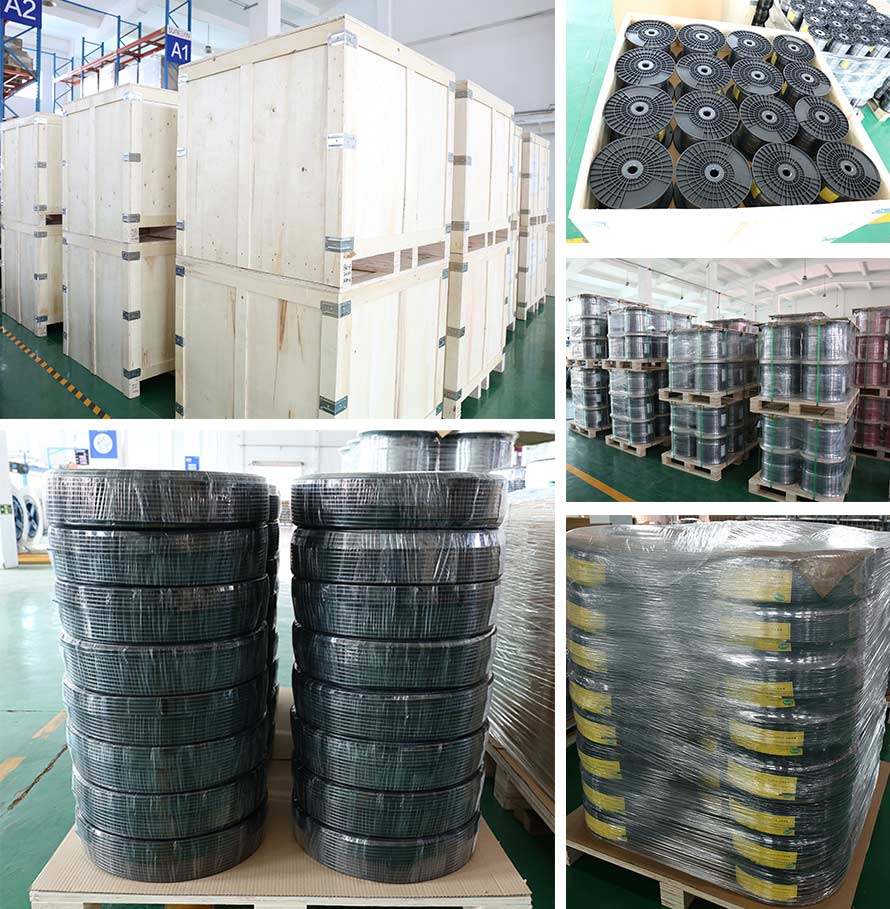

Packing:
