Product Name

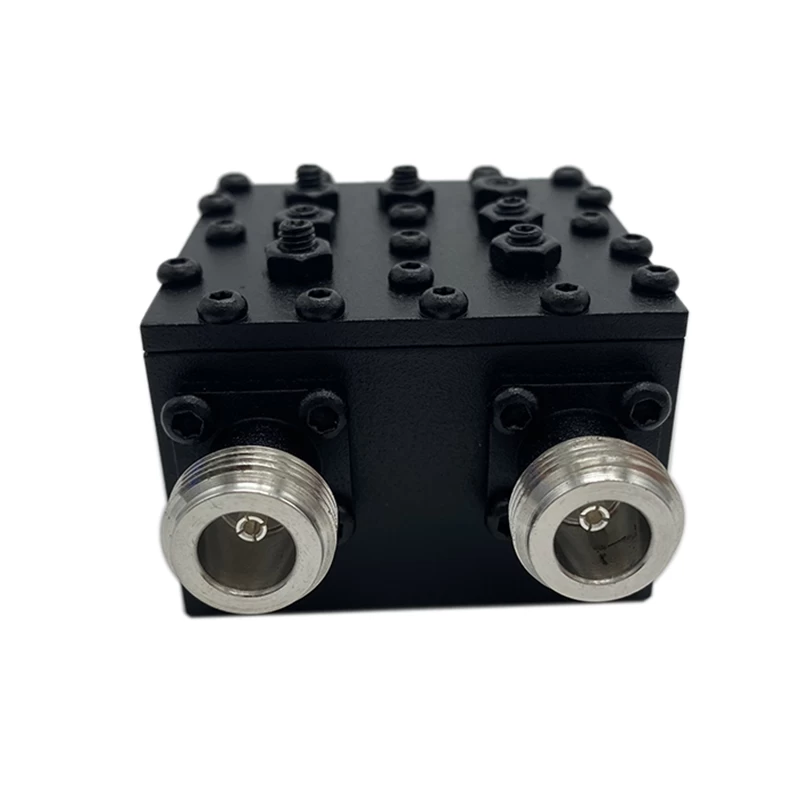

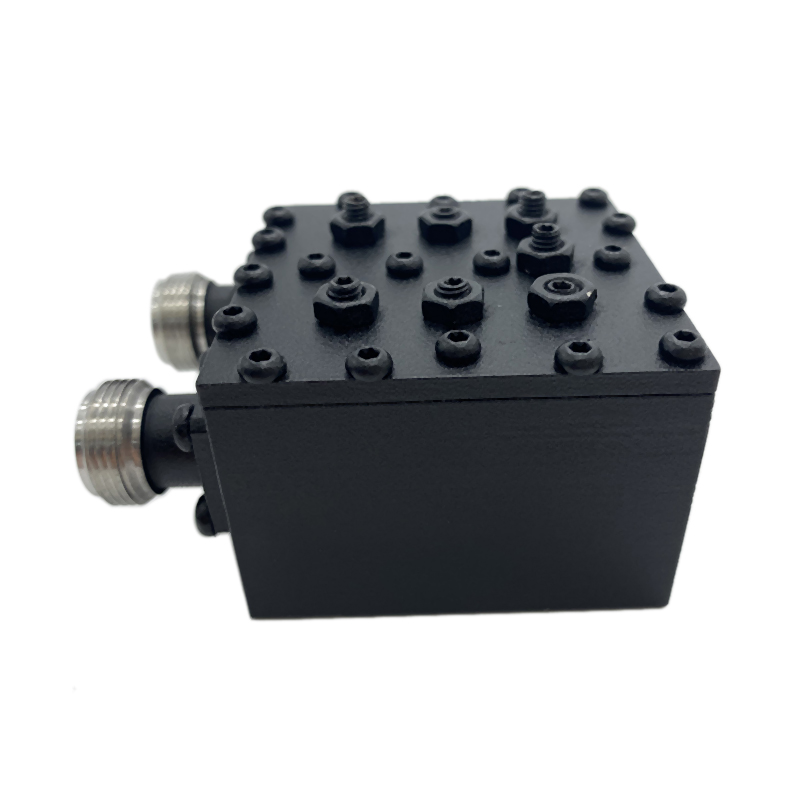

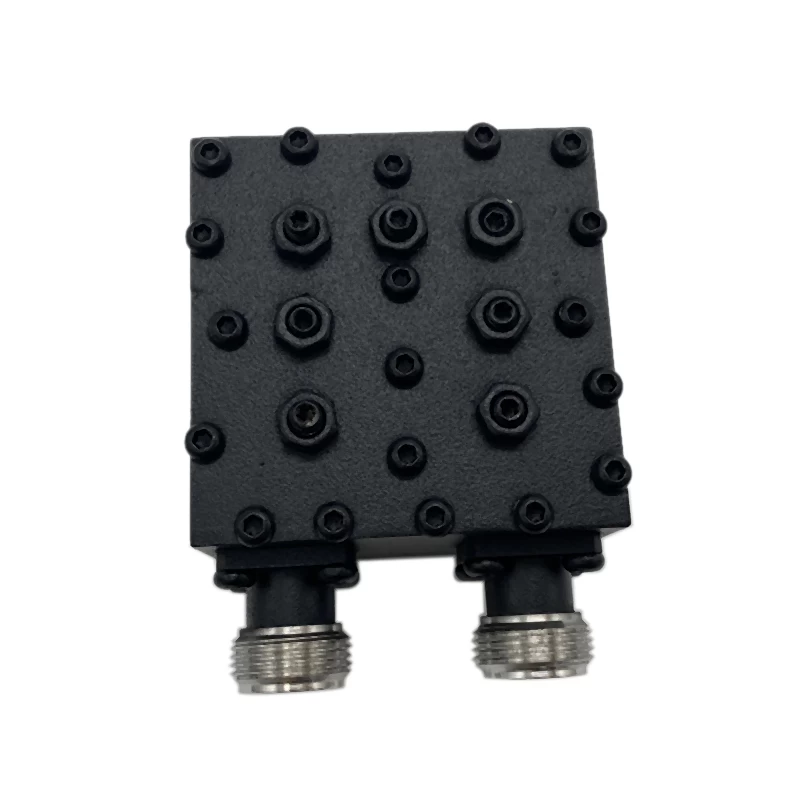

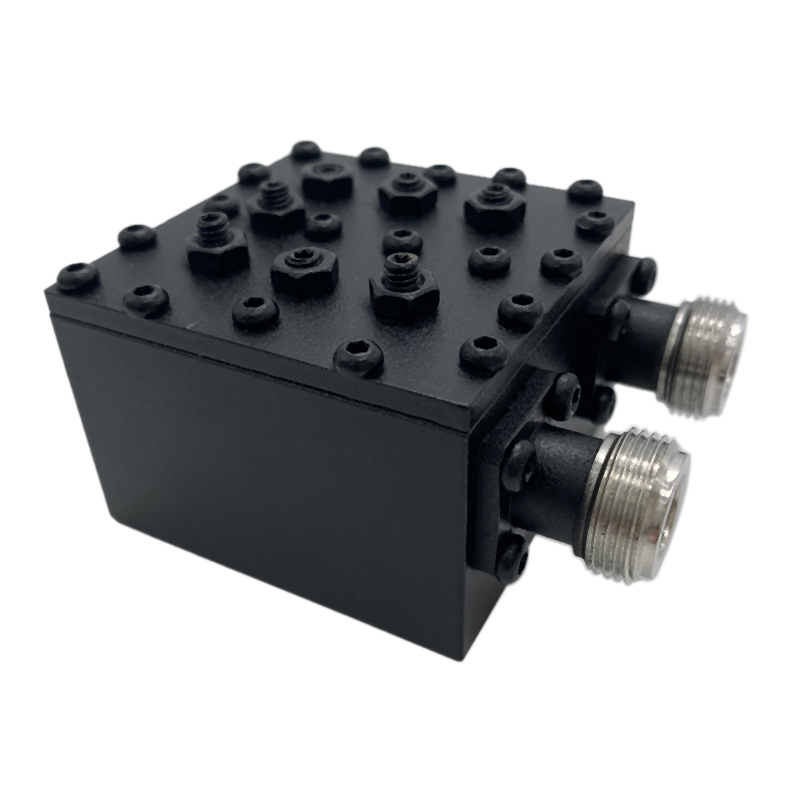

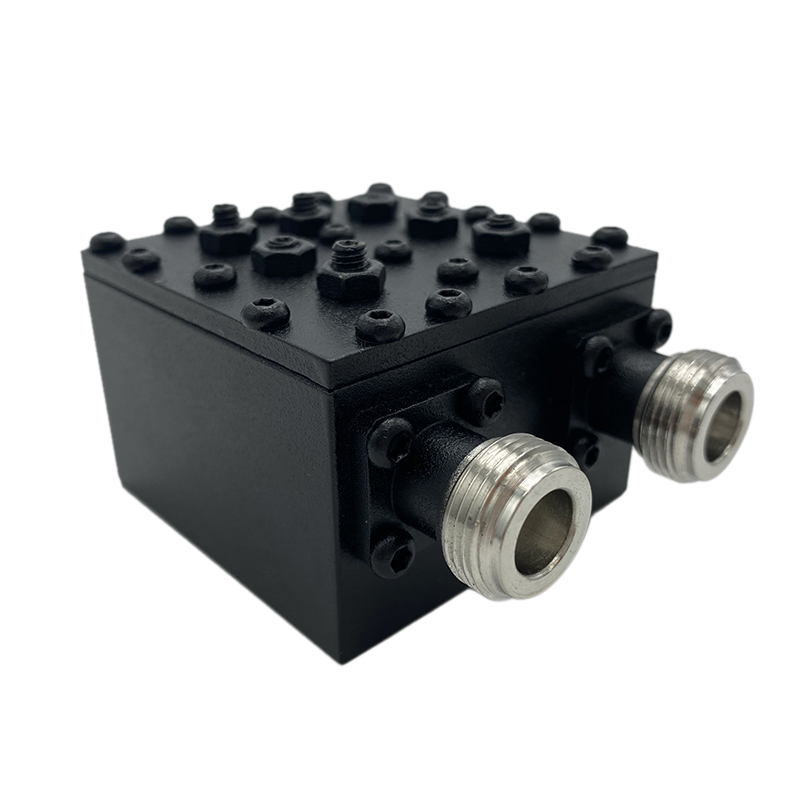

30W RF Passive Cavity filter (863-873MHz,1085-1095MHz, N-Female, )
RF Passive filters mainly have the following characteristics: high integration, small size, high line accuracy, excellent component performance, high consistency, good temperature stability and frequency characteristics.
We can provide standard products and
customized Cavity Filter
Product Features
* Good temperature behavior, High aseismatic capability. * Low Insertion Loss, High power handling.
* High quality, Low price, Fast delivery.
* Custom design available upon request.
* Meet ROHS standard.
Technical &Mechanical Specifications
|
Model No.
|
MNF-873-30-NF
|
MNF-1095-30-NF
|
|
Frequency
|
863-873MHz
|
1085-1095MHz
|
|
Average Power
|
≥30W
|
≥30W
|
|
Insertion Loss
|
≤1.0dB
|
≤1.0dB
|
|
Attenuation
|
DC-833≥40dB
903-1800≥40dB
|
DC-1035≥40dB
1145-2500≥40dB
|
|
VSWR
|
≤1.3
|
≤1.3
|
|
Operating temperature range
|
-10℃to +50℃
|
-10℃to +50℃
|
|
Storage temperature range
|
-40℃to +85℃
|
-40℃to +85℃
|
|
Relative humidity
|
5%-95%
|
5%-95%
|
|
Color
|
Black
|
Black
|
|
Connectors type
|
N-Female
|
N-Female
|

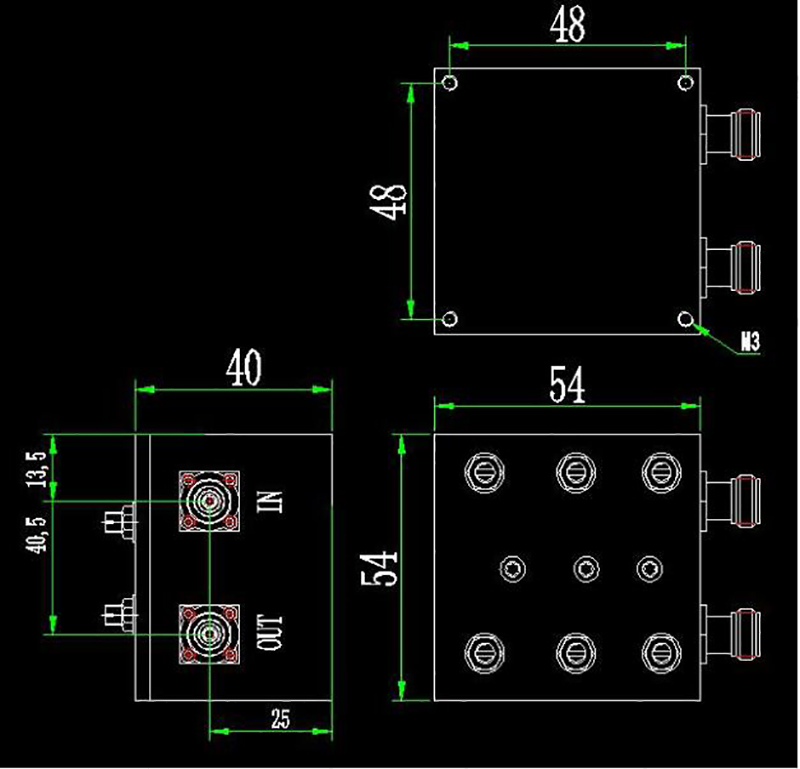

Mechanical Drawing
