Medical Equipment Ventilation Exhaust Fans Air Cooling Blower. The exhaust fan is made of high-quality PBT material, is not easy to be deformed, has excellent workmanship, durable frame and long service life. All the material of our products are in compliance with RoHS requirements
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

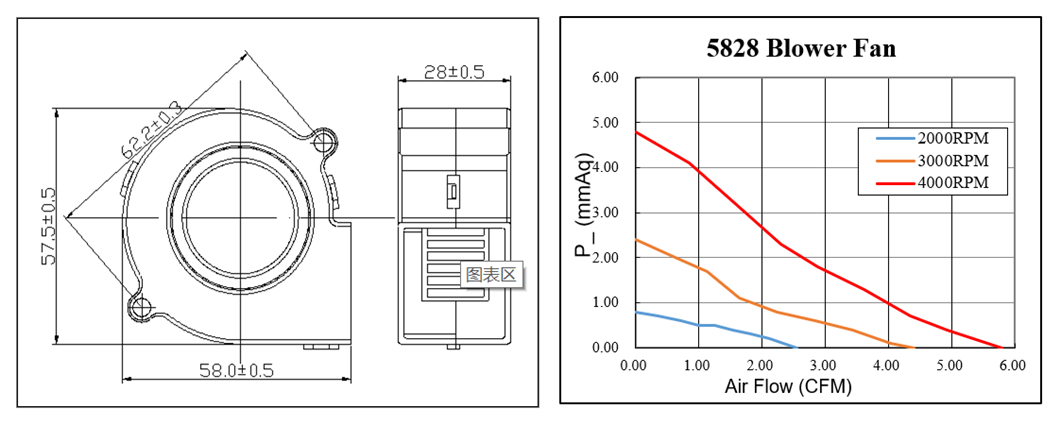

Dimension of outer the frame is 58 mm(L) x 58 mm(W) x 28 mm(H) / The size of fan in inch is 2.28 in(L) x 2.28 in(W) x 1.10 in(H); The center to center distance beween the mountiong holes is 62.2 ± 0.3 mm / 2.44 in.
-

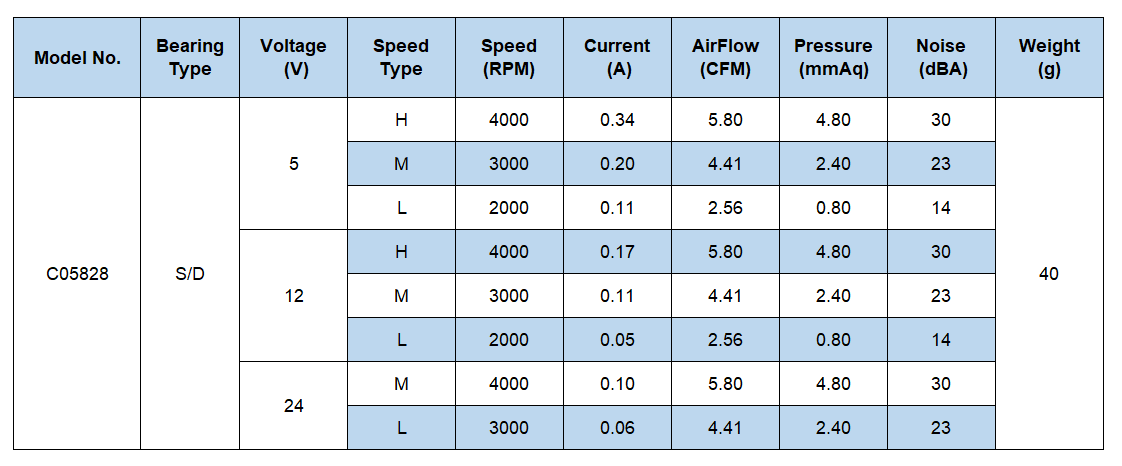

Operating Voltage Range: DC 5V/12V/24V | Current: 0.06 ~ 0.34 Amp | Speed: 2000 ~ 4000 RPM | Airflow: 2.56 ~ 5.80 CFM | Noise: 14 ~ 30 dBA | Pressure: 0.80 ~ 4.80 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

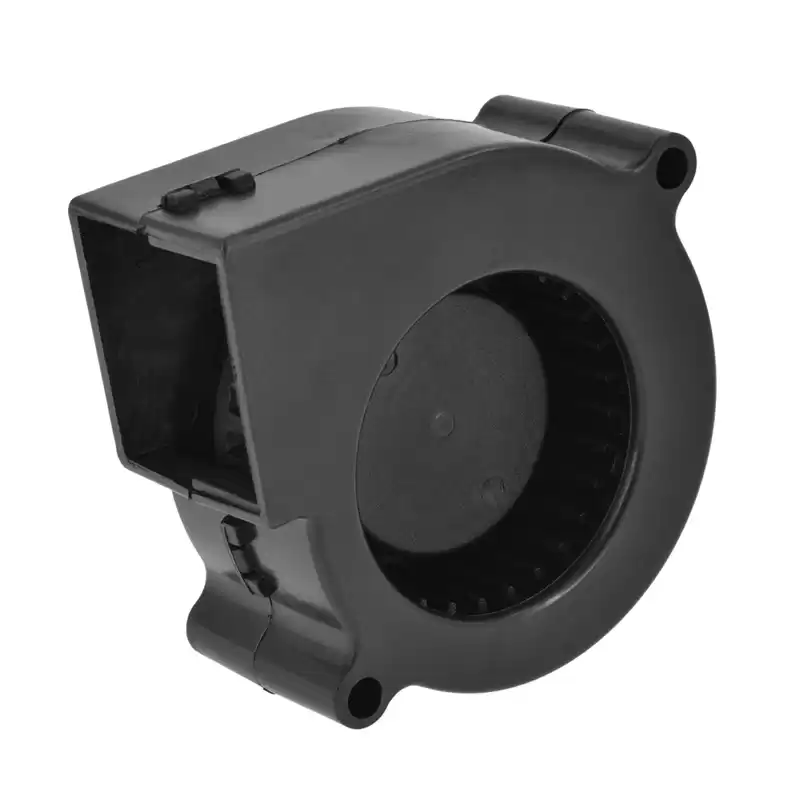

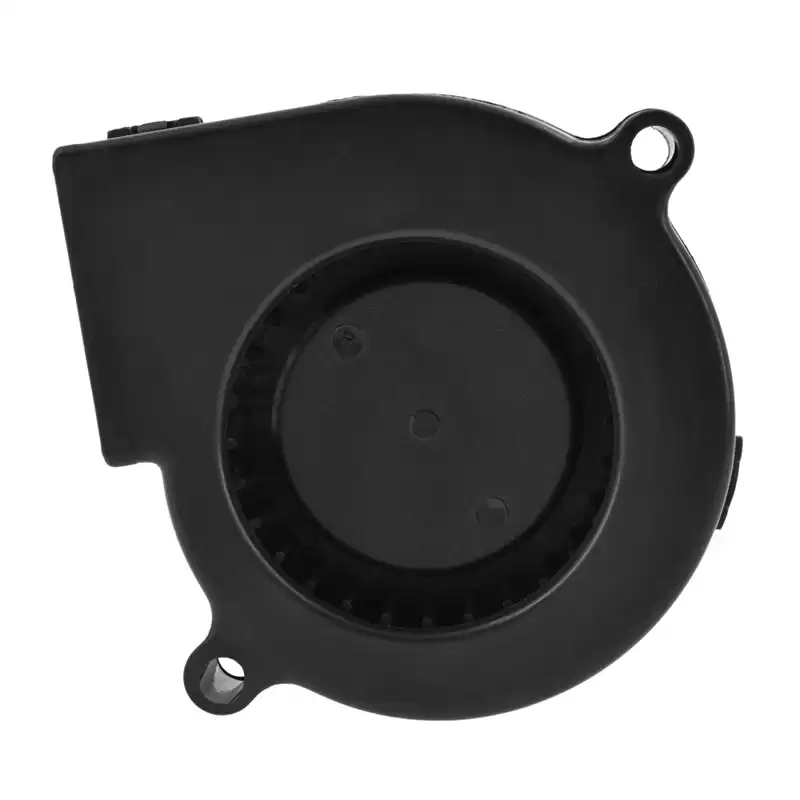

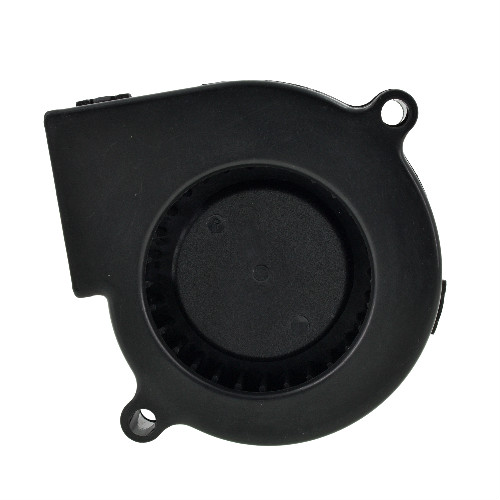

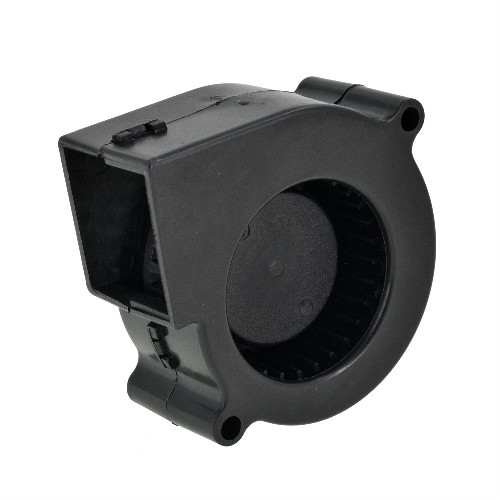

DC BLOWER FAN 58x58x28mm(2.28"x2.28"x1.10")
General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Ball bearing fan has a lifespan of 50,000 hours;
-
Able to change the direction of incoming air by 90˚;
-
The blower fans allows to be laid flat or stand upright;
-
Durable enough to properly operate in the most corrosive and erosive environments;
-
The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
Application
Our DC centrifugal blower fans can be used for ventilation of equipment, such as electronics, 3D printer, vehicle system, CCTV security surveillance systems, medical cosmetic equipments, ect.
-
Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
-
Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
