1. Advantage
. Japanese Nissan engine for optional;
. IMPCO gas conversion device；
. Attractive and unique appearance of the product;
. Wide field of view for operator;
. Big opening angle of the hood makes the easier maintenance.
2. Features

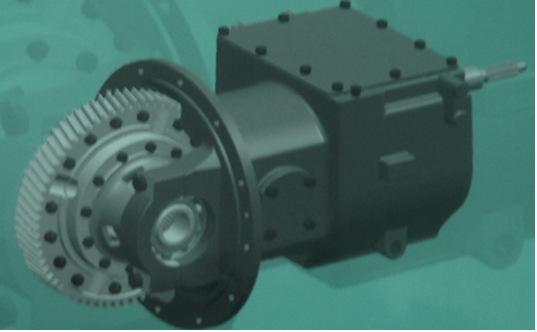

Equipped with a mechanical synchronizer, soft and smooth gear switching, avoid collision between gears to reduce noise, increase gears working life.

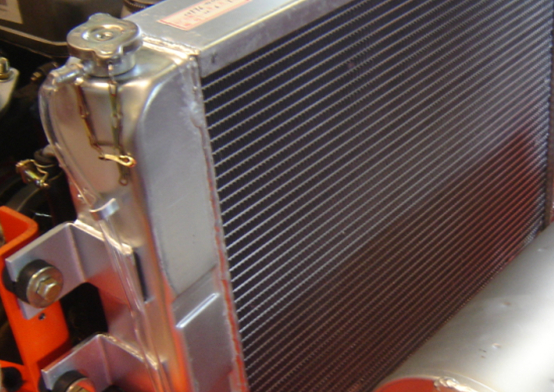

With aluminum radiator which has been widely used on forklift, makes better cooling effect.

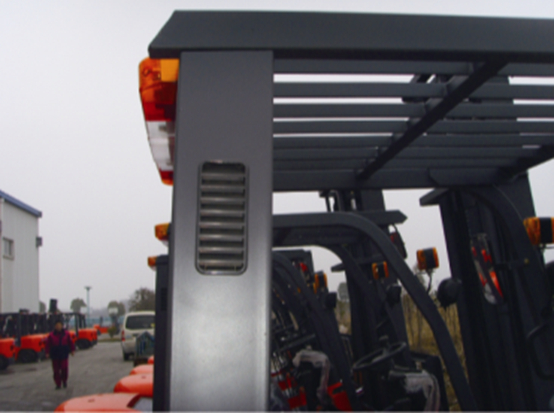

High air intake system, effectively prevent dust being absorbed, therefore extend working life of the engine.

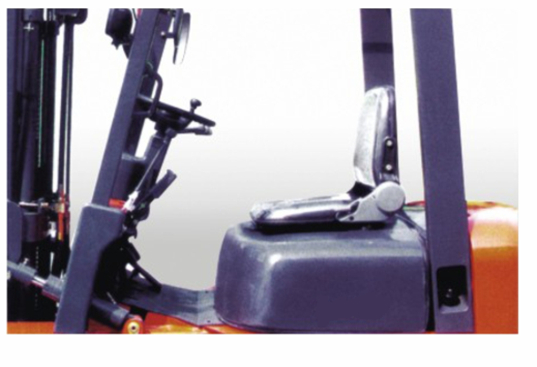

Position of the seat and the angle of the steering wheel are adjustable, improve operating room, makes comfort to drive.

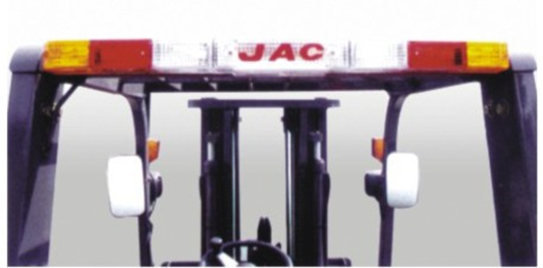

Fashionable appearance, combined tail lamps at the back of overhead guard, noticeable and obvious, provide safer working condition and more suitable for night operations, exterior design obtained national patent.
3. Specification
|
Model
|
CPQYD20
|
CPQYD25
|
CPQYD30
|
CPQYD35
|
|
1
|
Feture
|
Power Type
|
|
LPG
|
LPG
|
|
2
|
Load Capcity
|
kg
|
2000
|
2500
|
3000
|
3500
|
|
3
|
Load center
|
mm
|
500
|
500
|
|
4
|
Lift height
|
mm
|
3000
|
3000
|
|
5
|
Free lift height
|
mm
|
240
|
165
|
|
6
|
Forkk size
|
L*W*H
|
mm
|
1070×122×40
|
1070×125×45
|
1070×125×50
|
|
7
|
Mast tilt
|
FR/RR
|
。
|
6/12
|
6/12
|
|
8
|
Min turning Radius
|
mm
|
2170
|
2230
|
2459
|
2573
|
|
9
|
Min Right angle stacking aisle width
|
mm
|
3655
|
3230
|
3933
|
3573
|
|
10
|
Min right angle aisle width
|
mm
|
2370
|
2430
|
2659
|
2773
|
|
11
|
Min ground clearance
|
mm
|
110
|
110
|
130
|
|
12
|
Height of overhead guard
|
mm
|
2070
|
2090
|
|
13
|
Overhang
|
mm
|
485
|
474
|
|
14
|
Performance
|
Max driving speed
|
Full load
|
km/h
|
19.5
|
19
|
18.5
|
|
15
|
Max Lifting speed
|
Full load
|
mm/s
|
500
|
490
|
420
|
|
16
|
Max drawbar pull
|
Full load
|
KN
|
11.7
|
11.4
|
20
|
28
|
|
17
|
Gradeabiity
|
%
|
20
|
18
|
15
|
|
18
|
Dimension
|
Overall length
|
Without forks
|
mm
|
2505
|
2580
|
2763
|
2799
|
|
19
|
Over width
|
mm
|
1160
|
1230
|
|
20
|
Height mast lifted(with backrest）
|
mm
|
3750
|
4256
|
|
21
|
Height mast lowered
|
mm
|
1995
|
2065
|
2065
|
|
22
|
Chassis
|
Tyre
|
Front
|
|
7.00-12-12PR
|
28×9-15-14PR
|
|
23
|
Rear
|
|
6.00-9-10PR
|
6.50-10-10PR
|
|
24
|
Wheelbase
|
mm
|
1600
|
1760
|
|
25
|
Tread
|
FR/RR
|
mm
|
970/970
|
1000/970
|
|
26
|
Self weight
|
Without load
|
Kg
|
3300
|
3660
|
4140
|
4460
|
|
27
|
Drive
|
Battery
|
Voltage / Capacity
|
V/Ah
|
12/80
|
12/80
|
|
28
|
Engine
|
Model
|
|
BAOFA BF4Y
|
BAOFA BF4Y
|
|
29
|
Rated Power
|
kw/r.p.m
|
36/2500
|
36/2500
|
|
30
|
Rated Torque
|
Nm/r.p.m
|
150/1800
|
150/1800
|
|
31
|
Bore * sTROKE
|
mm
|
91×86
|
91×86
|
|
32
|
No.of Cylinder
|
|
4
|
4
|
|
33
|
Displacement
|
L
|
2.237
|
2.237
|
|
34
|
Fuel tank capacity
|
L
|
55
|
|
35
|
Transmission
|
|
1/1manual shift
|
1/1manual shift
|
|
36
|
Operating Pressure
|
Mpa
|
18.5
|
|
37
|
Supplement
|
Tire type (FR/RR)
|
|
Pneumatic
|
Pneumatic
|
|
38
|
Numbers of wheels
|
pcs
|
2/2
|
2/2
|
|
39
|
lowering speed (full load)
|
mm/s
|
550
|
480
|
493
|
|
40
|
Lowering speed ( unload)
|
mm/s
|
540
|
460
|
463
|
|
41
|
Axle load distribution (full load) (FR/RR)
|
kg
|
4740/660
|
5470/805
|
6272/868
|
7015/945
|
|
42
|
Axle load distribution (unload) (FR/RR)
|
kg
|
1415/1340
|
1475/2305
|
1636/2504
|
1662/2798
|
