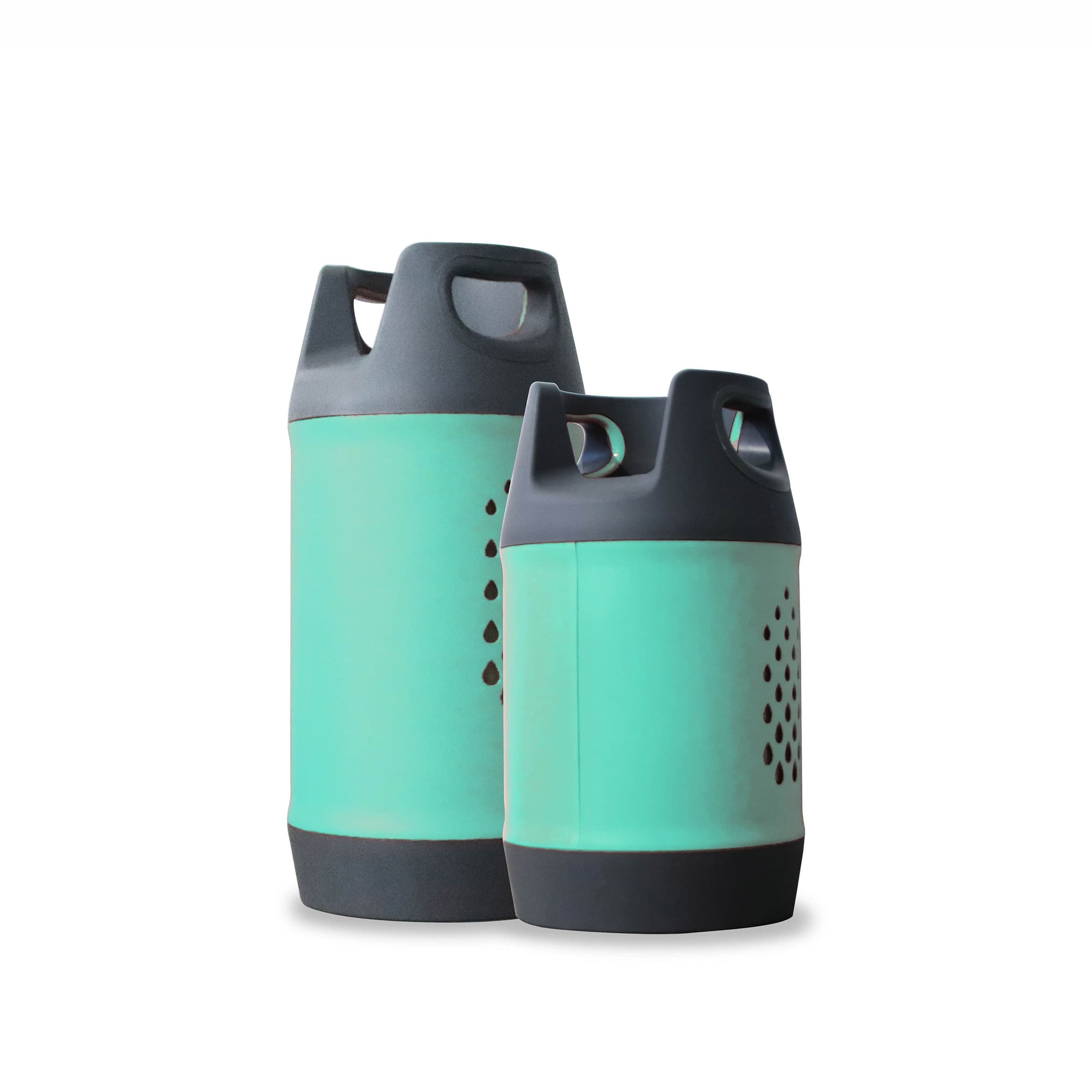

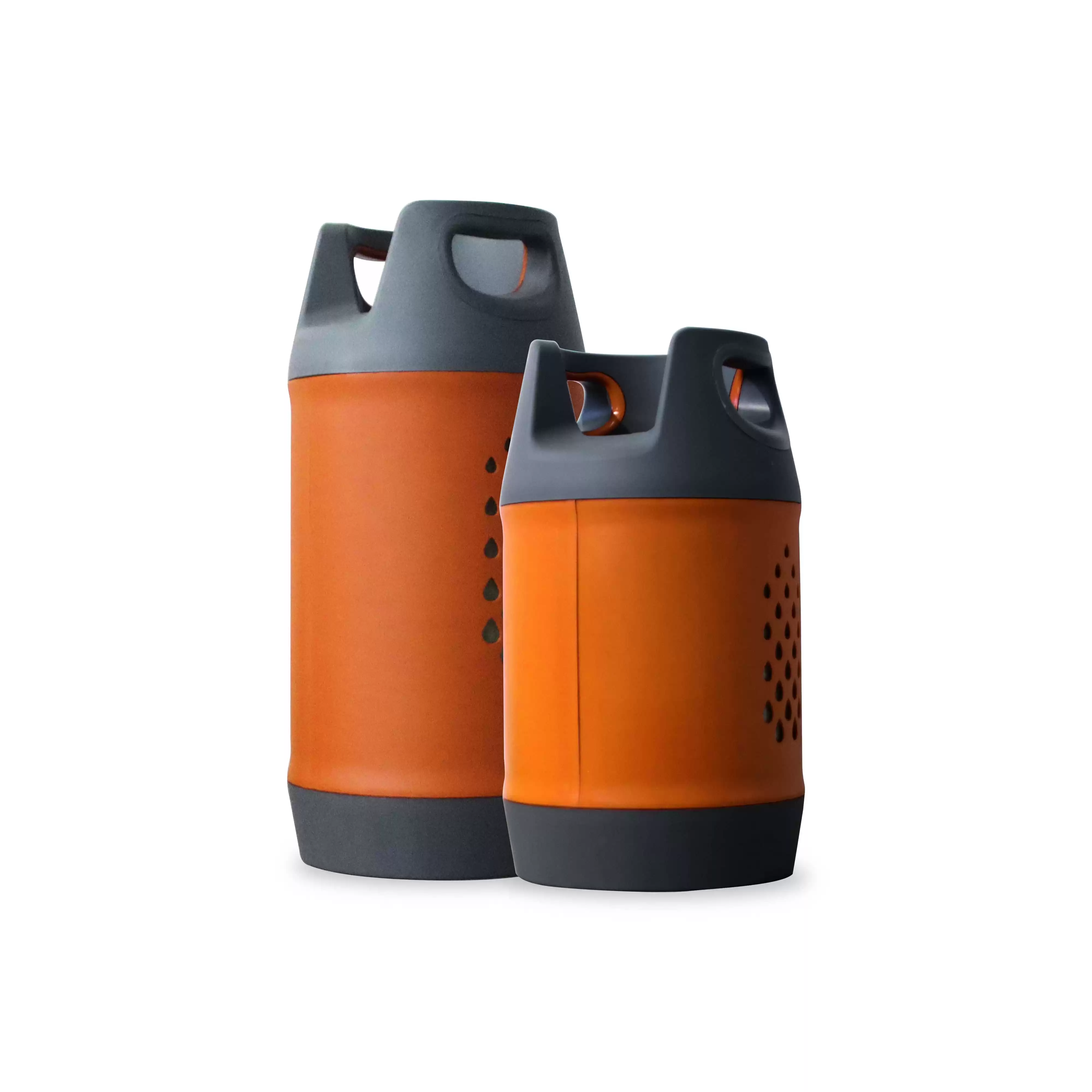

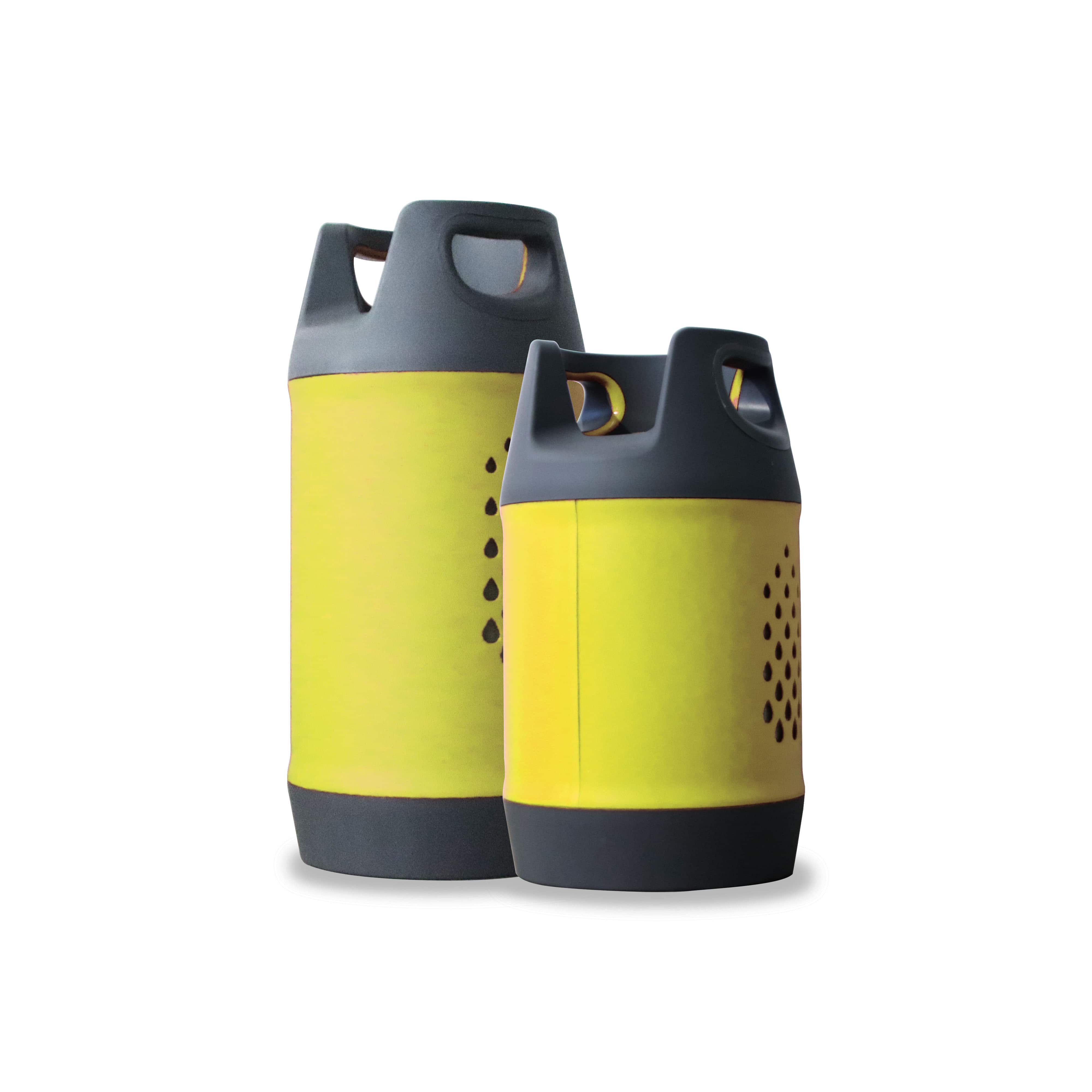

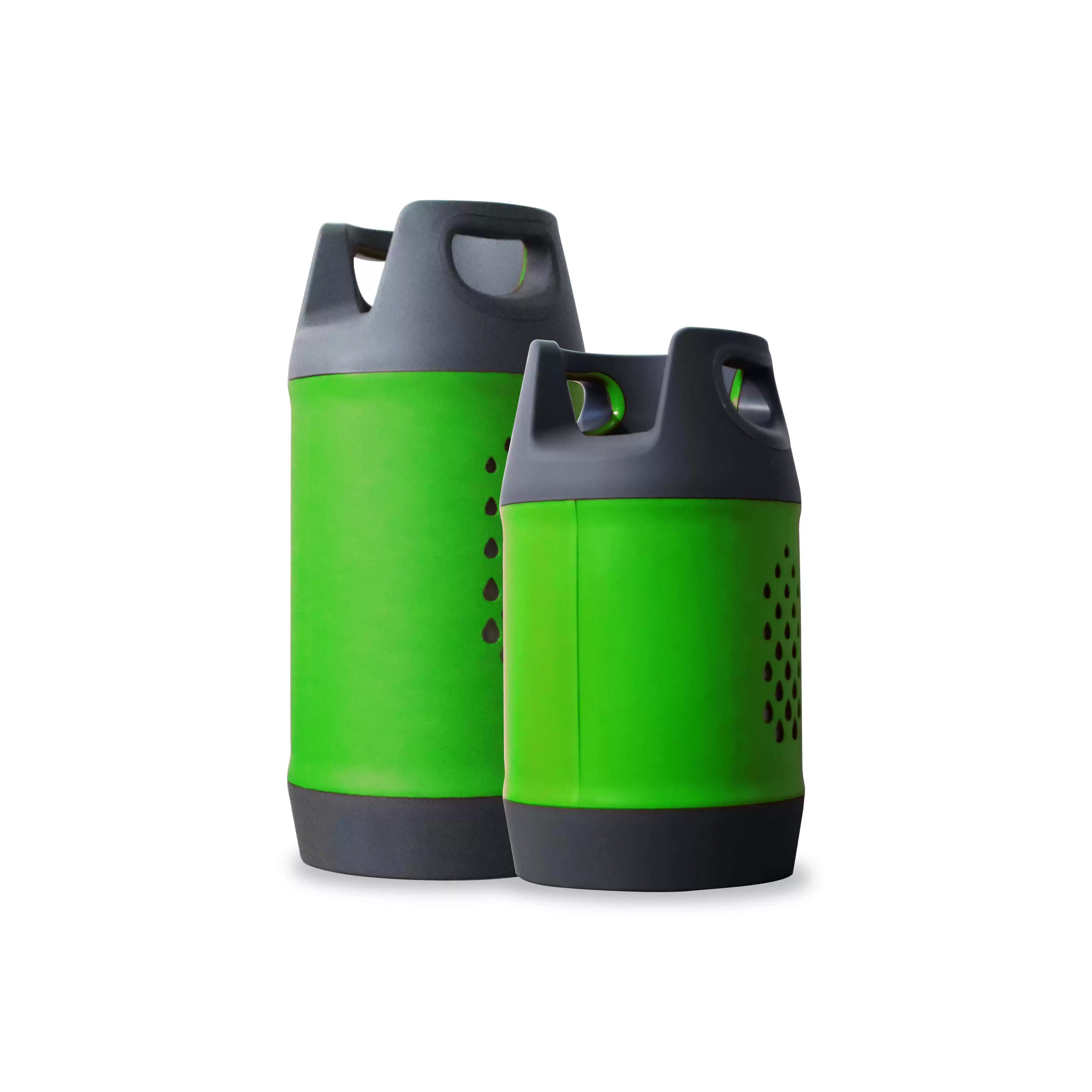

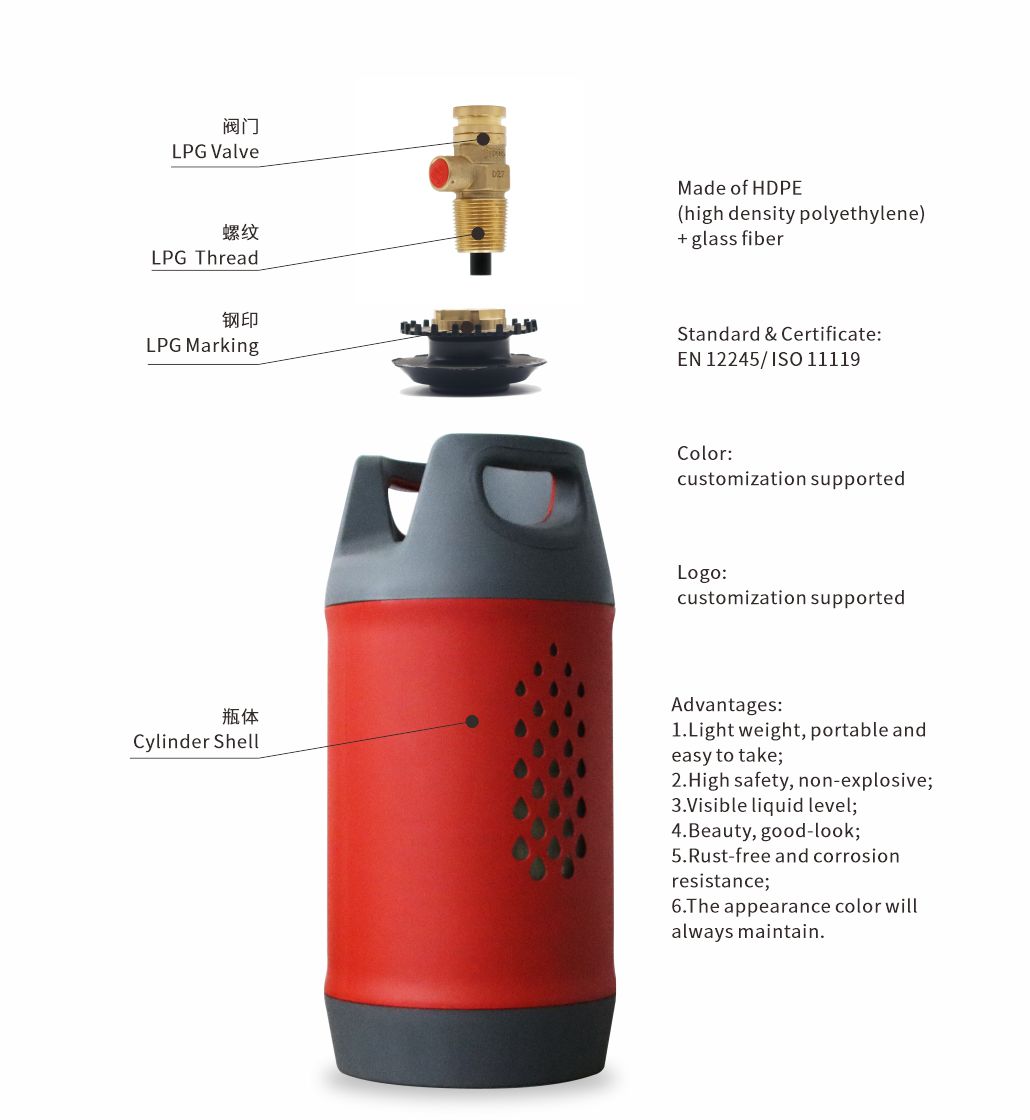

LPG COMPOSITE CYLINDER
We are a professional manufacturer and supplier of LPG cylinders, with years of experience and a dedicated technical team. Our LPG cylinders are made from high-quality materials and undergo rigorous quality testing to ensure safety and reliability. In addition, we offer a variety of customization options to meet customers' different needs. Customers can choose the color, size, valve type, and more for their cylinders according to their needs. We can also customize special logos or markings as per customer's request.
| Mfg. Standard |
Norminal Working
Pressure(Bar)
|
Hyd.test Pressure
(Bar)
|
Design Wall Thickness
(mm)
|
Material |
Outer Diameter
(mm)
|
Water Capacity
(l)
|
Length(mm) |
Weight(kg) |
|
EN 12245
ISO11119-3
|
20 |
30 |
1 |
HDPE |
321 |
12.5 |
400 |
6.95 |
| 321 |
18.2 |
500 |
7.15 |
| 321 |
24.5 |
599 |
7.35 |
| 321 |
26.2 |
624 |
7.40 |
| 321 |
27.4 |
645 |
7.45 |
| 321 |
30.5 |
677 |
7.50 |
| 321 |
34.5 |
764 |
7.67 |
Range of Application:
- Civil field: Gas supply for residential households, such as cooking, heating, etc.
- Commercial catering: All kinds of restaurants, hotels and other commercial places stove fuel supply.
- Gas vehicles: fuel storage containers such as LPG vehicles.
- Portable equipment: Provides a fuel source for certain portable gas equipment.
- Field work: Provide energy support in field construction, camping and other activities.
.
Why Choose Us?
- Strong production capacity：With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
- Direct sales from the source factory：By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
- 10 years of industry experience：The factory holds IATF 16949 and ISO 9001 quality management system certificates,
- Customization capability：Our products can be customized according to your preferences, including color, size, thread, and logo.

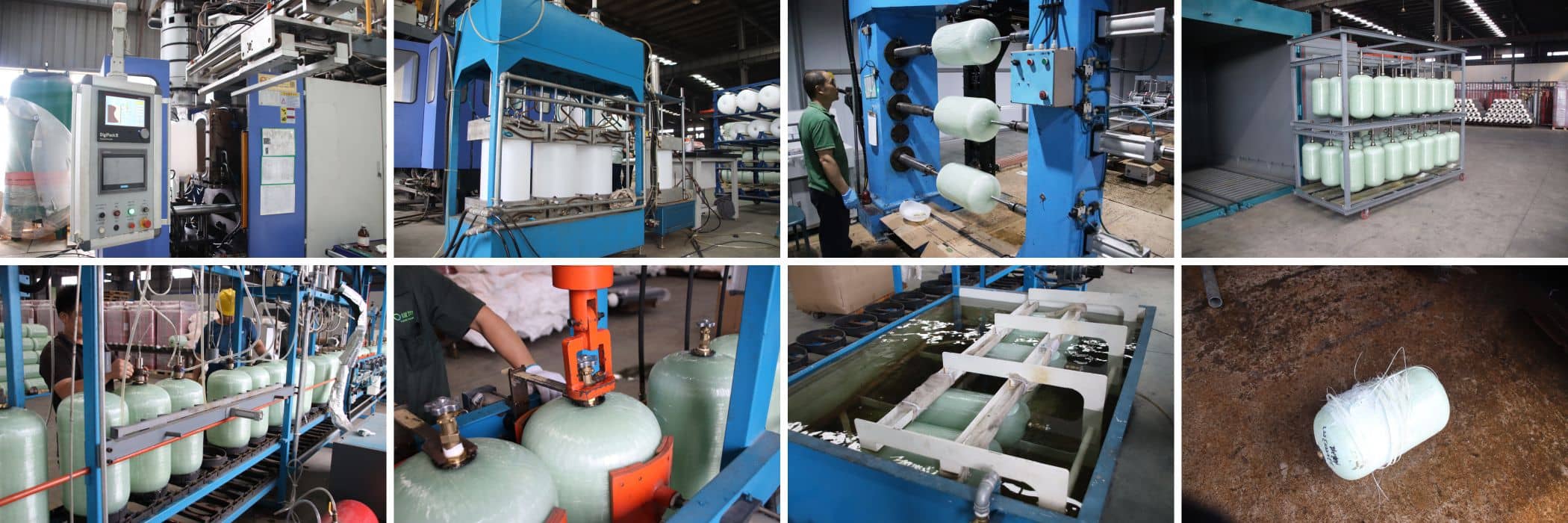

- At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line
Quality Control
Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.
Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters. We currently have a workforce of 240 employees, including 50 senior technical and management personnel. Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
