LR 50/8 NPPU Guide Roller Track Roller Bearing Introduction :
Bore diameter：0.315 Inch | 8 mm
Outer diameter: 0.945 Inch | 24 mm
Width: 0.433 Inch | 11 mm
Weight: 0.027 kg

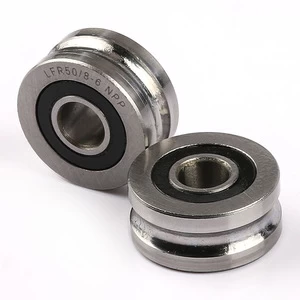

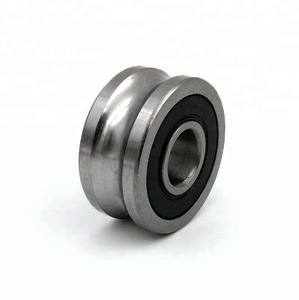

Track Rollers Bearing Picture :
We can produce other track roller for you ,below here is some bearing number for your reference :
|
Bearing Model
|
Inside Dia.(mm)
|
Outside Dia.(mm)
|
Thickness(mm)
|
Weight(KG)
|
|
LR50/5-2RSR
|
5
|
17
|
7
|
0.01
|
|
LR50/6-2RSR
|
6
|
19
|
9
|
0.02
|
|
LR50/7-2RSR
|
7
|
22
|
10
|
0.02
|
|
LR50/8-2RSR
|
8
|
24
|
11
|
0.03
|
|
LR5000-2RS
|
10
|
28
|
12
|
0.03
|
|
LR5001-2RS
|
12
|
30
|
12
|
0.03
|
|
LR5002-2RS
|
15
|
35
|
13
|
0.05
|
|
LR5003-2RS
|
17
|
40
|
14
|
0.07
|
|
LR5004-2RS
|
20
|
47
|
16
|
0.12
|
|
LR5005-2RS
|
25
|
52
|
16
|
0.15
|
|
LR5006-2RS
|
30
|
62
|
19
|
0.25
|
|
LR5007-2RS
|
35
|
68
|
20
|
0.30
|
