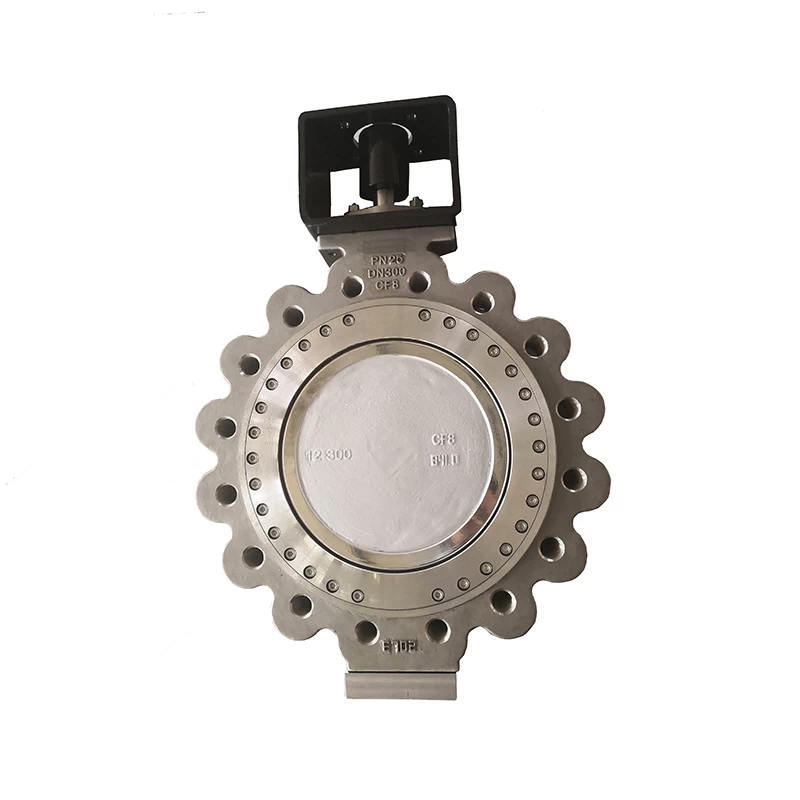

Lug Type Stainless Steel High Performance Butterfly Valve
FEIDA high performance butterfly valve is an innovative double offset design product with advanced world leading technology. This butterfly valve has a unique structure with ultra reliable sealing performance, wide working conditions and low operation torque.
Main product features:
1. One million operations
2. Zero leakage in both direction
3. Easy maintenance
4. Independent and internal test
Product Description
Design
|
API 609/ASME B16.34
|
End Connection
|
Wafer/Lug/Double flanged
|
Operation
|
Manual/Pneumatic/Electric
|
Size Range
|
NPS 2"-60"(DN50-DN1500)
|
Pressure Rating
|
ASME Class150-300-600(PN16-PN25-PN40)
|
Body Material
|
Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
|
Seat Material
|
PTFE, RPTFE, PPL
|
Temperature
|
-29β to 250β
|
Application: Petrochemical, Water treatment, PSA(Pressure Swing Adsorption), Power plant, Dry air compressor etc.
