Applications:

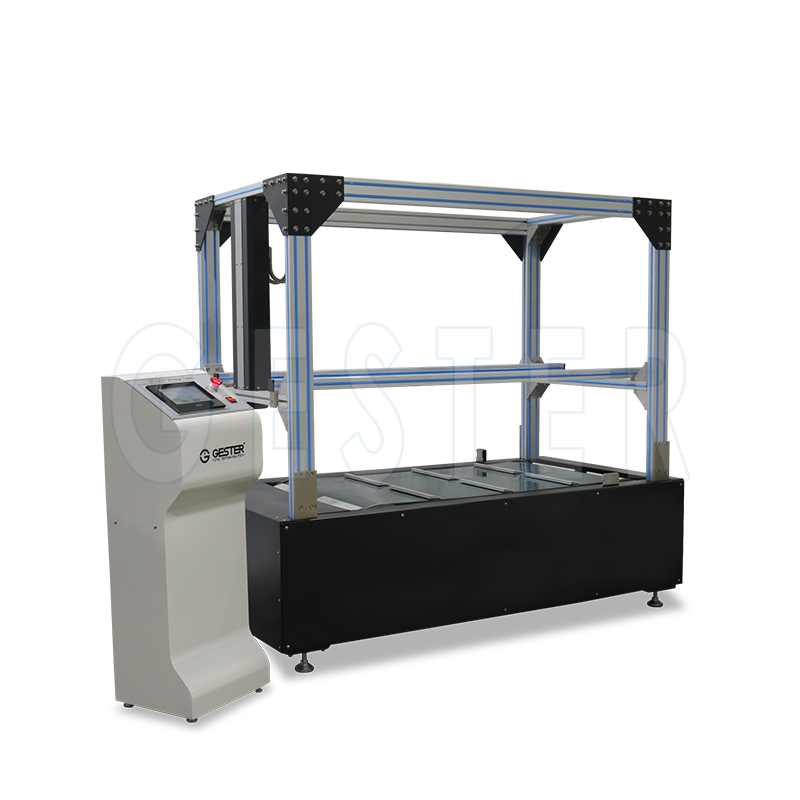

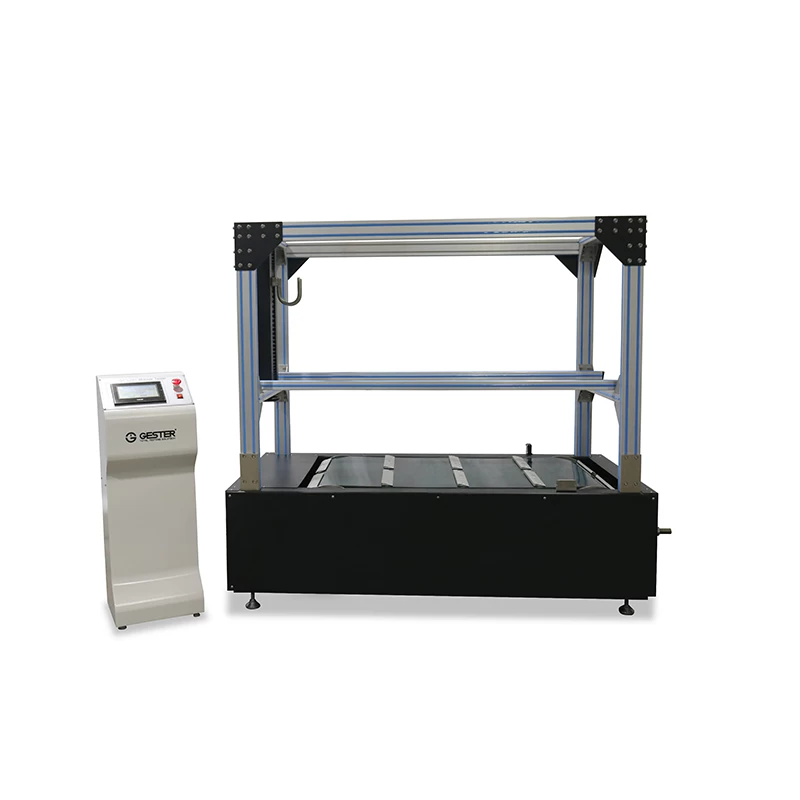

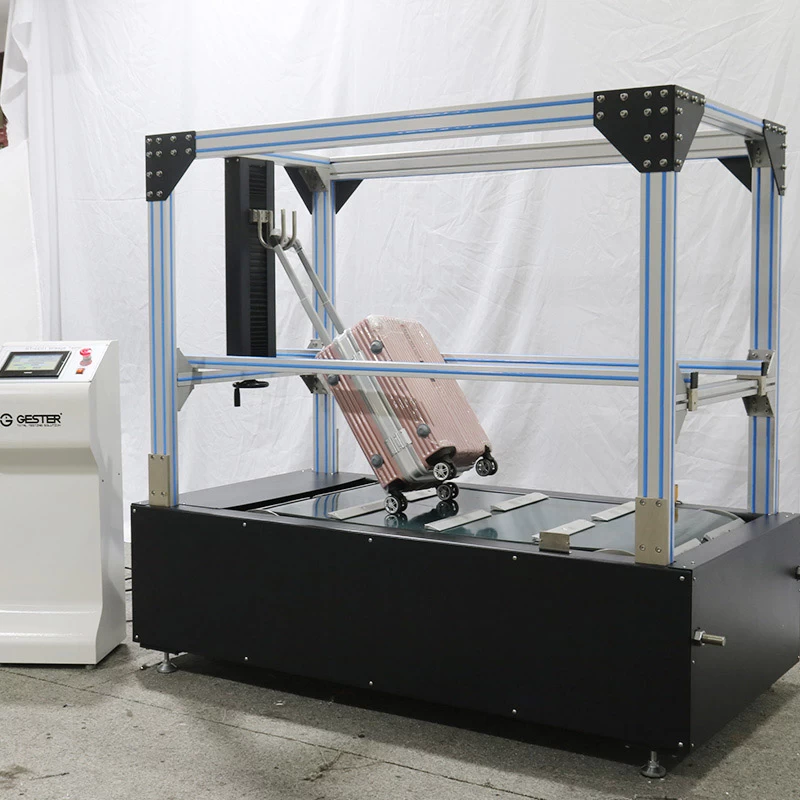

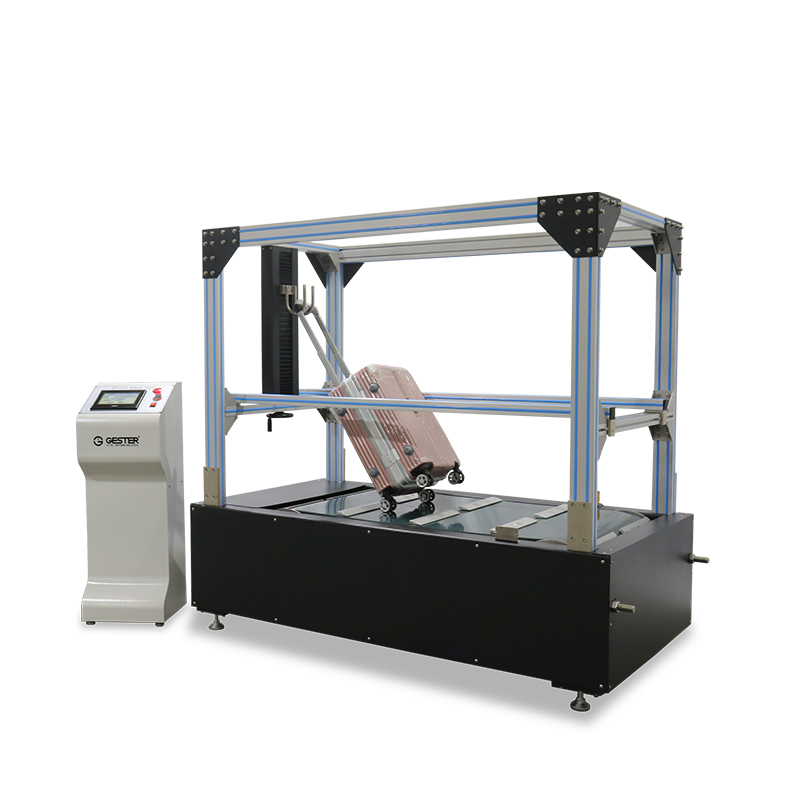

Luggage Walked Wear Test Machine simulating the situation when luggage moves and keep it in continuous testing, is to test the quality of wheels, axle, wheel frame, tie rod and luggage, calculate and evaluate the wear value of wheels. Put moderate weights in the testing sample. When the conveyor belt travels, the friction plate and the sample wheel will collide and rub with each other, and the sample is subjected to shock oscillation and wear.
Standards:
QB/T2920--2018
|
Character:
GESTER develops the control system by ourselves, which has setting and counting functions.There are start, stop, pause, count and clear functions on the test control panel. It can count from 0 to 999,999 times. The machine will automatically stop when the times reaches the setting number or the wheel of luggage is broken. The Controlling System controls motor to drive the belt to rotational motion, the luggage will rise and fall when wheels reach the block A/B, and that will simulate the situation of different roads and is the important basis to evaluate the quality of luggage.
Key Specifications
|
Model
|
GT-LC01
|
|
Control System
|

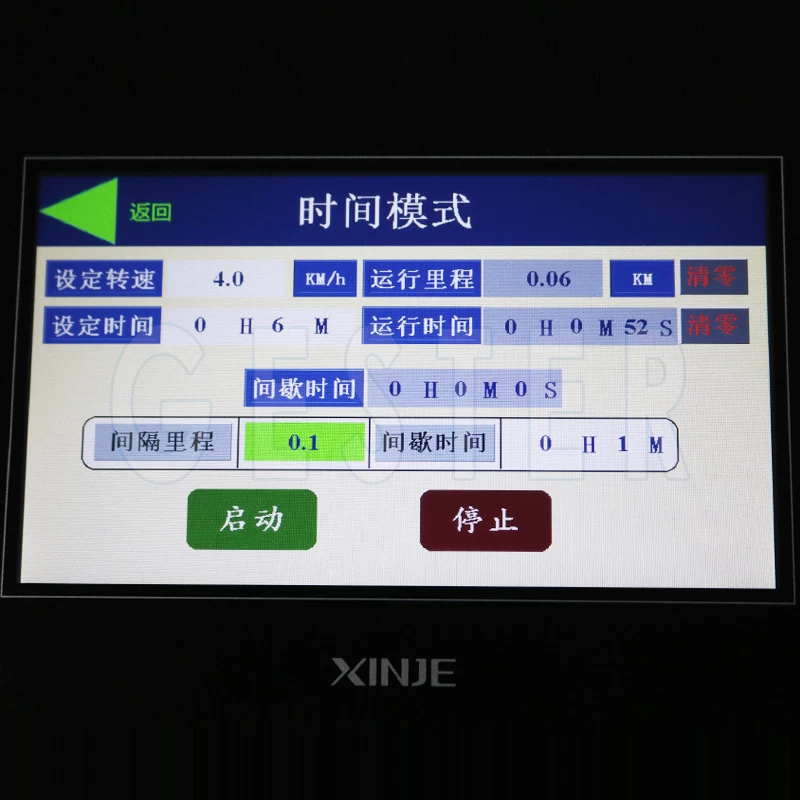

PLC+ Touch Screen
(Man-machine interface control system with easy operation and power-off saving function)
|
|
Counting
|
0-999,999 times, automatically stop the machine when reach the times. The cycle times could be set in the Touch screen.
|
|
Mileage
|
Mileage could be set, automatically stop the machine when reach the mileage.
|
|
Conveyor belt
|
Length is ( 3300土5) mm, there are friction plates in the surface, arranged in 2 lines on the direction of movement averagely.
|
|
Friction plate
|
Made by aluminium, hardness HB(40土5)，length(300土2).
|
|
Controlling device
|
Speed, mileage, testing time are adjustable, and it has saving function. All controlling programs is controlled by PLC, could be used to set the mileage, testing time and numbers of cycle.
|
|
Belt
|
Wear-resisting belt, which has long working time
|
|
Power supply
|
380v,50/60HZ
|
|
Weight
|
800kg
|
|
