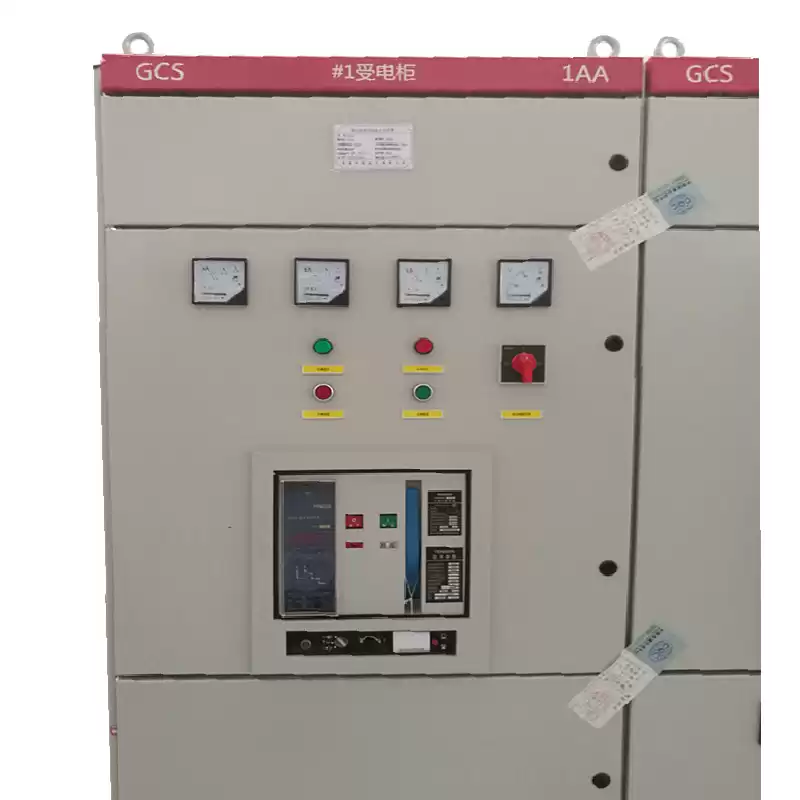

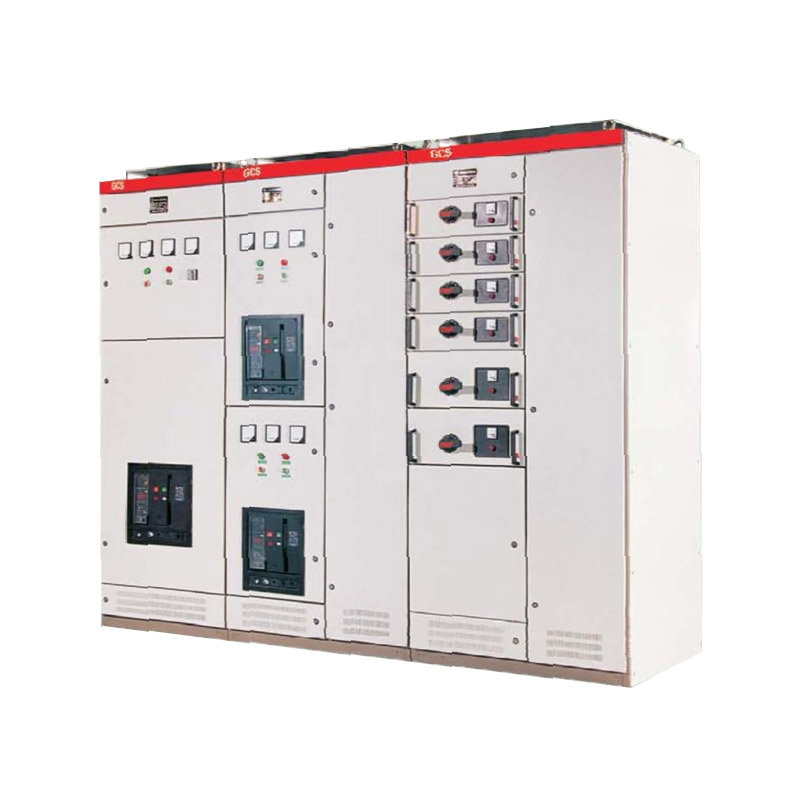

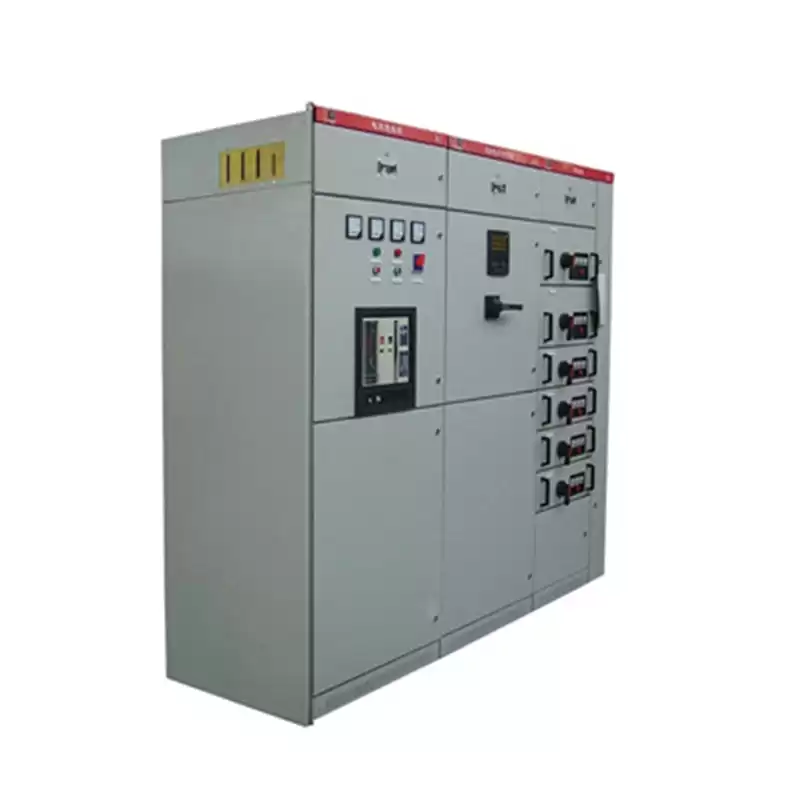

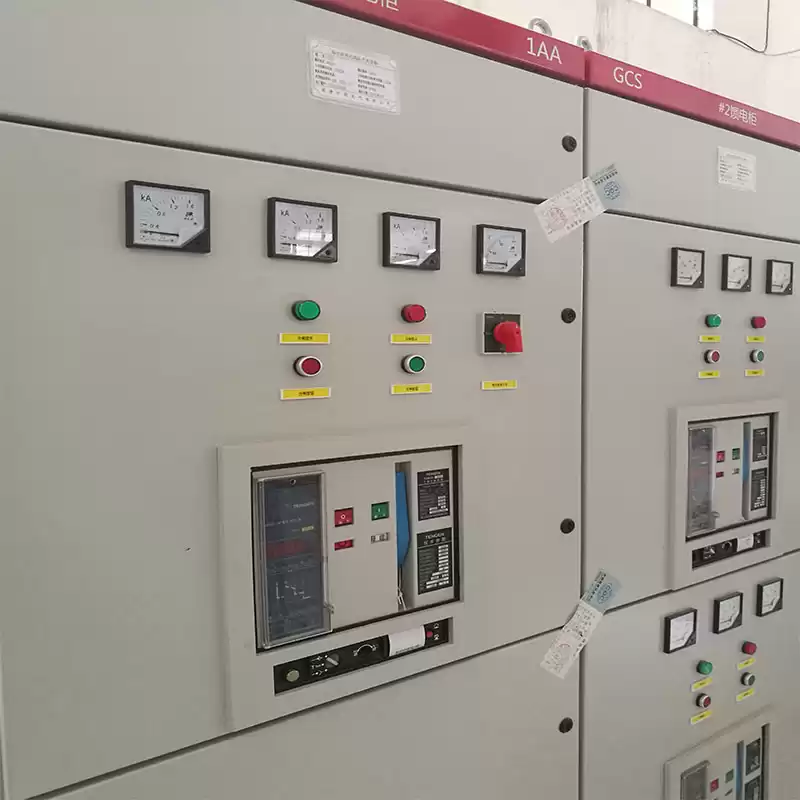

Our low-voltage switchgear equipment covers GGD, GCK, GCS, GGJ, GDF fixed partition, MNST, 8PT Siemens authorization, XL-21 power cabinet, XL distribution box, XM lighting distribution box, XC metering box, JP low-voltage integrated distribution box , XFW low voltage cable branch box, DXW terminal box.
1. The assembly form of the main frame is designed into two types, the fully assembled structure and partially welded construction (side frame and beam), for users to choose.
2. The functional rooms of the device are isolated from each other. The compartments are divided into functional unit compartments, bus compartment and cable compartment.The functions of each compartment are relatively independent.
3. The horizontal main bus is arranged in the form of flat arrangement behind the cabinet to enhance the electric power of the bus, which is the basic measure to make the main circuit of the device have high short-circuit strength.
4. The design of cable compartment makes it very convenient for the cable to go in and out.
|
Rated voltage of main Circuit（V）
|
AC 380（400）、（660）
|
|
Rated voltage of auxiliary circuit（V）
|
AC 220、380（400）、DC 110、220
|
|
Rated frequency（Hz）
|
50/60
|
|
Rated insulation voltage（V）
|
660（1000）
|
|
Rated current（A）
|
Horizontal bus
|
≤4000
|
|
Vertical bus MCC
|
1000
|
|
Bus rated short-time withstand current（kA/1s）
|
30、50、80
|
|
Bus rated peak withstand current（kA/0.1s）
|
63、105、176
|
|
Power frequency test voltage（V/1min）
|
Main circuit
|
2500
|
|
Auxiliary circuit
|
2000
|
|
Bus
|
Three-phase four-wire system
|
A、B、C、PE、N
|
|
Three-phase five-wire system
|
A、B、C、PE、N
|
|
IP grade
|
IP30
|
1. Altitude ≤2000m
2. Indoor without fire, explosion risk, severe dust, violent vibration and rain attack
3. The ambient air temperature shall be no higher than +40℃, and the average temperature within 24 hours shall be no higher than +35℃ and no lower than -5℃. The minimum temperature under storage and transportation conditions shall be -30℃
4. The air should be clean, and the relative humidity should not exceed 50% at the highest temperature +40℃, while a higher relative humidity is allowed at a lower temperature, such as 90% at +20℃
5. The pollution level is level 3
Q: Are you the manufacturer or trader?
A: We are both manufacturer & trader. We have our own manufacturer named TIANYI TONGYI ELECTRIC CO.,LTD, who have 27 years experience in electric industry. It covers an totally area of 117,000 m2 with 300 employees, also is a qualified supplier of China National Nuclear Corporation(CNNC) and main supplier for State Grid & China Southern Power Grid.
Q: What is your after-sales service?
A: We always provide free online service and technical support within 24 hours. 18 months warranty for customers.
Q: What is your delivery time?
A: Normally 25~35days. It depends on the order quantity and season. We have very strong capacity to produce top quality products, please inquiry us if you have any questions.
Q: What is the quality warranty time?
A: We have quality certificate CCC, CQC, ISO9001, CE ... Meanwhile, we can provide 18 months warranty for our products. Free online service and technical support within 24 hours is always provided to our customers.
Q: Do you accept ODM and OEM?
A: Yes. We have professional R & D teams to update and develop the latest technology. We also can support ODM or OEM, please send us details drawing to discuss.
Q: What is your payment terms?
A: Generally there are two payment terms:
a) 30% advance payment via T/T as a deposit, balance 70% against the shipping documents
b) Irrevocable L/C at sight
Q: If I want to visit you, how to go?
A: Our factory is located in Luoyuan County, Fuzhou City. Details address is Songshan Area, Taiwan Investment Zone, Luoyuan County, Fuzhou City, Fujian Province,China.
a) The nearest airport is Fuzhou Airport, if you come by air, please arrive in Fuzhou Airport, it takes 1 hour from the airport to our factory
b) The nearest train station is Luoyuan Station, if you come by train, please arrive in Luoyuan Station, it takes only 5 minutes to our factory.
Anyway, please contact us in advance, we will send the car to the airport or train station to pick you up.Sincerely welcome you to come and visit us.
Q: Do you need agents?
A: Yes, we welcome you to be a partner. Welcome to contact us for more information.
