Features
■International standards is used and the product can replace similar imported products;
■Anti-corrosion and anti-rust material are used, suitable for the sanitary industry;
■Quick-connect structure is used, easy to install and maintain;
■High precision and good repeatability;
■High quality turbine, beyond the conventional range.

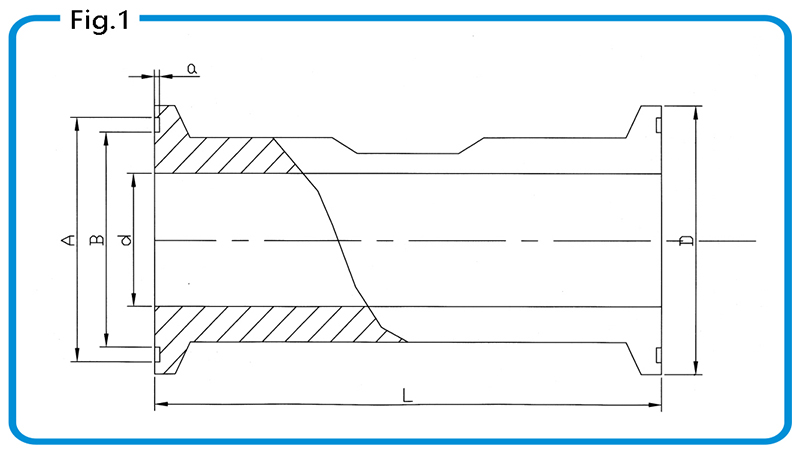

Dimensional drawing Tabke 1
|
Caliber
Size
|
D（mm）
|
A（mm）
|
B（mm）
|
d（mm）
|
L（mm）
|
|
DN4
|
Ф50
|
Ф45
|
Ф40.5
|
4
|
100
|
|
DN6
|
6
|
|
DN10
|
10
|
|
DN15
|
15
|
|
DN20
|
20
|
|
DN25
|
25
|
|
DN32
|
32
|
|
DN40
|
Ф64
|
Ф59
|
Ф53.5
|
40
|
140
|
|
DN50
|
Ф77
|
Ф73.5
|
Ф68.5
|
50
|
150
|
|
DN65
|
Ф91
|
Ф86
|
Ф80.5
|
65
|
170
|
|
DN80
|
Ф106
|
Ф100. 5
|
Ф94
|
80
|
200
|
|
DN100
|
Ф1I9
|
Ф113
|
Ф106
|
100
|
220
|
Note: D dimension is the size of matching clamps.
Meter Selection Table 2
|
Model
|
Description
|
|
LWGS-
|
□
|
/□
|
/□
|
/□
|
/□
|
/□
|
/□
|
|
Nominal diameter
|
4
|
|
|
|
|
|
|
4mm
|
|
6
|
6mm
|
|
10
|
10mm
|
|
15
|
15mm
|
|
20
|
20mm
|
|
25
|
25mm
|
|
32
|
32mm
|
|
40
|
40mm
|
|
50
|
50mm
|
|
65
|
65mm
|
|
80
|
80mm
|
|
Type
|
N
|
Sensor type: +12V or +24V power supply, output three-wire pulse signal
|
|
A
|

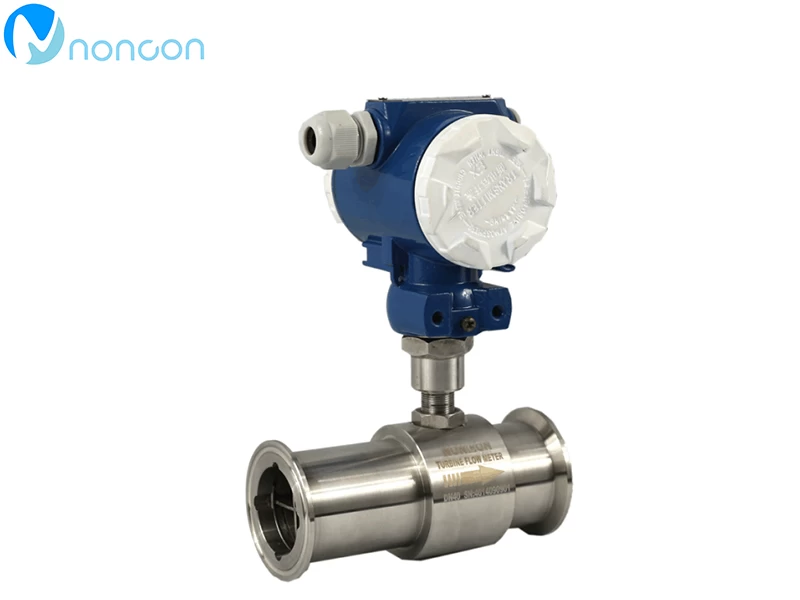

Transmitter type: +24VDC power supply, output two-wire 4 ~ 20mA
|
|
B
|
Intelligent type: lithium battery power, no signal output field display
|
|
C
|

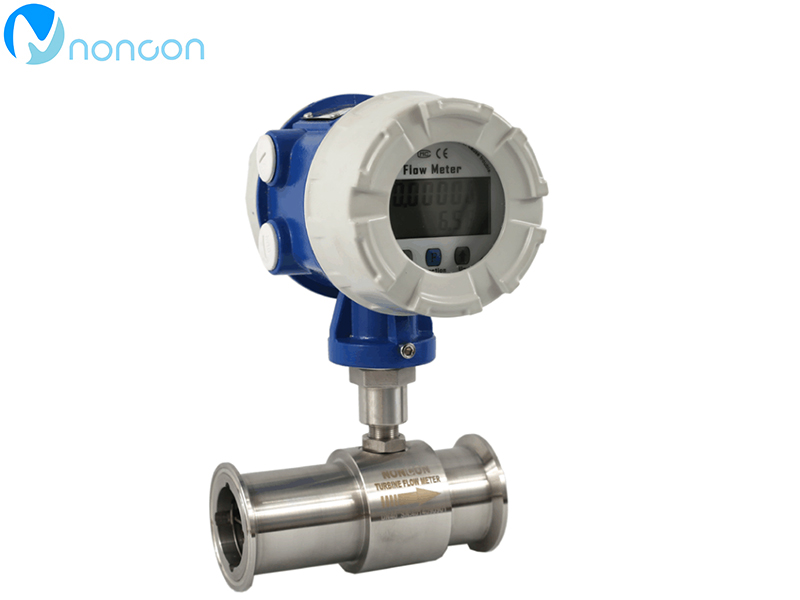

Intelligent type: +24V power supply, field display and output 2-wire system 4~20mA
|
|
C1
|
Intelligent type: +24V power supply, field display and RS485 communication protocol
|
|
C2
|
Intelligent type: +24V power supply, field display and HART communication protocol
|
|
Accuracy grade
|
05
|
0.5 grade
|
|
10
|
1.0 grade
|
|
02
|
0.2 grade (need to negotiate orders, production cycle is longer)
|
|
Turbine type
|
W
|
Extended measurement range
|
|
S
|
Standard measurement range
|
|
Explosion proof
|
N
|
Non-explosion proof type
|
|
E
|
Explosion-proof tyoe，EXDIICT 6
|
