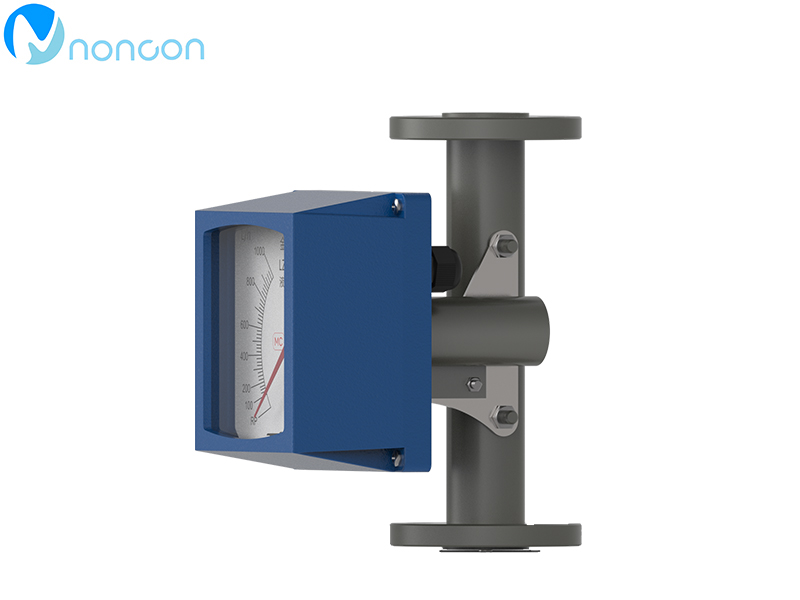

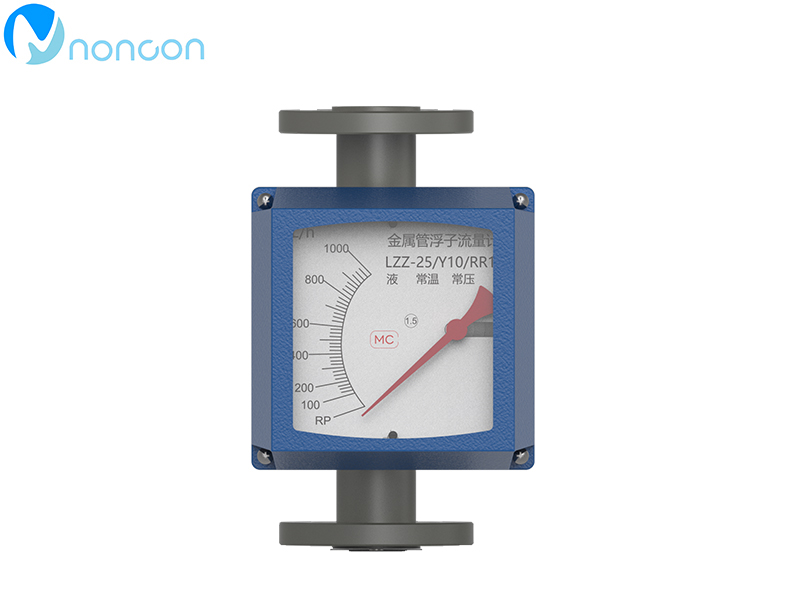

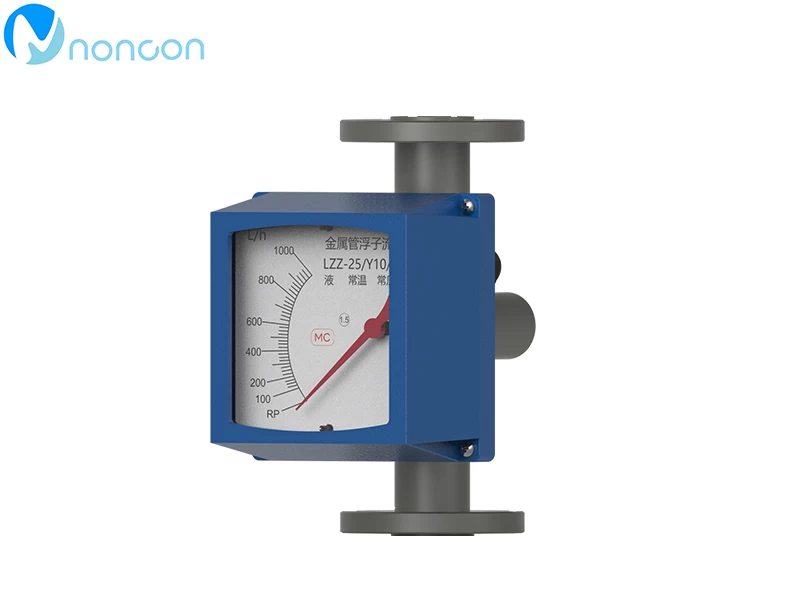

Product features
Modular combination design, easy maintenance, normal use without maintenance
Uniaxial non-contact new magnetic coupling structure, more stable signal transmission
Double lines, large screen LCD display instantaneous, cumulative flow, with backlight
Intelligent with power down protection, data backup and recovery functions
All metal structure, anti - seismic, pressure - resistant, temperature - resistant, anti - corrosion
Short stroke, total height 250mm, more convenient design and installation
Technical parameters
|
Measuring range
|
Water (2.5-10000L/h)
|
|
Air （0.07-3000m3/h）
|
|
Range ratio
|
10:1 (special type 20:1)
|
|
Precision grade
|
1.5 (special type 1.0)
|
|
Work pressure
|
DN15~DN50 PN4.0MPa（special type 25MPa）
|
|
DN80~DN100 PN1.6MPa（special type 16MPa）
|
|
Jacket pressure class: 1.6MPa
|
|
Medium temperature
|
Standard -8~+220℃
|
|
High temperature type 300℃
|
|
Lining PTFE type ≤85℃
|
|
Environment temperature
|
-40℃~+120℃ (electric remote transmission type ≤6℃)
|
|
Medium viscosity
|
DN15：≤ 5mPa.s(H15.1~H15.3)
≤ 30mPa.s(H15.4~H15.9)
|
|
DN25：≤250mPa.s
DN50~DN150：≤300mPa.s
|
|
LCD
|
Instantaneous flow display value range 0~50000
|
|
Cumulative flow display value range: 0~99999999
|
|
Output
|
Standard two-wire system 4 ~ 20mA
|
|
Minimum pulse interval is 50ms
|
|
Alarm signal: open collector, MAX100mA@30VDC
|
|
Power supply
|
Standard 4VDC(10.8VDC ~ 36VDC)
|
|
AC 220VAC(85 ~ 265VAC)
|
|
Battery: 3.6@4AH NiMH battery
|
|
Connection method
|
Standard DIN2501 flange
|
|
Special type: flange standard provided by customer
|
|
Threaded connection type: DIN1851 or user specified
|
|
Electrical interface
|
M20×1.5、PG11、1/2”NPT
|
|
Overall height
|
Standard type: 250mm (except for other installation methods)
|
|
Protection level
|
IP65
|
|
Explosion-proof mark
|
Intrinsic Safety ExiaIICT 3 ～6
|
|
Flameproof
|
ExdIIBT4
|
Installation instructions
(1) During the installation of the flowmeter, the perpendicularity of the measuring pipe should be guaranteed to be greater than 5%, and a bypass should be installed to facilitate maintenance and cleaning without affecting production.
(2) The position where the flowmeter is installed shall ensure that there is a straight pipe section with an inlet value of 5DN and an outlet value of 250mm;If the medium contains ferromagnetic material, the magnetic filter should be installed before the flow meter.(see the figure of magnetic filter and straight pipe).
(3) The control valve in the measurement and control system should be installed downstream of the flow meter.For gas measurement, the working pressure shall not be less than 5 times of the pressure loss, so as to make the flow meter work stably.
(4) Before installing the flow meter, the welding slag in the pipeline should be blown clean;Remove stop elements from the flow meter during installation;After installation, the control valve should be opened slowly to avoid impact damage to the flow meter.
(5) For the LZ1 0 standard type, LZ15 horizontal installation of metal tube float meter can choose the built-in magnetic filter.The total height of the LZ10 standard with built-in magnetic filter is 350mm.

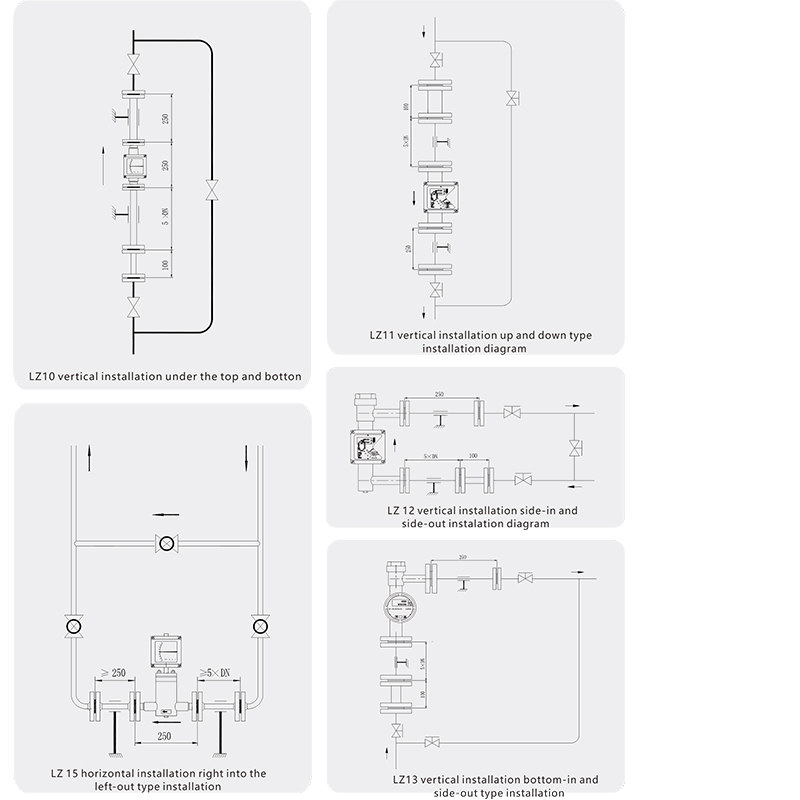

(6)Flow meter installation diagram
