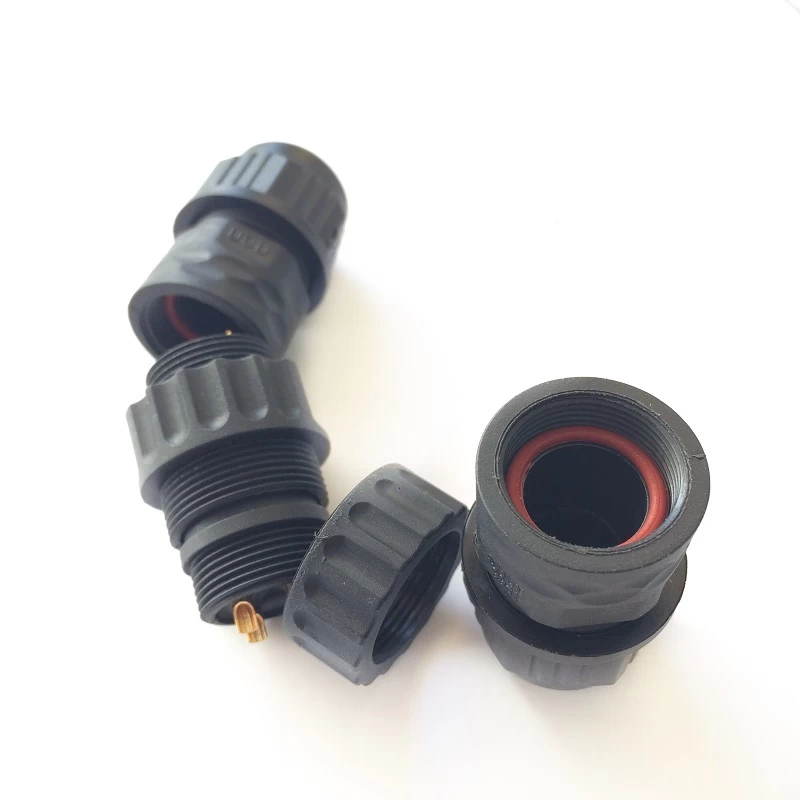

1.Technical Parameter
|
Numbers of Cores
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
Rated Current (A)
|
15A
|
10A
|
5A
|
5A
|
5A
|
5A
|
5A
|
|
Rated Voltage(V)
|
250V
|
250V
|
110V
|
110V
|
110V
|
110V
|
110V
|
|
The Withstand Voltage(AC.V) 1min
|
1500V
|
1500V
|
1500V
|
1000V
|
1000V
|
800V
|
800V
|
|
|
2
|
2
|
2
|
5
|
5
|
5
|
5
|
|
Insulation resistance (m Ω)
|
|
2000
|
2000
|
2000
|
2000
|
2000
|
2000
|
2000
|
|
Wire Gauge
|
<=1.5 mm2
|
<=1.5 mm2
|
<=1.5 mm2
|
<=1.0 mm2
|
<=0.5 mm2
|
<=0.5 mm2
|
<=0.3 mm2
|
|
Cable OD
|
5.0-8.5 mm
|
|
Mechanical Life
|
3000 mating cycles
|
|
Waterproof Level
|
IP67 IP68
|
|

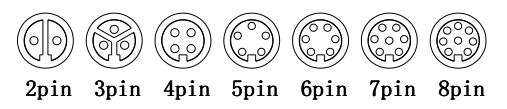

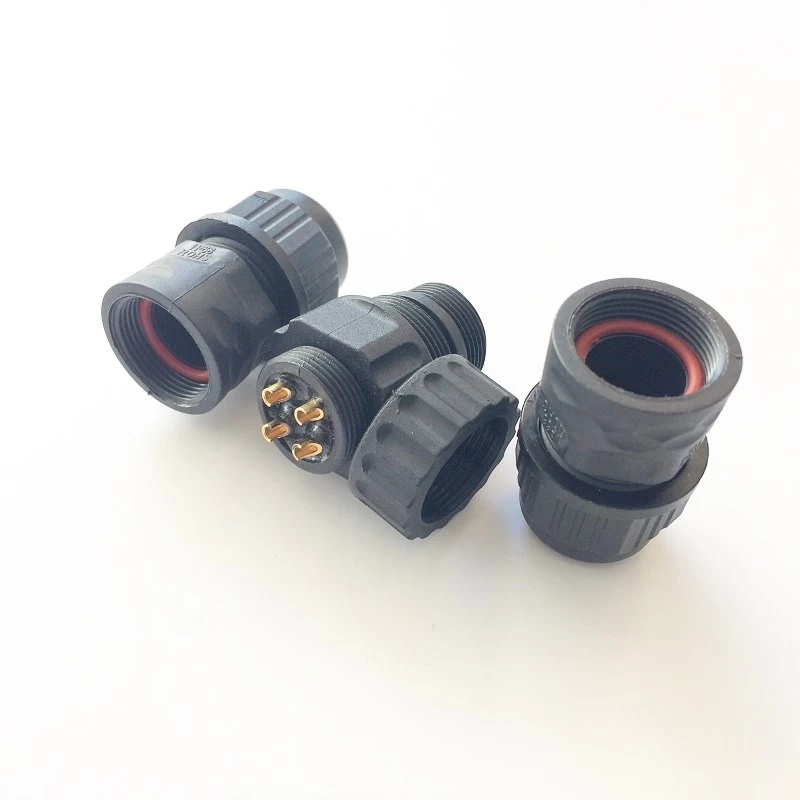

Pin Layout
|
|

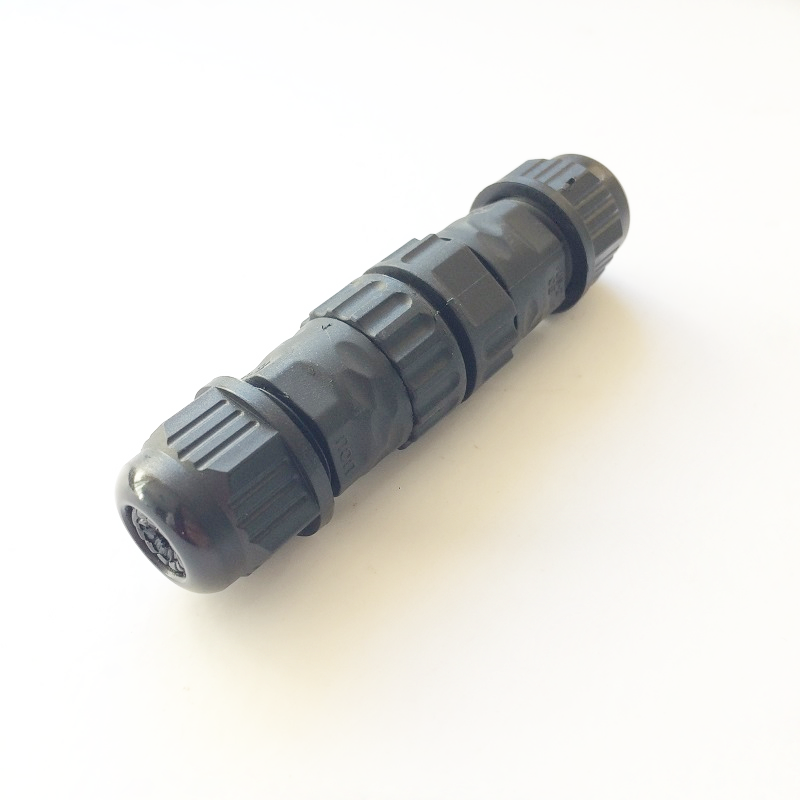

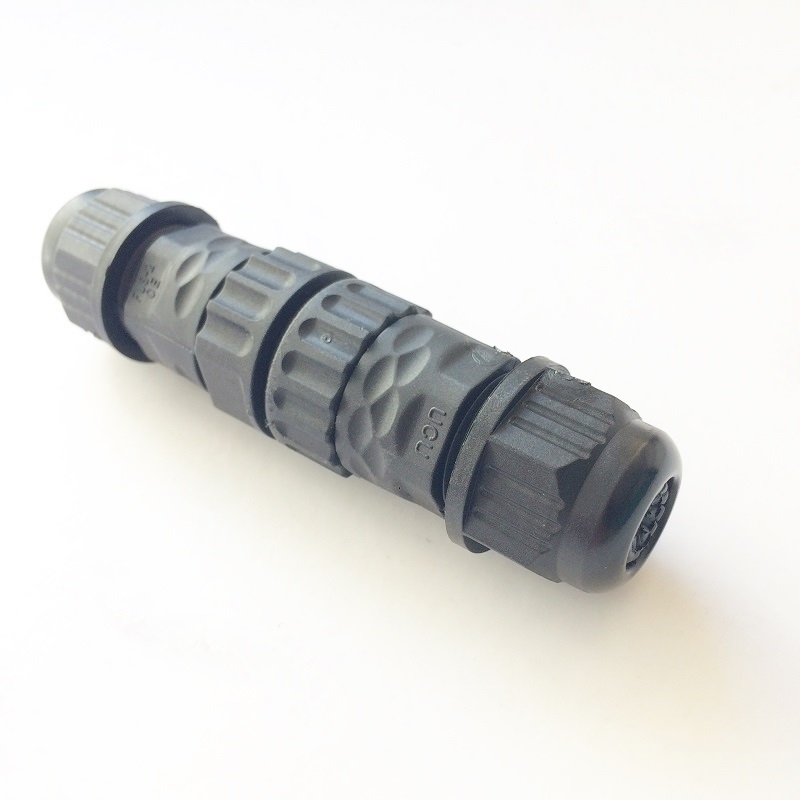

2. Using Conditions
-
Connector Type: screw/welding type
-
Plug rubber: PVC/nylon PA6, 125°C
-
Joint inner shell rubber: core nylon PA66, 125°C
-
Conductor Contacts: Copper, Gold Plated
-
Connection Type: Male to female threaded connection, welding type
-
Wire material: PVC wire, rubber wire, silicone wire
-
Product color: Black or white
-
Operating Temperature -25°C～105°C
-
Storage temperature -25°C～85°C
-
Atmospheric Pressure (86-106) KPa
-
Relative temperature ≤90%
-
Connector Housing Rubber Nylon PA66, 125°C
Manufacturer of a broad range of Waterproof IP68 Connectors. View full listing of IP68 M16 Connectors for Cables products here.
