M6

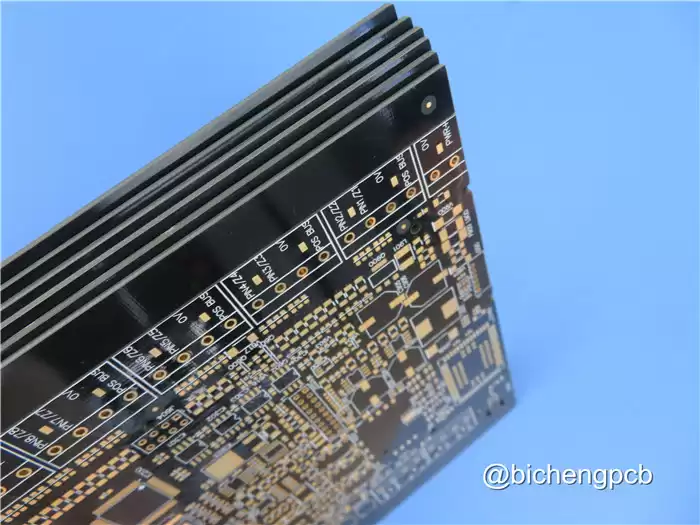

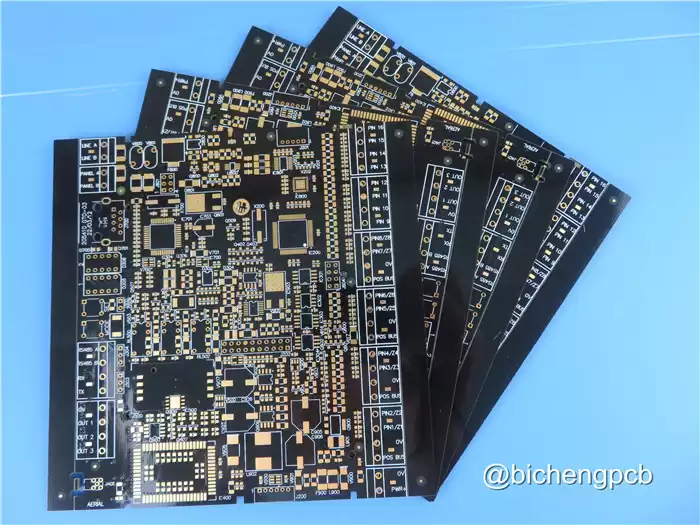

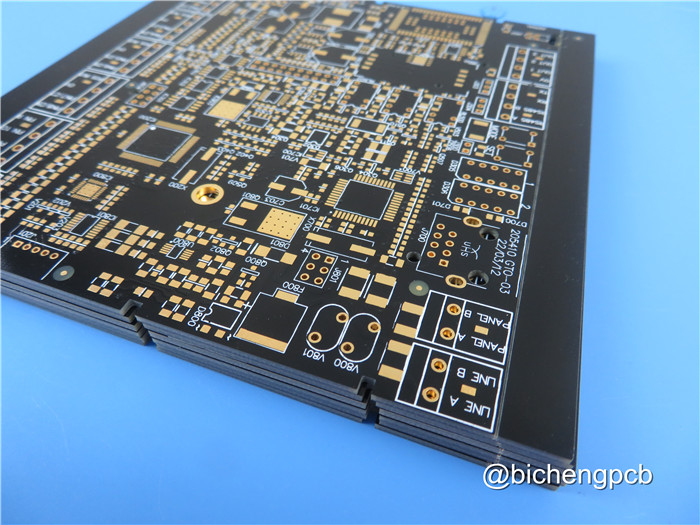

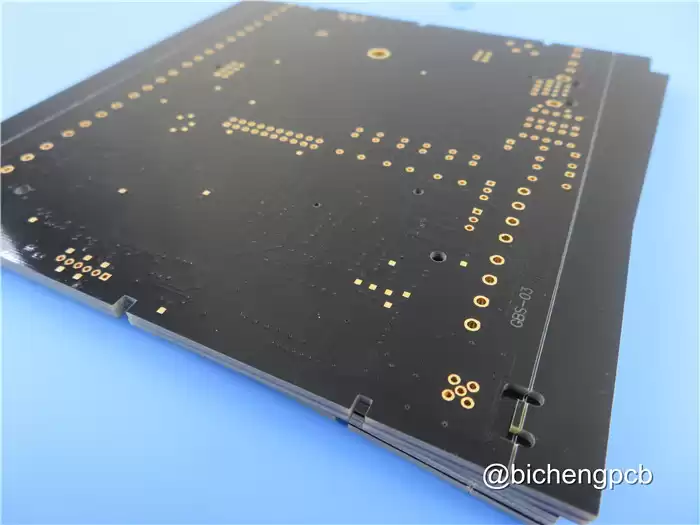

High Speed PCB Panasonic R-5775 Low Loss Multilayer Circuit Board
(Printed
Circuit Boards are custom-made products, the picture and parameters shown are
just for reference)
Brief
Introduction:
Outer layer with 1oz copper weight and black solder
mask printed on both top and bottom side.Pads are plated with electroless
nickel and immersion gold (ENIG). Every 50 boards are vaccum packed for
shipment.
PCB
Specifications:
|
PCB SIZE
|
95 x 96mm=1up
|
|
BOARD TYPE
|
Multilayer
PCB
|
|
Number
of Layers
|
4 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
YES
|
|
LAYER STACKUP
|
copper
------- 17um(0.5 oz)+plate TOP layer
|
|
Prepreg
|
|
copper ------- 18um(0.5 oz)
|
|
R-5775G 0.25mm
|
|
copper ------- 18um(0.5 oz)
|
|
Prepreg
|
|
copper ------- 17um(0.5 oz)+plate BOT layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
4
mil / 4 mil
|
|
Minimum
/ Maximum Holes:
|
0.3
mm / 6.0 mm
|
|
Number
of Different Holes:
|
2
|
|
Number
of Drill Holes:
|
6
|
|
Number
of Milled Slots:
|
1
|
|
Number
of Internal Cutouts:
|
no
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
R-5775G
|
|
Final
foil external:
|
1.0
oz
|
|
Final
foil internal:
|
0.5
oz
|
|
Final
height of PCB:
|
0.8
mm ±0.1
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold,
22%
|
|
Solder
Mask Apply To:
|
Top Layer and
Bottom layer
|
|
Solder
Mask Color:
|
Black
|
|
Solder
Mask Type:
|
Kuangshun
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
Top
Layer
|
|
Colour
of Component Legend
|
White
|
|
Manufacturer
Name or Logo:
|
N/A
|
|
VIA
|
Plated
through hole(PTH), minimum size 0.3mm.
|
|
FLAMIBILITY RATING
|
94V-0
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Megtron 6 is an ultra-low loss, high heat resistant circuit board
material designed for mobile, networking and wireless applications,
among others. The main features of M6 High Speed PCB are low dielectric
constant (DK) and dielectric dissipation factor (DF), low transmission
loss and high thermal resistance.
Manufacturing Process of Multi-layer PTH PCB
(via filled):
Main
Applications:
Any circuit board with more than or equal to 2 layers can be called a
multi-layer circuit board. The electrical connection between them is
usually achieved through plated through holes in the cross section of
the circuit board. We have boards with various layer counts such as 10 Layer PCB Board and more.
CAPABILITY:
2500-3000 types each month.
SERVICE AREA:
North America, Oceania, Southeast Asia, Eastern
Europe, Africa, Latin America, Western & Southern Europe, Northern Europe,
Central & South Asian, Middle East.
