Huawei MA5616 H82BZ1MABA03 service subrack
Huawei SmartAX MA5616, 19inch, with 2U height 4 service slots, support GE, GPON, EPON and 10G PON Uplink; H82BZ1MABA03 subrack
Huawei SmartAX MA5616 is a remote multi dwelling unit (MDU), provides broadband services on FTTB and FTTC networks. It is 2U height and 19-inch wide, the uplink can be GE, GPON, EPON or 10G GPON. MA5616 support ADSL2+,VDSL2, SHDSL, POTS, ISDN, FE and GE ports. Normally deployed as mini DSLAM to provide ADSL2+/VDSL2 to end users, it can connect to Huawei OLT through GPON, or connect to any Ethernet switch or other MA5616 via GE ports.
Huawei MA5616 H82BZ1MABA03 subrack comes with 1 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package
Huawei MA5616 2U Height Remote Multi Dwelling Unit
Chassis supports 4 Service Slots
Support one power slot, with DC Power or AC Power
Support Uplink available at GE, GPON, EPON and 10GPON

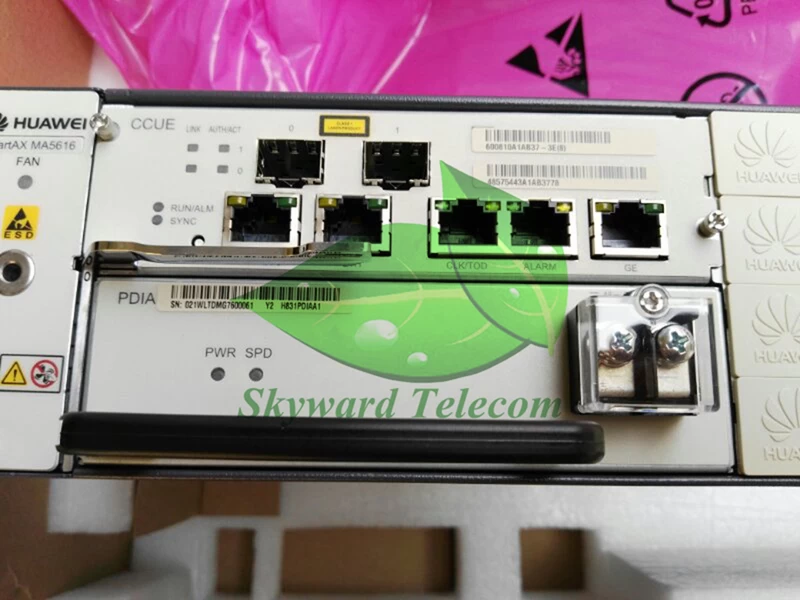

Support one main control board, with available at CCUB, CCUC, CCUD, CCUE
Support a maximum of 256 POTS users or 256 ADSL2+ users or 192 VDSL2 users
Support 128 POTS users and 128 ADSL2+ users simultaneously by using a combo board
Support P2P optical access board (4GE+4FE)
Popular Service Boards: ADLE (32 Ports ADSL2+), VDLE (32 Ports VDSL2), VDGE(16 Ports VDSL2) etc
Height: 2U, Width: 19 inch
MA5616 CCUE Main Control Board support Vectoring
Gross Weight: 15kgs
Dimension: 58cm*39cm*56cm
Specification
|
etwork-side port
|
CCUB: 1*GPON + 1*GE or 2*GE or 1*EPON +1*GE
|
|
CCUC: 1*GPON + 1*GE or 2*GE
|
|
CCUD: 1*GPON + 1*GE
|
|
CCUE: 2*GPON/GE Adaptive or 1*GE+1*10G GPON
|
|
User-side port
|
16-channel VDSL2 over POTS (Supports 8a, 8c, 8d, 12a, 12b, 17a, and 30a spectrum profiles)
|
|
24-channel VDSL2 over POTS(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles)
|
|
24-channel VDSL2 over ISDN(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles)
|
|
32-channel VDSL2 over POTS(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles)
|
|
32-channel VDSL2 over POTS(Supports system-level Vectoring function.)
|
|
48-channel VDSL2(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles)
|
|
48-channel VDSL2(Supports system-level Vectoring function)
|
|
64-channel POTS board
|
|
32-channel POTS board
|
|
8-channel ISDN board
|
|
16-channel G.SHDSL board (supporting ATM and PTM)
|
|
16-channel FE (electrical) board
|
|
P2P board with 4 GE (combo of optical port and electrical port) + 4 FE (optical port)
|
|
32-channel ADSL2+ board (built-in SPL)
|
|
64-channel ADSL2+ board (built-in SPL)
|
|
32-channel combo board (32 × POTS + 32 × ADSL2+)
|
|
Operating temperature
|
-40℃ to 65℃; startup at -25℃
|
|
Humidity
|
5% to 95% (non-condensing)
|
|
Heat dissipation mode
|
Providing fans for heat dissipation. The rotating speed can be automatically adjusted.
|
|
Power supply
|
AC: 220 V/110 V, DC: -48 V
|
|
Backup power
|
Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries
|
