MAC ground mounting system (New material )

The Mac ground mounting system is developed for replacing traditional hot-dip galvanized materials to offer better corrosion resistance for large-scale ground solar power plant.



  MAC ground mounting system





Antaisolar MAC ground mounting system is developed to diversify current product portfolio especially for large-scale ground solar power plant. Utilizing magnesium aluminum alloy coating steel (MAC steel) as the main supporting body to replace traditional hot-dip galvanized materials.


About MAC steel: Formed by high-temperature curing of zinc (Zn), aluminum (Al) and magnesium (Mg), and its microstructure is composed of dense ternary eutectic structure of Zn, Al and Mg, so that the surface of MAC steel has a dense barrier that effectively prevents the penetration of corrosion factors.

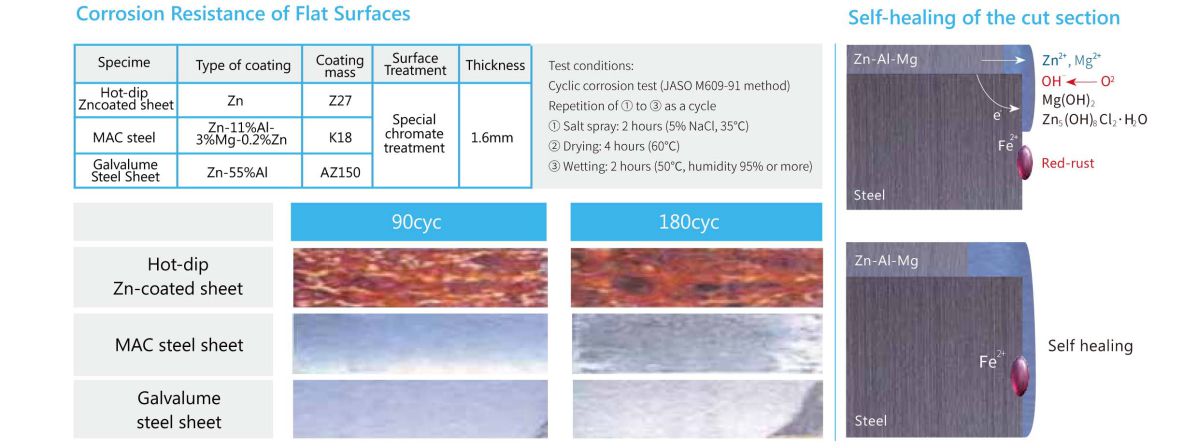

  Superior Corrosion Resistance


  A dense protective film is formed on the flat and cut-end surface;

  Excellent corrosion resistance. About 10 times that of hot-dip galvanized steel.

  Self-healing

  The coating composition around the cutting surface leeches out to form a tight protective film.

  With cross-section and self-repair ability, no need for post-dip plating process.

  Long lasting


  Due to the superior corrosion resistance and the self-healing effect of the cut section, under      the same coating, MAC can last for more than 30 years






1. Simple and adjustable structure, no need fo welding allows for efficient installation

2. Conventional specifications can be mass-produced to maximum control of production cycle

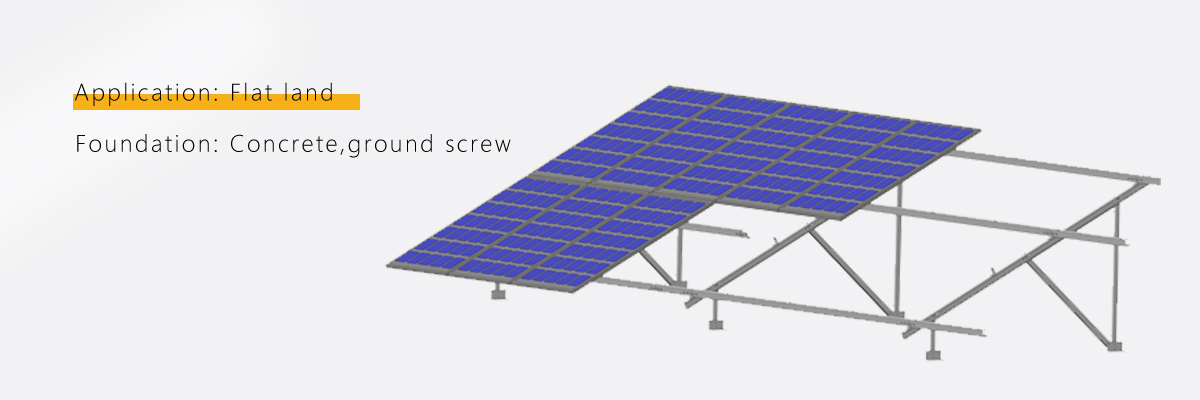

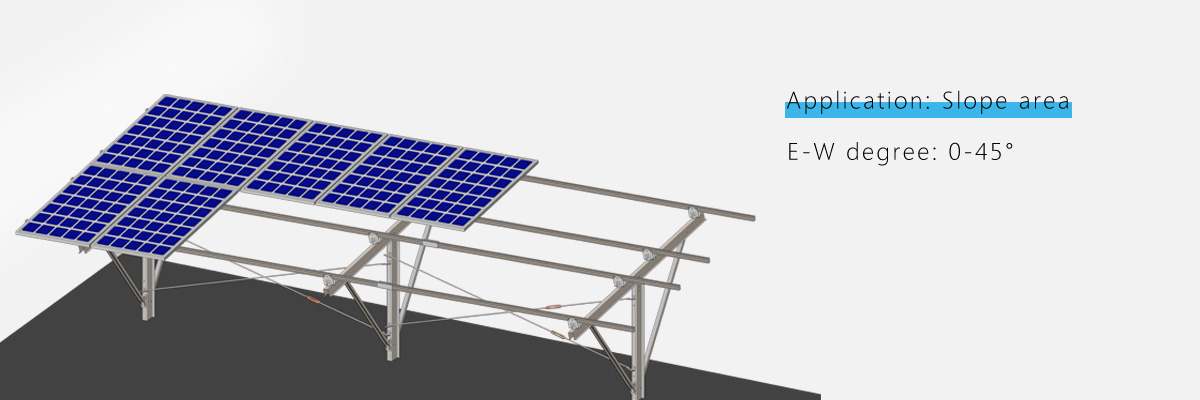

3. Adapted to various foundation such as ground screw, cement pre-embedded bolt foundation and pile

4.No need for post-coated or smeared, greatly reducing the cost of rust-proof and paint repair in site

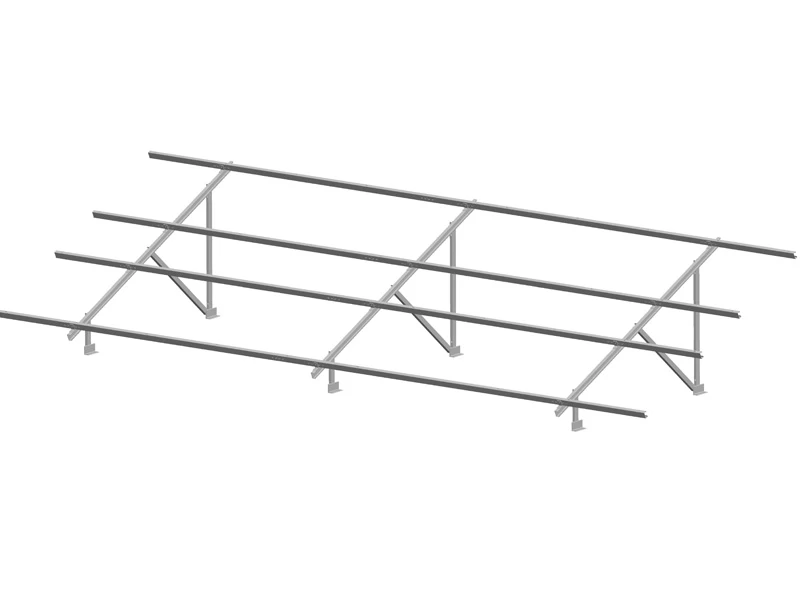

Antaisolar MAC ground mounting system


Antaisolar developed new material for large scale ground solar power plant
