Quick Details

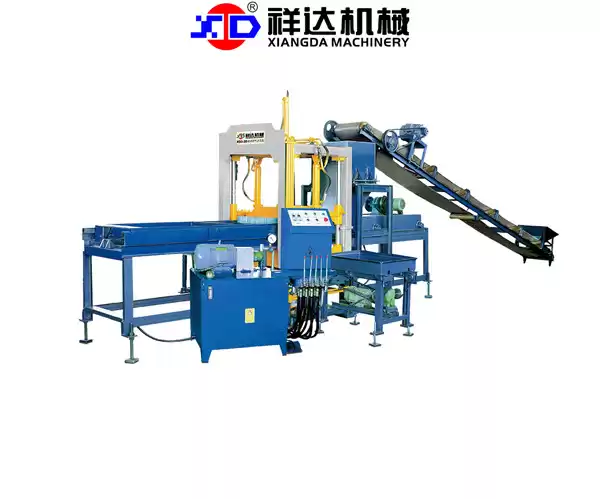

MACHINE FOR BLOCK MAKING
Type
|
Hollow Block Making Machine
|
Brick Raw Materials
|
Concrete
|
Processing
|
Brick Production Line
|
Method
|
Hydraulic Pressure
|
Capacity
|
Solid brick 240*115*53mm: 3240 pcs/hour
|
Place of Origin
|
Fujian, China (Mainland)
|
Brand Name
|
Xiangda
|
Model Number
|
XD 3-15
|
Voltage
|
Local Voltage
|
Power
|
26.8kw
|
|
Certification
|
CE/SGS/ISO9001
|
Warranty
|
One Year
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
Products
|
paver /concrete block(brick)
|
mini brick making machine
|
|
Main technical parameters
MACHINE FOR BLOCK MAKING
|
Dimension of host machine
|
2400*1660*2030mm
|
Host machine power
|
26.8kw
|
|
Weight of host machine
|
6.5T
|
Mixer model
|
JS500
|
|
Molding area
|
800*680mm
|
Vibration force
|
50-60KN
|
|
Water consumption
|
4-6T/Day
|
Workshop
|
300㎡
|
|
The size of the pallet
|
860*540*25mm
|
|
|
Theoretical production capacity
MACHINE FOR BLOCK MAKING
|
Size(L*W*H)
|
Pcs/Mould
|
Pcs/Hr
|
Pcs/8Hr
|
|
400*100*200mm
|
8
|
1440
|
11520
|
|
400*150*200mm
|
5
|
900
|
7200
|
|
400*200*200mm
|
4
|
720
|
5760
|
|
400*250*200mm
|
4
|
720
|
5760
|
|
240*115*53mm
|
24
|
5320
|
42560
|
|
Paver:200*100*60mm
|
14
|
2100
|
16800
|
|
Paver:225*113*60mm
|
12
|
1800
|
14400
|
Detailed
MACHINE FOR BLOCK MAKING
|
Control center
A: Siemens PLC, self diagnosed for trouble shooting
B: touch screen controller, easy operation
C: International electrical components: Omron, Schneider
|
Hydraulic system
Proportional electro-hydraulic relief valves
A: It’s working steady with low noise
B: Hi-precision
C: Easy micro-Adjusting
|
|
|
Mould
heat treatment and wire cutting for the mould
A: Use the 16 manganese steel
B: heat treatment can reach HRC 61.
C: Working 150,000 times.
|
|
Link section
Perfect link to ensure the stable operation and service life of the machine
|
|
egg laying machine
MACHINE FOR BLOCK MAKING
Supply Ability
10 Set/Sets per Month if you need more , our company also can meet your demands
Packaging & Delivery
Packaging Details
The block machine and other steel structures will be packed nakedly in the container. The electrical components will be packed in strong wood cases with the above shipping mark clearly printed on each package. It must be suitable for long distance transportation.
Port: Xiamen
Lead Time: 30days
Our Service
Pre-sales Service
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory,
Feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
(6)Sample testing support.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) Training how to install the machine, training how to use the machine.
(2) Engineers available to service machinery overseas.
(3) Recall clients regularly , get feedback in time,keep well communication with each other
About us
Quanzhou Xiangda Machinery Manufacture Co., Ltd. is a professional high-tech enterprise for concrete block making, owning R&D, manufacturing,sale and after-sale service.Xiangda Corporation is established in the beginning of 1990s, which is located in Quanzhou City, near to Xiamen Port, china. During over 20 years, we have been developing fast and getting more and more powerful with continous tech innovation and China patents.
