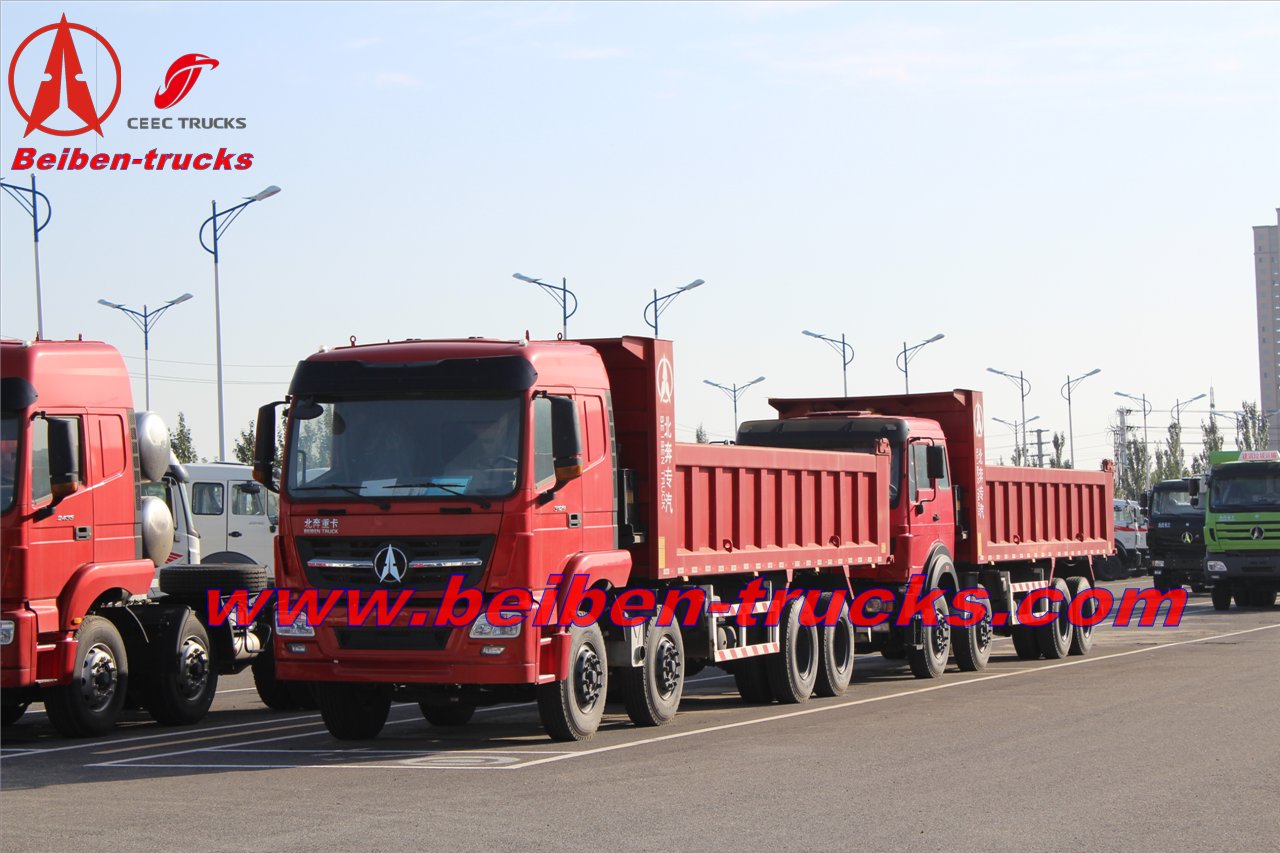

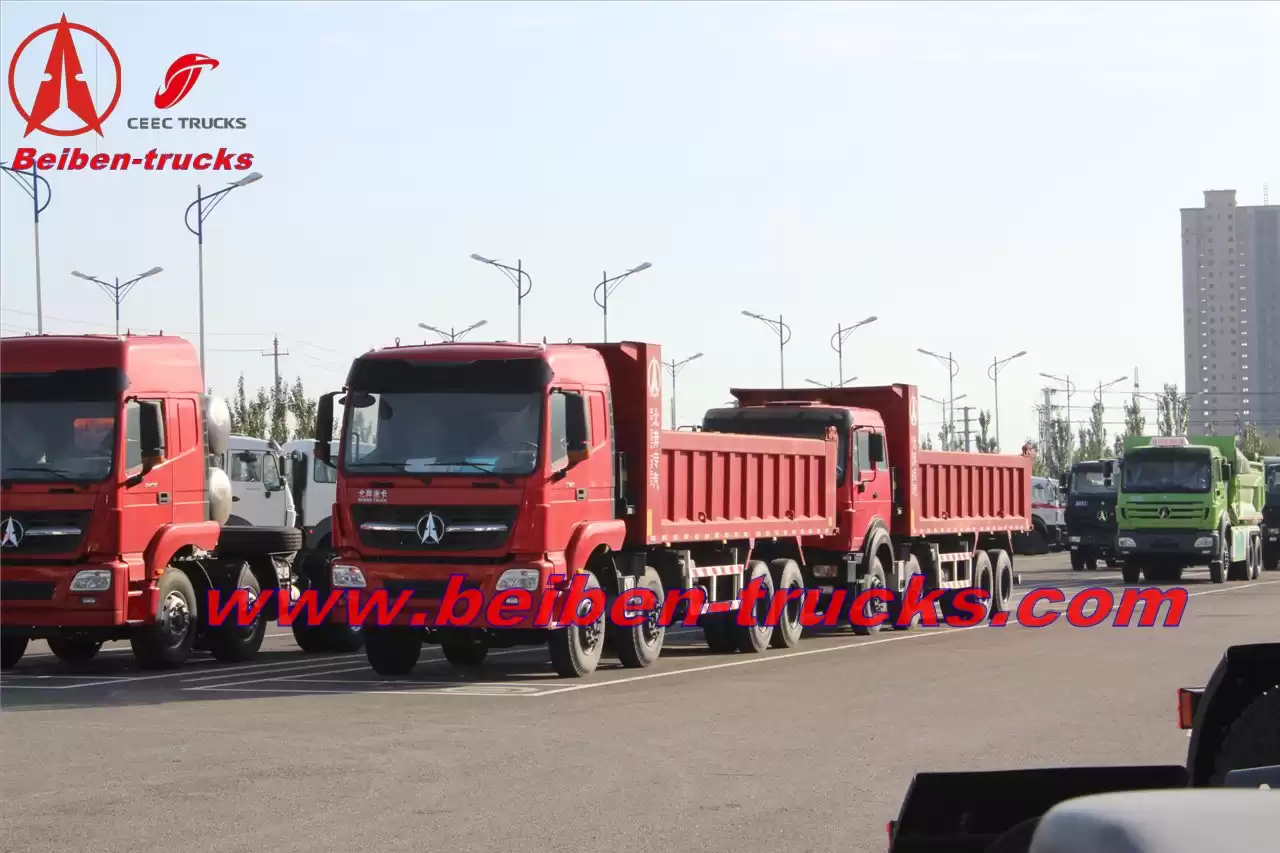

Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price

Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price, we are best china made beiben V3 12 wheeler dump trucks manufacturer, more than 10 years in beiben V3 dump trucks producing.



Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price

Specifications

Top quality famous Beiben dump truck. Mercedes Benz technology,great performance,reasonable price. ISO9001,CCC,GBJ9001A-2001North Benz V3 new series, fashionable design,new technology,better performance

Vehicle Specifications

Model

ND33100D46J7

Traction 4X2,6X4,8X4

8X4

Power

340HP

Weight Parameter

Complete Vehicle Kerb Mass(kg)

15080

Maximum authorized total mass (kg)

31000

Dimension Parameter

External Dimensions(mm)

Length (mm)

11680/11780/11980

Width(mm)

2500

Height(mm)

3484

wheelbase(mm)

1950+4600+1450

Internal cargo Sizes

Length (mm)

8900

Width (mm)

2300

Height (mm)

1500

Performance Parameter

Maximum Speed(km/h)

90

Maximum Grade ability(%)

35

Turning diameter(m)

16

Recommended Configuration

Engine

Engine Type

WP10.340E32

Rated power(kW)/Rev(r/min)

250/2200

Horse power

340HP

Torque(N*m)/Rev(r/min)

1600/1200-1600

Transmission

12JS160T

Clutch(mm)

430

Gearbox

12 forward gears

2 reverse gears

Axle

Front Axle

BENZ-7.5X2

Rear Axle

BENZ-13x2

Axle load-bearing

Front axle

7500 X2


Rear axle

13000x2

Fuel Tank(L)

300

Track(mm)

2045/2045,1872/1872

Front overhang/rear overhang(mm)

1515/2215,1515/2315

Type

12.00R20

Cabin

Sleeper

none

OTHER

Engine horse power

290hp,310hp,340hp ,380hp,

400hp and 420hp is optional

Tyre

nylon,radial and

tubeless is optional

ABS

optional

COLOR

optional
