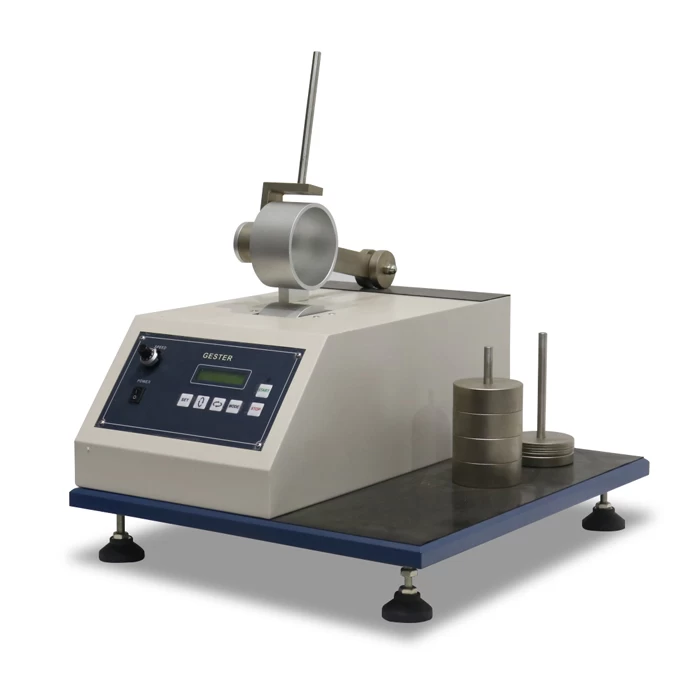

Magic Tape Closing Tester GT-K20
Product Introduction
| Application:
Magic Tape Closing Tester GT-K20; It is intended to press the two parts of the touch and close fastener together under controlled conditions, prior to determining the peel and shear strength.
The equipment comprises basically a roller device with a roller of diameter 100±5 mm, capable of applying a force of 1.0 ± 0.1 N per millimeters width of the test specimen. This is to close the fastener under a standard known pressure.
Standards:
DIN 3415, BS EN ISO 22776 , BS EN ISO 22777, SATRA TM123, GB/T3903.20, GB/T3903.21
|

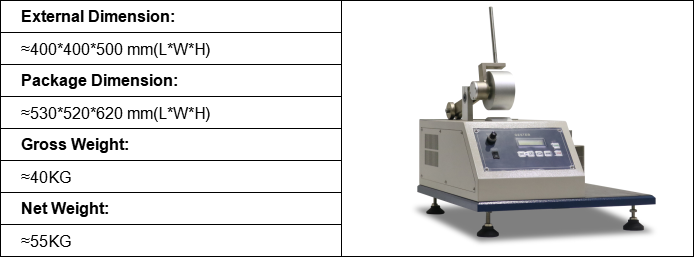

Dimensions
Key Specifications
Model
|
GT-K20
|
Sample dimension
|
Length150mm, Width:20~50mm
|
Upper idling drum
|
Diameter 100±5 mm
|
Under driven drum
|
Diameter 100±5 mm
|
Drum width
|
50mm
|
Test load
|
1.0±0.1N/mm
|
Power supply
|
1∮AC 220V 50/60HZ
|
Dimensions ( L x W x H )
|
About 40 cm ×40 cm ×50 cm
|
Weight
|
About 40kg
|
Standards
|
DIN 3415, BS EN ISO 22776 , BS EN ISO 22777
SATRA TM123, GB/T3903.20, GB/T3903.21
|
Standards accessories
|
1set
|
Weights
|
1pc
|
Power Line
|
