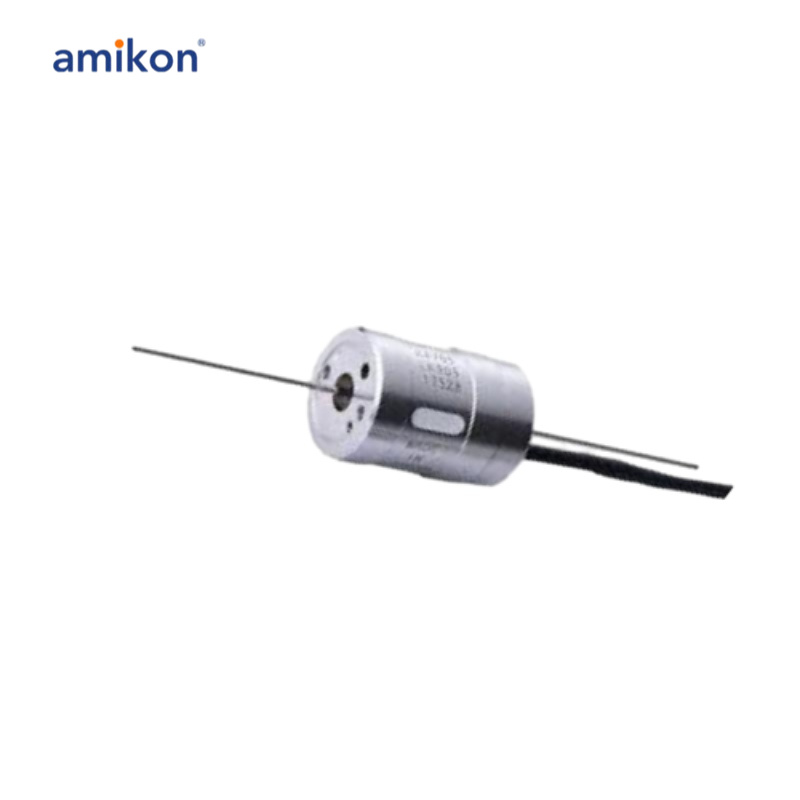

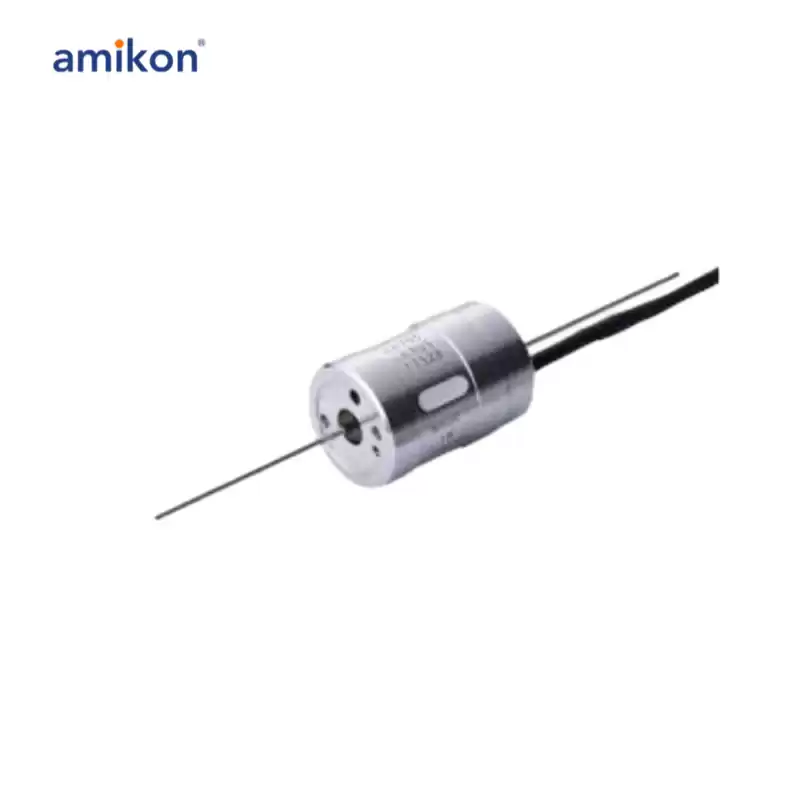

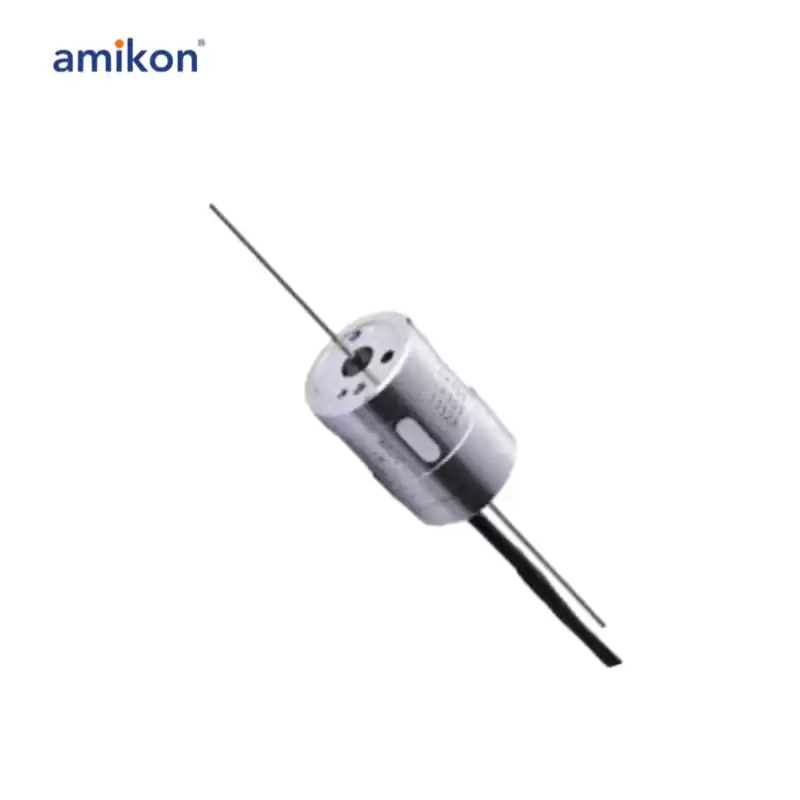

The system is composed of the MSS-976R scale, the HA-705LK head assembly and a detector or display unit, and detects linear position or displacement with high accuracy.
|
|
|
HA705 LK905 22189 Data sheet
|
The detecting accuracy depends on the installation and adjustment of the scale and head, and therefore.
|
|
it is required to make correct installation and adjustment of the scale and head as instructed by this manual, and to make correct electircal adjustment of the detector or display unit according to its own instruction manual.
|
|
This instruction manual on HA-705LK also applies to HA-705K which is of different electrical specifications but with the same outside dimensions as HA-705LK.
|
|
