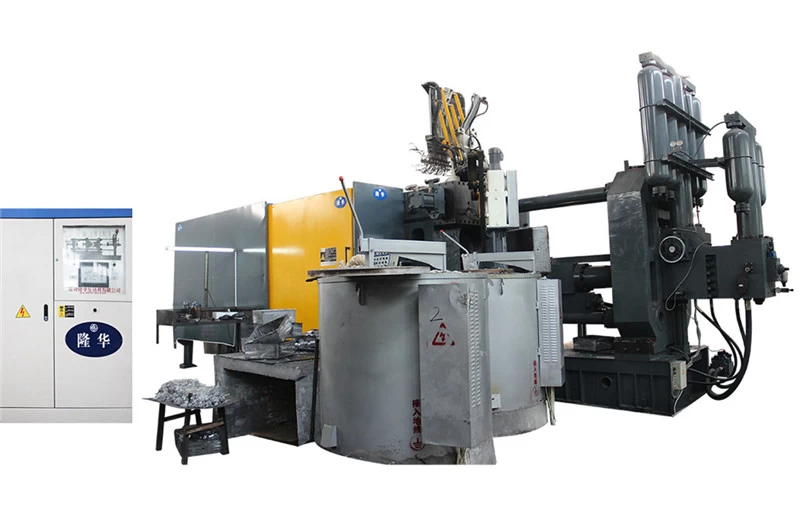

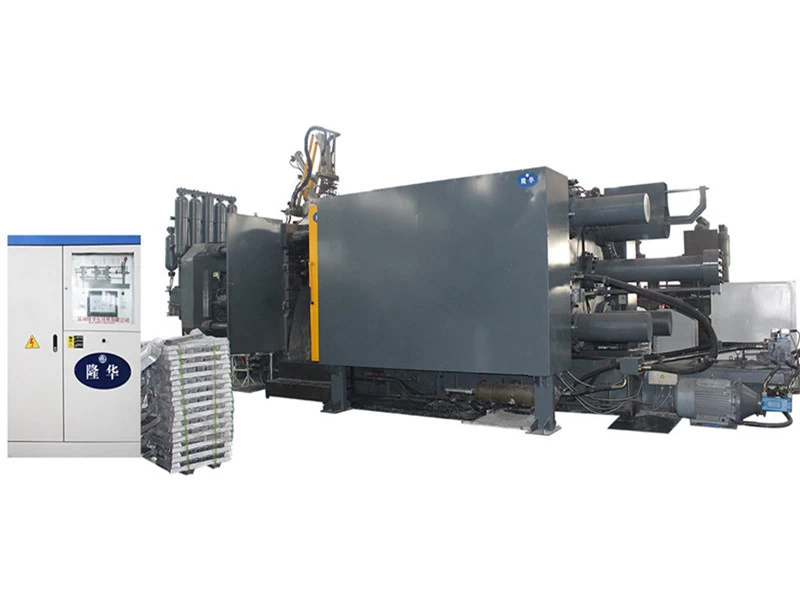

Magnesium alloy lightweight automotive parts making machines(LH-2000T)
Die casting machine can effectively use the production method of aluminum casting to make some high quality auto parts, such as pipe fitting on auto engine, cylinder head of gasoline engine cylinder, etc.
LH SERIES OF STANDARD PARAMETER TABLE (LH-2000 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
16
|
|
CLAMPING FORCE
|
KN
|
20000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
1350*1350
|
|
TIE BAR DIAMETER
|
MM
|
￠280
|
|
DIE OPENING STROKE
|
MM
|
1400
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
1500
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
400
|
|
INJECTION POSITION
|
MM
|
--175 --350
|
|
PLUNGER DIAMETER
|
MM
|
￠130----￠170
|
|
INJECTION STROKE
|
MM
|
1000
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
113---66
|
|
CASTING FIANGE PROTRUSION
|
MM
|
30
|
|
CASTING FIANGE DIAMETER
|
MM
|
260
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
5000
|
|
INJECTION WEIGHT(AL)
|
KG
|
41
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
650～1600
|
|
EJECTOR FORCE
|
KN
|
650
|
|
EJECTOR STROKE
|
MM
|
300
|
|
MOTOR CAPACITY
|
KW
|
55*2
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
13*4.7*4.8
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
135
|
|
OIL TANK CAPACITY
|
L
|
3300
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Fully Automatic Peripheral Robots
Die Casting Product Display
After-Sales Service
After the sale, when the die casting machine arrives at your port, you send invitations, and our engineers go to your country to install and debug machines.Training the operator until you learn so far.
Company Files
Bengbu Longhua Die Casting Machine Co., Ltd.is a high-tech enterprise integrating scientific research and sales, adopting the new generation of Japanese die casting technology, specializing in the production of computer precision control cold chamber die casting machine and its peripheral equipment.
Longhua series cold chamber die casting machines mainly includes: LH125T-LH3500T and more than 20 types of models, suitable for aluminum alloy, magnesium alloy, zinc alloy, copper alloy, using all imported famous hydraulic, electrical, sealing parts, high standard design and precision processing.
Any of the models produced can be configured according to customer preference
