Quick Details
|
Part Number:
Magnetic Ferrite Toroidal Cores
|
Brand Name:
MCT
|
|
Material:
Mn-Zn/MP4/M5P /M7P/M10P
|
Logo: Can be
customized
|
|
Shape of Ferrite
Core: Toroidal
|
OEM:
Available
|
|
Features: High
intrinsic coercive force, Max continuous working temp
|
MOQ: Any
quantity
|
|
Packing:
Carton, can be customized
|
Custom Made:
Available
|
|
Lead Time:
25 days after payment
|
Certification:
ISO9001,ROHS,CE
|
Part Information

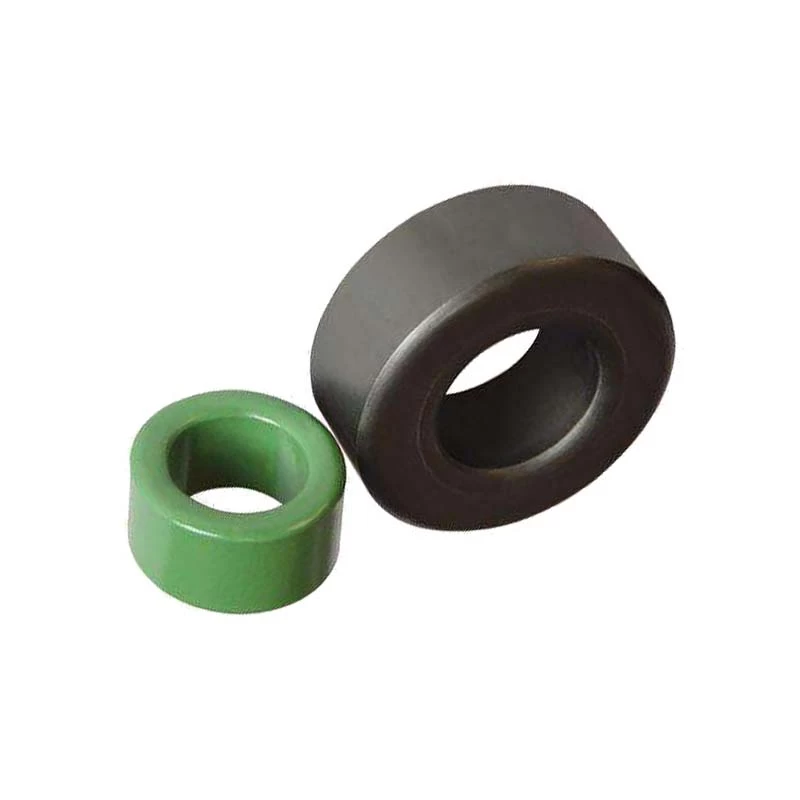

Product Name: Magnetic Ferrite Toroidal Cores for
Transformers and Choke Coils
Range: Electronic transformers, filter inductors, choke
coils, bobbins, relays, magnetic cores.
Product Applications: High frequency switching power
transformers. Coupled inductors and transformers,
RF circuits, EC power supply chokes, motors dimmer control filters Matching
transformer. Filter transformer. Toroidal inductors.
Advantages: Our Factory is made up of 500 people, huge
output can be finished every day.
We have a technical team consist of 5 experienced
engineers.
All materials are environmental protected. We accept
custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for
standard parts.
Shipping Details: By air, By ship, etc.
Product Details
|
TYPE
|
Dimension:mm
|
Weight: g
|
|
D1
|
D2
|
H
|
|
T2.54×1.27×1.27
|
2.54±0.2
|
1.27±0.15
|
1.27±0.25
|
0.03
|
|
T3.05×1.27×1.27
|
3.05±0.25
|
1.27±0.15
|
1.27±0.15
|
0.04
|
|
T3.05×1.78×1.52
|
3.05±0.25
|
1.78±0.2
|
1.52±0.15
|
0.05
|
|
T3.05×1.78×1.27
|
3.05±0.25
|
1.78±0.2
|
1.27±0.15
|
0.04
|
|
T3.5×1.78×1.78
|
3.50±0.25
|
1.78±0.2
|
1.78±0.2
|
0.05
|
|
T3.94×2.24×1.27
|
3.94±0.3
|
2.24±0.2
|
1.27±0.15
|
0.05
|
|
T3.94×2.24×2.54
|
3.94±0.3
|
2.24±0.2
|
2.54±0.2
|
0.10
|
|
T3.94×1.78×1.78
|
3.94±0.3
|
1.78±0.2
|
1.78±0.2
|
0.05
|
|
T4×2×1
|
4.0±0.3
|
2.0±0.2
|
1.0±0.1
|
0.06
|
|
T4×2×2
|
4.0±0.3
|
2.0±0.2
|
2.0±0.1
|
0.09
|
|
T5×3×2
|
5.0±0.3
|
3.0±0.2
|
2.0±0.2
|
0.14
|
|
T6×3×2
|
6.0±0.3
|
3.0±0.2
|
2.0±0.2
|
0.21
|
|
T6×3×3
|
6.0±0.3
|
3.0±0.2
|
3.0±0.3
|
0.32
|
|
T8×4×3
|
8.0±0.3
|
4.0±0.3
|
3.0±0.2
|
0.56
|
|
T9×5×3
|
9.0±0.3
|
5.0±0.3
|
3.0±0.2
|
0.60
|
|
T10×6×3
|
10.0±0.3
|
6.0±0.3
|
3.0±0.2
|
0.90
|
|
T10×6×5
|
10.0±0.31
|
6.0±0.3
|
5.0±0.3
|
1.27
|
|
T12×6×4
|
12.0±0.4
|
6.0±0.3
|
4.0±0.2
|
1.51
|
|
T12.7×7.8×5
|
12.7±0.4
|
7.8±0.3
|
5.0±0.3
|
1.75
|
|
T12.7×7.14×4.77
|
12.7±0.4
|
7.14±0.3
|
4.77±0.3
|
1.90
|
|
T12.7×7.14×6.35
|
12.7±0.4
|
7.14±0.3
|
6.35±0.3
|
2.70
|
|
T12.7×7.92×6.35
|
14.0±0.4
|
7.92±0.3
|
6.35±0.3
|
2.16
|
|
T14×8×7
|
14.0±0.4
|
8.0±0.3
|
7.0±0.3
|
3.75
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±20%）
|
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
T2.54×1.27×1.27
|
0.075
|
5.531
|
4.268
|
440
|
880
|
1320
|
1761
|
|
T3.05×1.27×1.27
|
1.037
|
5.99
|
6.211
|
570
|
1112
|
1668
|
2224
|
|
T3.05×1.78×1.52
|
0.945
|
7.226
|
6.826
|
420
|
821
|
1232
|
1643
|
|
T3.05×1.78×1.27
|
1.035
|
7.226
|
5.688
|
320
|
685
|
1027
|
1369
|
|
T3.5×1.78×1.78
|
1.433
|
7.62
|
10.919
|
570
|
1168
|
1752
|
2336
|
|
T3.94×2.24×1.27
|
1.052
|
9.196
|
9.677
|
360
|
719
|
1078
|
1438
|
|
T3.94×2.24×2.52
|
2.105
|
9.196
|
19.353
|
720
|
1438
|
2157
|
2876
|
|
T3.94×1.78×1.78
|
1.822
|
8.09
|
14.75
|
680
|
1413
|
2120
|
2827
|
|
T4×2×1
|
1.0
|
9.06
|
9.06
|
330
|
690
|
970
|
1400
|
|
T4×2×2
|
1.3
|
9.06
|
11.8
|
430
|
900
|
1260
|
1800
|
|
T5×3×2
|
2.0
|
12.3
|
24.6
|
470
|
1000
|
1400
|
2000
|
|
T6×3×2
|
3.0
|
14.1
|
42.4
|
660
|
1400
|
1950
|
2800
|
|
T6×3×3
|
6.0
|
14.1
|
84.6
|
1000
|
2800
|
3900
|
5600
|
|
T8×4×3
|
4.5
|
20.4
|
91.9
|
1030
|
2070
|
2910
|
4150
|
|
T9×5×3
|
6.1
|
22.0
|
134
|
850
|
1800
|
2500
|
3500
|
|
T10×6×3
|
6.1
|
25.1
|
153
|
740
|
1550
|
2150
|
3050
|
|
T10×6×5
|
10.2
|
25.1
|
256
|
1200
|
2600
|
3600
|
5100
|
|
T12×6×4
|
12.0
|
27.2
|
326
|
1300
|
2800
|
3900
|
5600
|
|
T12.7×7.8×5
|
14.7
|
31.6
|
464
|
1200
|
2400
|
3400
|
4900
|
|
T12.7×7.14×4.77
|
12.9
|
29.5
|
381
|
1300
|
2750
|
3850
|
5500
|
|
T12.7×7.14×6.35
|
17.2
|
29.5
|
507
|
1800
|
3700
|
5100
|
7300
|
|
T12.7×7.92×6.35
|
14.9
|
31.2
|
465
|
1440
|
3000
|
4200
|
6000
|
|
T14×8×7
|
20.5
|
32.8
|
671
|
1900
|
3900
|
5500
|
7800
|
|
TYPE
|
Dimension:mm
|
Weight: g
|
|
D1
|
D2
|
H
|
|
|
T14×9×5
|
14.0±0.4
|
9.0±0.3
|
5.0±0.3
|
2.27
|
|
T16×8×5
|
16.0±0.4
|
8.0±0.3
|
5.0±0.3
|
3.55
|
|
T16×9.5×5
|
16.0±0.4
|
9.5±0.3
|
5.0±0.3
|
3.12
|
|
T16×12×8
|
16.0±0.3
|
12.0±0.3
|
8.0±0.3
|
3.35
|
|
T16×9.5×8
|
16.0±0.4
|
9.5±0.3
|
8.0±0.3
|
3.95
|
|
T16×8×8
|
16.0±0.4
|
8.0±0.3
|
8.0±0.3
|
4.85
|
|
T17×10×8
|
17.0±0.4
|
10.0±0.3
|
8.0±0.3
|
5.35
|
|
T17×10×6.35
|
17.0±0.4
|
10.0±0.3
|
6.35±0.3
|
4.88
|
|
T17.5×12×8
|
17.5±0.4
|
12.0±0.3
|
8.0±0.3
|
4.50
|
|
T17.5×9.5×8
|
17.5±0.4
|
9.5±0.3
|
8.0±0.3
|
6.15
|
|
T18×10×10
|
18.0±0.3
|
10.0±0.3
|
10.0±0.3
|
8.77
|
|
T18×10×6.35
|
18.0±0.4
|
10.0±0.3
|
6.35±0.3
|
6.10
|
|
T18×10×8
|
18.0±0.4
|
10.0±0.3
|
8.0±0.3
|
6.55
|
|
T18×10×12.7
|
18.0±0.4
|
10.0±0.3
|
12.7±0.3
|
9.25
|
|
T20×10×10
|
20.0±0.4
|
10.0±0.3
|
10.0±0.3
|
10.20
|
|
T20×12×6.35
|
20.0±0.4
|
12.0±0.4
|
6.35±0.3
|
5.80
|
|
T20×12×8
|
20.0±0.4
|
12.0±0.4
|
8.0±0.3
|
7.60
|
|
T20×12×10
|
20.0±0.4
|
12.0±0.4
|
10.0±0.3
|
9.50
|
|
T20×12×12.7
|
20.0±0.4
|
12.0±0.4
|
12.7±0.4
|
11.52
|
|
T21.5×13.5×6.35
|
21.45±0.4
|
13.55±0.4
|
6.35±0.3
|
6.32
|
|
T22.1×13.7×6.4
|
22.1±0.4
|
13.7±0.4
|
6.4±0.3
|
6.82
|
|
T22×14×6.5
|
22.0±0.4
|
14.0±0.4
|
6.5±0.3
|
6.82
|
|
T22×14×8
|
22.0±0.4
|
14.0±0.4
|
8.0±0.3
|
8.72
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±20%）
|
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
T14×9×5
|
12.5
|
36
|
452
|
1060
|
2200
|
3100
|
4400
|
|
T16×8×5
|
20.0
|
36.2
|
724
|
1660
|
3500
|
4850
|
6900
|
|
T16×9.5×5
|
16.3
|
40
|
653
|
1250
|
2600
|
3650
|
5200
|
|
T16×12×8
|
15.9
|
43.4
|
689
|
1100
|
2300
|
3200
|
4600
|
|
T16×9.5×8
|
26.0
|
39.2
|
1019
|
2000
|
4200
|
5850
|
8350
|
|
T16×8×8
|
32.0
|
36.2
|
1158
|
2700
|
5500
|
7750
|
11100
|
|
T17×10×8
|
28.0
|
41.4
|
1159
|
1200
|
4200
|
5900
|
8500
|
|
T17×10×6.35
|
22.2
|
41.4
|
919
|
940
|
3400
|
4700
|
6700
|
|
T17.5×12×8
|
22.0
|
45.8
|
1008
|
1450
|
3000
|
4200
|
6050
|
|
T17.5×9.5×8
|
32
|
42
|
1357
|
2350
|
4900
|
6850
|
9800
|
|
T18×10×10
|
38.9
|
41.5
|
1610
|
2800
|
5900
|
8200
|
11800
|
|
T18×10×6.35
|
24.7
|
41.5
|
1020
|
1800
|
3750
|
5200
|
7500
|
|
T18×10×8
|
31.1
|
41.5
|
1290
|
2300
|
4700
|
6600
|
9400
|
|
T18×10×12.7
|
49.4
|
41.5
|
2040
|
3600
|
7500
|
10500
|
14900
|
|
T20×10×10
|
48
|
48.1
|
2092
|
2200
|
660
|
9250
|
14000
|
|
T20×12×6.35
|
24.8
|
48.1
|
1190
|
1500
|
3250
|
4550
|
6500
|
|
T20×12×8
|
31.3
|
48.1
|
1505
|
2000
|
4100
|
700
|
8200
|
|
T20×12×10
|
39.1
|
48.1
|
1880
|
2450
|
5100
|
7150
|
10200
|
|
T20×12×12.7
|
49.7
|
48.1
|
2390
|
3100
|
6500
|
9100
|
13000
|
|
T21.5×13.5×6.35
|
24.7
|
53.1
|
1310
|
1400
|
2900
|
4100
|
5800
|
|
T22.1×13.7×6.4
|
26.4
|
54.1
|
1430
|
1500
|
3050
|
4300
|
6100
|
|
T22×14×6.5
|
25.6
|
54.7
|
1400
|
1400
|
2950
|
4100
|
5900
|
|
T22×14×8
|
31.4
|
54.7
|
1720
|
1700
|
3600
|
5050
|
7200
|
|
TYPE
|
Dimension:mm
|
Weight: g
|
|
D1
|
D2
|
H
|
|
|
T22×14×10
|
22.0±0.4
|
14.0±0.4
|
10.0±0.3
|
10.84
|
|
T22×13.7×6.35
|
22.0±0.4
|
13.7±0.4
|
6.35±0.3
|
6.82
|
|
T22.1×13.7×12.7
|
22.0±0.4
|
13.7±0.4
|
12.7±0.4
|
13.50
|
|
T25×15×8
|
25.0±0.4
|
15.0±.4
|
8.0±0.3
|
12.40
|
|
T25×15×10
|
25.0±0.4
|
15.0±0.4
|
10.0±0.3
|
15.20
|
|
T25×15×13
|
25.0±0.4
|
15.0±0.4
|
13.0±0.3
|
20.00
|
|
T25×15×15
|
25.0±0.4
|
15.0±0.4
|
15.0±0.4
|
23.30
|
|
T25.4×12.7×9.35
|
25.4±0.4
|
12.7±0.4
|
9.35±0.3
|
21.50
|
|
T25×15×12
|
25.4±0.4
|
15.0±0.4
|
12.0±0.4
|
18.80
|
|
T25×15×12.7
|
25.4±0.4
|
15.0±0.4
|
12.7±0.4
|
19.50
|
|
T26×14.5×15
|
26.0±0.4
|
14.5±0.4
|
15.0±0.4
|
24.50
|
|
T28×16×8
|
28.0±0.4
|
16.0±0.4
|
8.0±0.3
|
15.20
|
|
T28×16×10
|
28.0±0.4
|
16.0±0.4
|
10.0±0.3
|
19.20
|
|
T28×16×13
|
28.0±0.4
|
16.0±0.4
|
13.0±0.3
|
24.5
|
|
T28×16×6.35
|
28.0±0.4
|
16.0±0.4
|
6.35±0.3
|
11.8
|
|
T29×19×15
|
29.0±0.5
|
19.0±0.4
|
15.0±0.3
|
27.5
|
|
T31×19×8
|
31.0±0.5
|
19.0±0.5
|
8.0±0.3
|
18.2
|
|
T31×19×13
|
31.0±0.5
|
19.0±0.5
|
13.0±0.4
|
29.0
|
|
T31×19×15
|
31.0±0.5
|
19.0±0.5
|
15.0±0.4
|
33.4
|
|
T36×23×15
|
36.0±0.5
|
23.0±0.5
|
15.0±0.4
|
41.4
|
|
T38×19×13
|
38.0±0.5
|
19.0±0.5
|
13.0±0.5
|
51.8
|
|
T38×22×13
|
38.5±0.5
|
22.0±0.5
|
13.0±0.4
|
50.8
|
|
T40×24×16
|
40.0±0.5
|
24.0±0.5
|
16.0±0.4
|
58.2
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±20%）
|
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
T22×14×10
|
39.3
|
54.7
|
2150
|
2250
|
4500
|
6300
|
9000
|
|
T22×13.7×6.35
|
26.2
|
54.0
|
1410
|
1400
|
3000
|
4200
|
6000
|
|
T22.1×13.7×12.7
|
52.8
|
54.1
|
2860
|
2900
|
6100
|
8500
|
12000
|
|
T25×15×8
|
39.1
|
60.2
|
2350
|
2000
|
4100
|
5700
|
8200
|
|
T25×15×10
|
48.9
|
60.2
|
2940
|
2500
|
5100
|
7150
|
10200
|
|
T25×15×13
|
63.6
|
60.2
|
3830
|
3200
|
6650
|
9300
|
13300
|
|
T25×15×15
|
73.4
|
60.2
|
4420
|
3700
|
7650
|
10700
|
15300
|
|
T25.4×12.7×9.35
|
58.1
|
55.3
|
3210
|
3100
|
6500
|
9100
|
13000
|
|
T25×15×12
|
58.7
|
60.2
|
3530
|
3000
|
6100
|
8600
|
12000
|
|
T25×15×12.7
|
62.1
|
60.2
|
3740
|
3150
|
6500
|
9100
|
13000
|
|
T26×14.5×15
|
83.8
|
60.5
|
5042
|
2800
|
8250
|
11500
|
17500
|
|
T28×16×8
|
48.1
|
65.6
|
3155
|
2100
|
4500
|
6300
|
8650
|
|
T28×16×10
|
60.1
|
65.6
|
3942
|
2700
|
5600
|
7800
|
11000
|
|
T28×16×13
|
76.0
|
65.6
|
4990
|
3500
|
7300
|
10200
|
14500
|
|
T28×16×6.35
|
38.2
|
65.6
|
2506
|
1700
|
3600
|
5000
|
7100
|
|
T29×19×15
|
74.9
|
73.2
|
5481
|
3100
|
6100
|
8500
|
12800
|
|
T31×19×8
|
47.1
|
75.5
|
3550
|
1900
|
3900
|
5500
|
7800
|
|
T31×19×13
|
76.5
|
75.5
|
2770
|
3100
|
6400
|
8900
|
12700
|
|
T31×19×15
|
88.2
|
75.5
|
6660
|
2100
|
6900
|
9700
|
14500
|
|
T36×23×15
|
112
|
93.8
|
10500
|
3200
|
7600
|
10600
|
15200
|
|
T38×19×13
|
118.7
|
82.7
|
9820
|
3100
|
8500
|
12000
|
18500
|
|
T38×22×13
|
123
|
86.1
|
10590
|
3200
|
9000
|
11000
|
15800
|
|
T40×24×16
|
125
|
86.3
|
12100
|
3900
|
8200
|
11400
|
16400
|
|
TYPE
|
Dimension:mm
|
Weight: g
|
|
D1
|
D2
|
H
|
|
|
T46×31×12
|
46.0±0.5
|
31.0±0.5
|
12.0±0.4
|
50.8
|
|
T48×30×15
|
48.0±0.5
|
30.0±0.5
|
15.0±0.4
|
75.4
|
|
T49×31.8×16
|
49.0±0.6
|
31.8±0.6
|
16.0±0.6
|
74.6
|
|
T49×34×16
|
49.0±0.6
|
33.8±0.5
|
16.0±0.4
|
73.2
|
|
T50×25×20
|
50.0±0.8
|
25.0±0.5
|
20.0±0.5
|
125.0
|
|
T50×30×19
|
50.0±0.8
|
30.0±0.7
|
19.0±0.5
|
107.0
|
|
T50×35×20
|
50.0±0.8
|
35.0±0.7
|
20.0±0.5
|
93.0
|
|
T50.8×31.8×19.1
|
50.8±05
|
31.8±0.5
|
19.1±0.5
|
107.0
|
|
T60×38×12
|
60.0±1.5
|
38.0±1.0
|
12.0±0.5
|
93.0
|
|
T60×38×20
|
60.0±1.5
|
38.0±1.0
|
20.0±0.5
|
137.7
|
|
T63×38×25
|
63.0±1.5
|
38.0±1.0
|
25.0±0.7
|
221.0
|
|
T68×44×15
|
68.0±1.5
|
44.0±1.0
|
15.0±0.7
|
143.0
|
|
T74×39×13
|
74.0±1.5
|
38.9±1.0
|
12.7±0.7
|
177.0
|
|
T79×50×26.5
|
79.0±1.5
|
50.0±1.0
|
26.5±0.7
|
355.0
|
|
T85.7×55.5×12.7
|
85.7±1.5
|
55.5±1.0
|
12.7±0.7
|
203.0
|
|
T100×50×20
|
100±1.2
|
50.0±0.9
|
20.0±0.4
|
565.0
|
|
T120×60×20
|
120±1.4
|
60.0±1.0
|
20.0±0.4
|
815.0
|
|
T124×60×40
|
124±1.8
|
60.0±1.5
|
40.0±0.4
|
1490.0
|
|
T140×65×20
|
140±1.8
|
65.0±1.5
|
20.0±0.8
|
1013.0
|
|
T150×110×27
|
150±2.0
|
110±2.0
|
27.0±1.0
|
1058.0
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±20%）
|
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
M4P
|
M5K
|
M7K
|
M10K
|
|
T46×31×12
|
93
|
114
|
10600
|
2500
|
5100
|
7200
|
10300
|
|
T48×30×15
|
133
|
118
|
15700
|
3400
|
7050
|
9900
|
14000
|
|
T49×31.8×16
|
135
|
123
|
16622
|
3800
|
7600
|
9300
|
14800
|
|
T49×34×16
|
120
|
127.2
|
15264
|
4300
|
5800
|
9300
|
14800
|
|
T50×25×20
|
240
|
109
|
26200
|
6360
|
13000
|
19000
|
28000
|
|
T50×30×19
|
186
|
120
|
22400
|
4200
|
9000
|
12800
|
19000
|
|
T50×35×20
|
148
|
131
|
19403
|
2670
|
6800
|
9500
|
14500
|
|
T50.8×31.8×19.1
|
178
|
125
|
22300
|
4300
|
8650
|
12500
|
18000
|
|
T60×38×12
|
111
|
155
|
18840
|
2350
|
4850
|
6800
|
9750
|
|
T60×38×20
|
185
|
155
|
28700
|
3900
|
8100
|
11300
|
16000
|
|
T63×38×25
|
304
|
152
|
46200
|
4024
|
8140
|
11500
|
16280
|
|
T68×44×15
|
175
|
171
|
29925
|
2953
|
6210
|
9750
|
14200
|
|
T74×39×13
|
214
|
165
|
35310
|
4024
|
8140
|
12200
|
16280
|
|
T79×50×26.5
|
377.6
|
196
|
73913
|
4725
|
10800
|
15200
|
23000
|
|
T85.7×55.5×12.7
|
189
|
215
|
40635
|
2726
|
5520
|
7820
|
11040
|
|
T100×50×20
|
500
|
235.5
|
117750
|
5336
|
13340
|
18210
|
26680
|
|
T120×60×20
|
600
|
282.6
|
169560
|
5020
|
1140
|
1560
|
19270
|
|
T124×60×40
|
1202
|
260
|
312684
|
11136
|
27840
|
39310
|
55680
|
|
T140×65×20
|
718.2
|
294
|
211292
|
5856
|
14640
|
21350
|
29280
|
|
T150×110×27
|
535.9
|
402.1
|
215500
|
3324
|
8312
|
11420
|
16624
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
