Laboratory Magnetic Heated Stirrer Used For Button Cell Lab Preparation
SPECIFICATIONS
1 The TOB-MS system magnetic stirrer is widely used in various large and medium-sized institutions,
environmental protection, scientific research, sanitation, epidemic prevention, petroleum, metallurgy,
chemical industry, medical and other units.
2 This system magnetic stirrer has several models as Magnetic heated stirrer,digital magnetic stirrer,
high temperature magnetic stirrer with heating and so on, customer can choose suitable model according to
their requirements.
3 This system magnetic stirrer used for lithium battery research is used for battery materials anode/cathode
slurry mixing, it is mainly used for coin cell/ button battery laboratory use.
|
Model
|
TOB-MS-78-1
|
TOB-MS-85-2
|

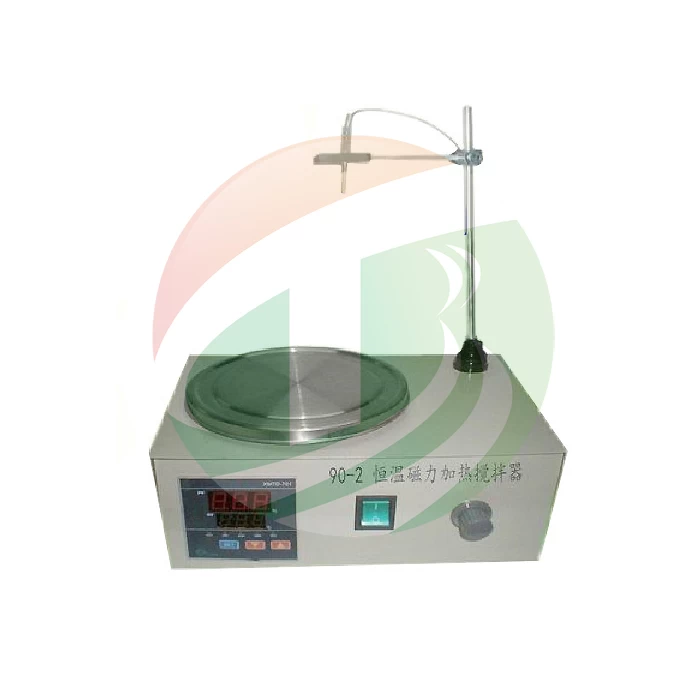

TOB-MS-90-2
|
|
Source voltage
|
AC 220V/110V, Customized
|
|
Motor power
|
25W
|
|
Heating power
|
200W
|
300W
|
300W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 Made of high quality dc motor, low noise, stable speed, fully enclosed heating tray
2 Constant temperature magnetic stirrer can set temperature and temperature display,
can be used long heating, intuitive display accurate
3 Stir rotor is made of Ptfe and high quality magnets,
High temperature resistance, abrasion resistance, corrosion resistance, strong magnetic
|
|
Mixing speed
|
0-2400r/min, Step-less speed regulation
|
|
Effective capacity
|
20-1000ml
|
|
Temperature range
|
RT-100℃
|
RT-100℃
|
RT-200℃
|
|
Dimension(H*L*W)
|
120*210*65mm
|
REFERENCE PICTURES

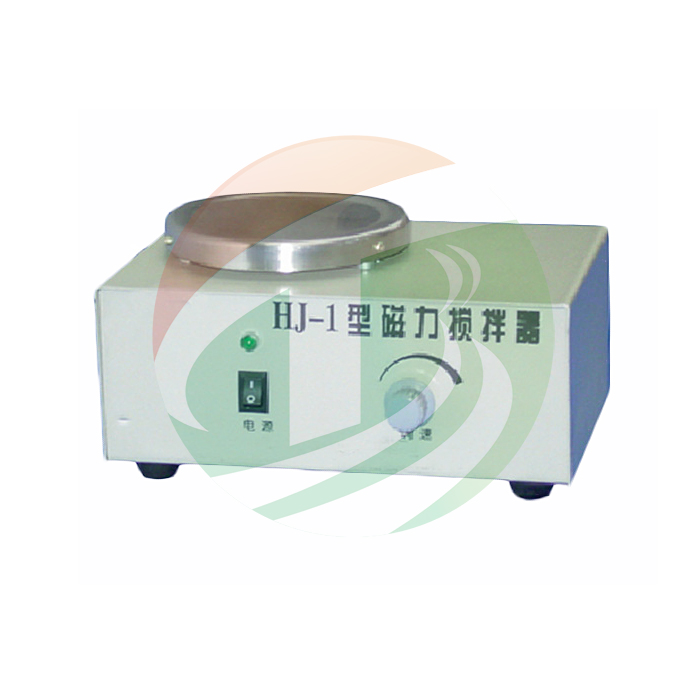

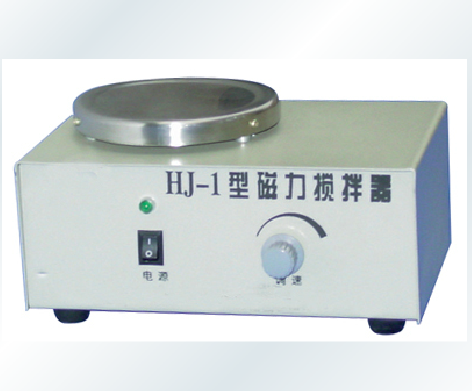

Magnetic stirrer without heating TOB-MS-HJ-1

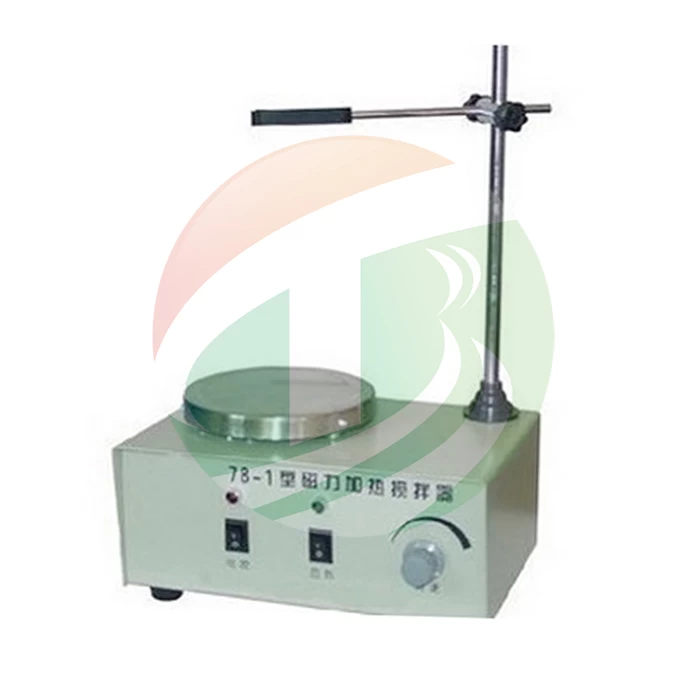

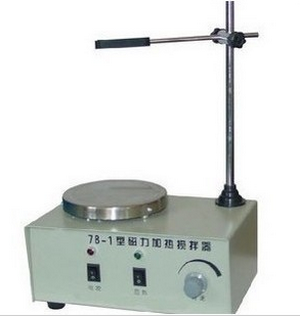

Magnetic heated stirrer TOB-MS-78-1

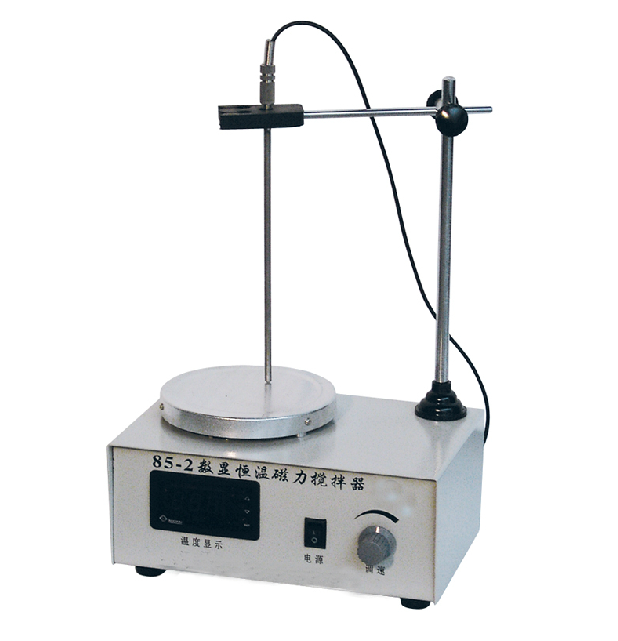

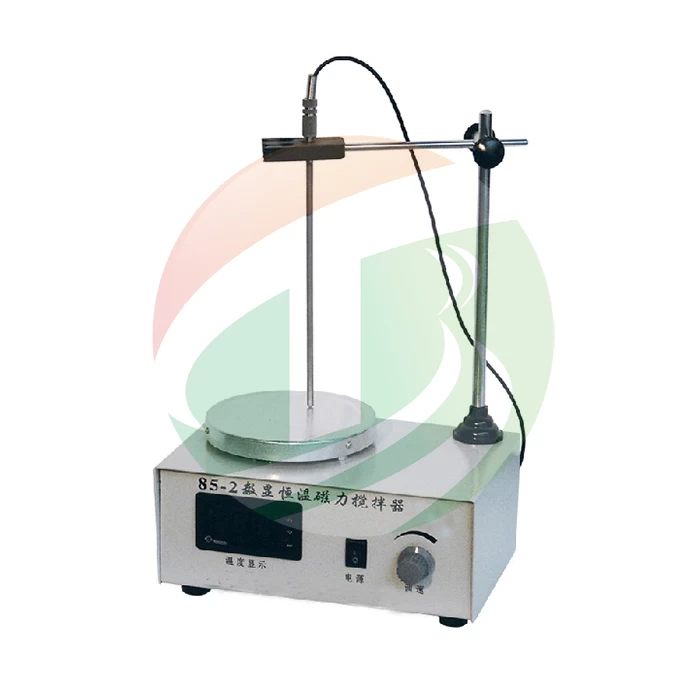

Magnetic heated stirrer with Temperature digital display TOB-MS-85-2
