Magnetic Stirrer With Hot Plate For Laboratory
SPECIFICATIONS
• Digital temperature control with max. temperature up to 280°C
• Digital speed control with max. speed up to 1500rpm
• Stainless steel work plate with ceramic coating provides good chemical resistant performance
• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C
• LED display shows temperature and speed
• The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
|
Specifications
|
MS-H280-Pro
|
|
Work plate Dimension
|
φ135mm(5 inch)
|
|
Work plate material
|
stainless steel cover with ceramic
|
|
Motor type
|
Brushless DC motor
|
|
Motor rating input
|
5W
|
|
Motor rating output
|
3W
|
|
Power
|
515W
|
|
Heating output
|
500W
|
|
Voltage
|
100-120/200-240V 50/60Hz
|
|
Stirring positions
|
1
|
|
Max. stirring quantity[H2O]
|
3L
|
|
Max. magnetic bar[length]
|
50mm
|
|
Speed range
|
100-1500rpm
|
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Speed display resolution
|
±1rpm
|
|
Heating temperature range
|
Room temp.-280, increment 1°C
|
|
Control accuracy of work plate
|
±1°C(<100°C) ±1%(>100°C)
|
|
Over heat Protection
|
320°C
|
|
Temperature display accuracy
|
±1°C
|
|
External temperature sensor
|
PT1000 (accuracy ±0.5°C)
|
|
"Hot" warning
|
50°C
|
|
Protection class
|
IP21
|
|
Dimension [W x D x H]
|
150×260×80mm
|
|
Weight
|
1.8kg
|
|
Permissible ambient temperature and humidity
|
5-40℃ 80%RH
|

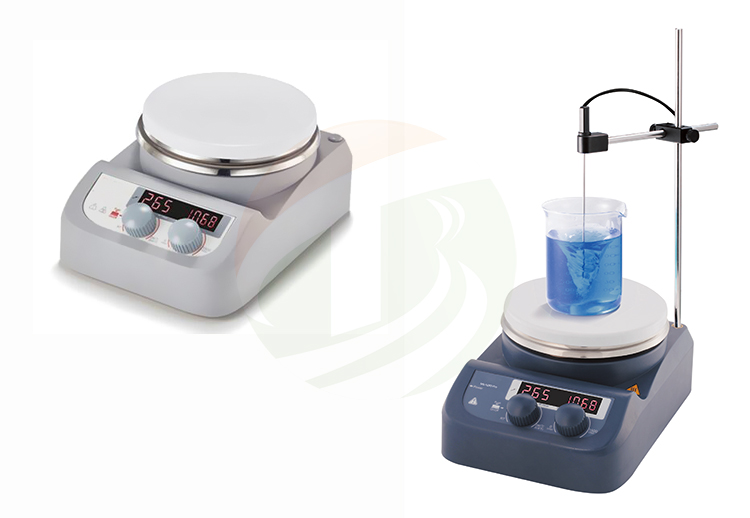

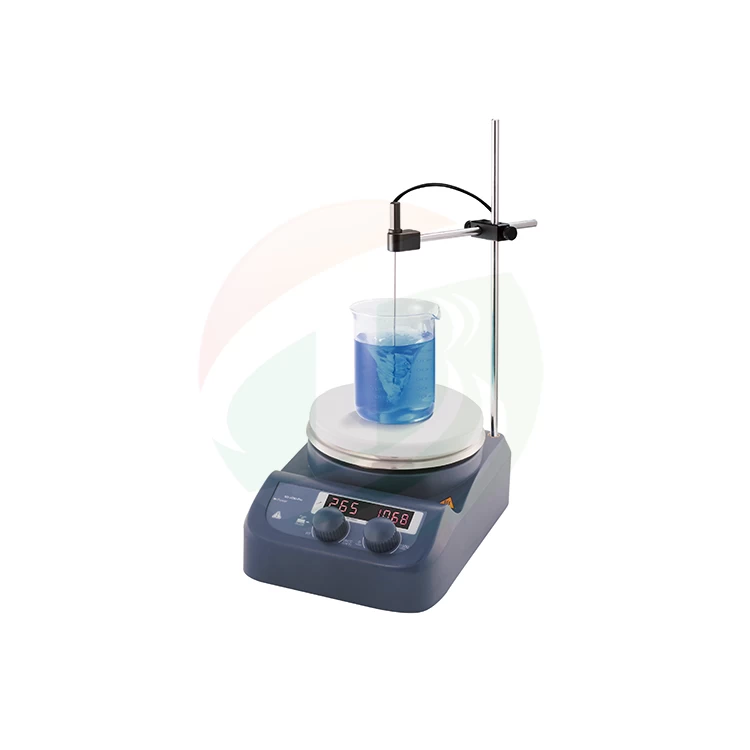

Product Display
