Maintenance Free Plain Bearings MIB..T AIB..T SIB..T

BALL: 52100 Bearing Steel,Heat Treated,Hard Chrome Plated,Precision Ground

RACE:

MIB: Low Carbon Steel, I.D.Protective Coated for Corrosion Resistance,Oil coated Mfr.Option-Stailess Steel, Heat Treated.

AIB: Alloy Steel,Heat Treated, I.D.Protective Coated for Corrosion Resistance,Oil coated Mfr.Option-Stailess Steel, Heat Treated.

SIB: Stainless Steel,Heat Treated and Oil Coated

Facebook Twitter Pinterest LinkedIn 分享

Description

Spherical Plain Bearings MIB10T

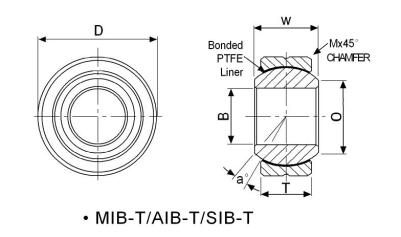

Bearing No.	DIMENSIONS IN INCHES
	B +.0015 -0.0005	D + .0000 -.0007	T +.0000	W ±.005	0 Flat Dia. Ref.	M Chamfer Ref	Ball Dia. Ref.	Misalign Angle a0	Ult. Radial Static Load Lbs.		Approx. Brg.Wgt. Lbs.
									Ult. Radial Static Load Lbs.
									MIB-T	AIB-T/SIB-T
MIB3T	0.1900	0.5312	0.250	0.312	0.307	0.020	0.437	10.5	4,370	6,555	0.02
MIB4T	0.2500	0.6094	0.281	0.375	0.331	0.020	0.500	14.5	5,620	8,430	0.02
MIB5T	0.3125	0.7500	0.344	0.437	0.448	0.020	0.625	11.0	8,600	12,900	0.04
MIB6T	0.3750	0.8437	0.406	0.500	0.516	0.020	0.719	9.50	11,677	17,516	0.06
MIB7T	0.4375	1.0000	0.437	0.562	0.587	0.020	0.812	11.0	14,194	21,291	0.08
MIB8T	0.5000	1.0937	0.500	0.625	0.699	0.020	0.937	9.50	18,740	28,110	0.11
MIB10T	0.6250	1.3125	0.562	0.750	0.839	0.030	1.125	12.0	25,290	37,935	0.17
MIB12T	0.7500	1.5000	0.687	0.875	0.978	0.030	1.312	10.0	32,448	48,672	0.25
MIB16T	1.0000	2.1250	1.000	1.375	1.275	0.060	1.875	15.0	60,000	90,000	0.79

Bearing No.	DIMENSIONS IN INCHES
	B +.0015 -0.0005	D + .0000 -.0007	T +.0000	W ±.005	0 Flat Dia. Ref.	M Chamfer Ref	Ball Dia. Ref.	Misalign Angle a0	Ult. Radial Static Load Lbs.		Approx. Brg.Wgt. Lbs.
									Ult. Radial Static Load Lbs.
									MIB-T	AIB-T/SIB-T
AIB3T	0.1900	0.5312	0.250	0.312	0.307	0.020	0.437	10.5	4,370	6,555	0.02
AIB4T	0.2500	0.6094	0.281	0.375	0.331	0.020	0.500	14.5	5,620	8,430	0.02
AIB5T	0.3125	0.7500	0.344	0.437	0.448	0.020	0.625	11.0	8,600	12,900	0.04
AIB6T	0.3750	0.8437	0.406	0.500	0.516	0.020	0.719	9.50	11,677	17,516	0.06
AIB7T	0.4375	1.0000	0.437	0.562	0.587	0.020	0.812	11.0	14,194	21,291	0.08
AIB8T	0.5000	1.0937	0.500	0.625	0.699	0.020	0.937	9.50	18,740	28,110	0.11
AIB10T	0.6250	1.3125	0.562	0.750	0.839	0.030	1.125	12.0	25,290	37,935	0.17
AIB12T	0.7500	1.5000	0.687	0.875	0.978	0.030	1.312	10.0	32,448	48,672	0.25
AIB16T	1.0000	2.1250	1.000	1.375	1.275	0.060	1.875	15.0	60,000	90,000	0.79

Bearing No.	DIMENSIONS IN INCHES
	B +.0015 -0.0005	D + .0000 -.0007	T +.0000	W ±.005	0 Flat Dia. Ref.	M Chamfer Ref	Ball Dia. Ref.	Misalign Angle a0	Ult. Radial Static Load Lbs.		Approx. Brg.Wgt. Lbs.
									Ult. Radial Static Load Lbs.
									MIB-T	AIB-T/SIB-T
SIB3T	0.1900	0.5312	0.250	0.312	0.307	0.020	0.437	10.5	4,370	6,555	0.02
SIB4T	0.2500	0.6094	0.281	0.375	0.331	0.020	0.500	14.5	5,620	8,430	0.02
SIB5T	0.3125	0.7500	0.344	0.437	0.448	0.020	0.625	11.0	8,600	12,900	0.04
SIB6T	0.3750	0.8437	0.406	0.500	0.516	0.020	0.719	9.50	11,677	17,516	0.06
SIB7T	0.4375	1.0000	0.437	0.562	0.587	0.020	0.812	11.0	14,194	21,291	0.08
SIB8T	0.5000	1.0937	0.500	0.625	0.699	0.020	0.937	9.50	18,740	28,110	0.11
SIB10T	0.6250	1.3125	0.562	0.750	0.839	0.030	1.125	12.0	25,290	37,935	0.17
SIB12T	0.7500	1.5000	0.687	0.875	0.978	0.030	1.312	10.0	32,448	48,672	0.25
SIB16T	1.0000	2.1250	1.000	1.375	1.275	0.060	1.875	15.0	60,000	90,000	0.79
