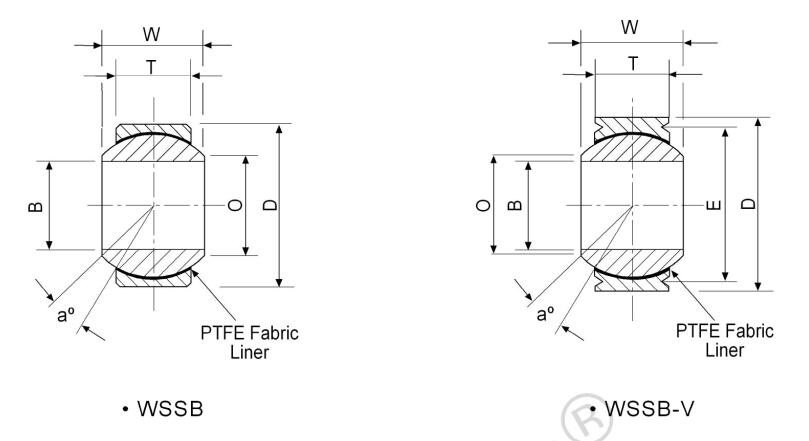

| Bearing No. |
B
+.0000
-.0005
|
D
+.0000
-.0005
|
W
+.000
-.002
|
T
±.005
|
E
+.000
-.010
|
O
REF
|
Ball Diameter REF |
a°
Misalign Angle
|
Static
Radial
Limit Load
(Pounds)
|
Static
Axial
Limit Load
(Pounds)
|
Dynzmic
Oscillating
Radial
Load
(Pounds)
|
Approx.
Weight
(Pounds)
|
|
Ball
Bore
|
Outside Diameter |
Ball
Width
|
Race
Width
|
"V'Groove Diameter | Ball Flat Diameter | |||||||
| WSSB3 | .1900 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9.000, | 1,770 | 3,770 | .031 |
| WSSB4 | .2500 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9,000 | 1,770 | 3,770 | .031 |
| WSSB5 | .3125 | .6875 | .437 | .317 | .627 | .401 | .593 | 14 | 9,400 | 1,640 | 4.650 | .035 |
| WSSB6 | .3750 | .8125 | .500 | .406 | .714 | .471 | .687 | 8 | 13,700 | 2,630 | 6,390 | .060 |
| WSSB7 | .4375 | .9375 | .562 | .442 | .839 | .542 | .781 | 10 | 20.700 | 3,650 | 9,390 | .080 |
| WSSB8 | .5000 | 1.0000 | .625 | .505 | .902 | .612 | .875 | 9 | 27.500 | 4,970 | 12,150 | .100 |
| WSSB10 | .6250 | 1.1875 | .750 | .567 | 1.089 | .752 | 1.062 | 12 | 39,000 | 6,130 | 16,700 | .160 |
| WSSB12 | .7500 | 1.3750 | .875 | .630 | 1.253 | .892 | 1.250 | 13 | 52,300 | 7,730 | 22,100 | .240 |
| WSSB14 | .8750 | 1.6250 | .875 | .755 | 1.503 | 1.061 | 1.375 | 6 | 67,300 | 10,800 | 28,200 | .350 |
| WSSB16 | 1.0000 | 2.1250 | 1.375 | 1.005 | 2.003 | 1.275 | 1.875 | 12 | 137,000 | 19,300 | 53,700 | .970 |
| Bearing No. |
B
+.0000
-.0005
|
D
+.0000
-.0005
|
W
+.000
-.002
|
T
±.005
|
E
+.000
-.010
|
O
REF
|
Ball Diameter REF |
a°
Misalign Angle
|
Static
Radial
Limit Load
(Pounds)
|
Static
Axial
Limit Load
(Pounds)
|
Dynzmic
Oscillating
Radial
Load
(Pounds)
|
Approx.
Weight
(Pounds)
|
|
Ball
Bore
|
Outside Diameter |
Ball
Width
|
Race
Width
|
"V'Groove Diameter | Ball Flat Diameter | |||||||
| WSSB3V | .1900 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9.000, | 1,770 | 3,770 | .031 |
| WSSB4V | .2500 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9,000 | 1,770 | 3,770 | .031 |
| WSSB5V | .3125 | .6875 | .437 | .317 | .627 | .401 | .593 | 14 | 9,400 | 1,640 | 4.650 | .035 |
| WSSB6V | .3750 | .8125 | .500 | .406 | .714 | .471 | .687 | 8 | 13,700 | 2,630 | 6,390 | .060 |
| WSSB7V | .4375 | .9375 | .562 | .442 | .839 | .542 | .781 | 10 | 20.700 | 3,650 | 9,390 | .080 |
| WSSB8V | .5000 | 1.0000 | .625 | .505 | .902 | .612 | .875 | 9 | 27.500 | 4,970 | 12,150 | .100 |
| WSSB10V | .6250 | 1.1875 | .750 | .567 | 1.089 | .752 | 1.062 | 12 | 39,000 | 6,130 | 16,700 | .160 |
| WSSB12V | .7500 | 1.3750 | .875 | .630 | 1.253 | .892 | 1.250 | 13 | 52,300 | 7,730 | 22,100 | .240 |
| WSSB14V | .8750 | 1.6250 | .875 | .755 | 1.503 | 1.061 | 1.375 | 6 | 67,300 | 10,800 | 28,200 | .350 |
| WSSB16V | 1.0000 | 2.1250 | 1.375 | 1.005 | 2.003 | 1.275 | 1.875 | 12 | 137,000 | 19,300 | 53,700 | .970 |
This series is also available with an optionl 52100 heat treated and hard chrome plated ball. To specify this configuration use p/n WSBT(3-16)OR WSBT(3-16)v in place of part numbers in table.
