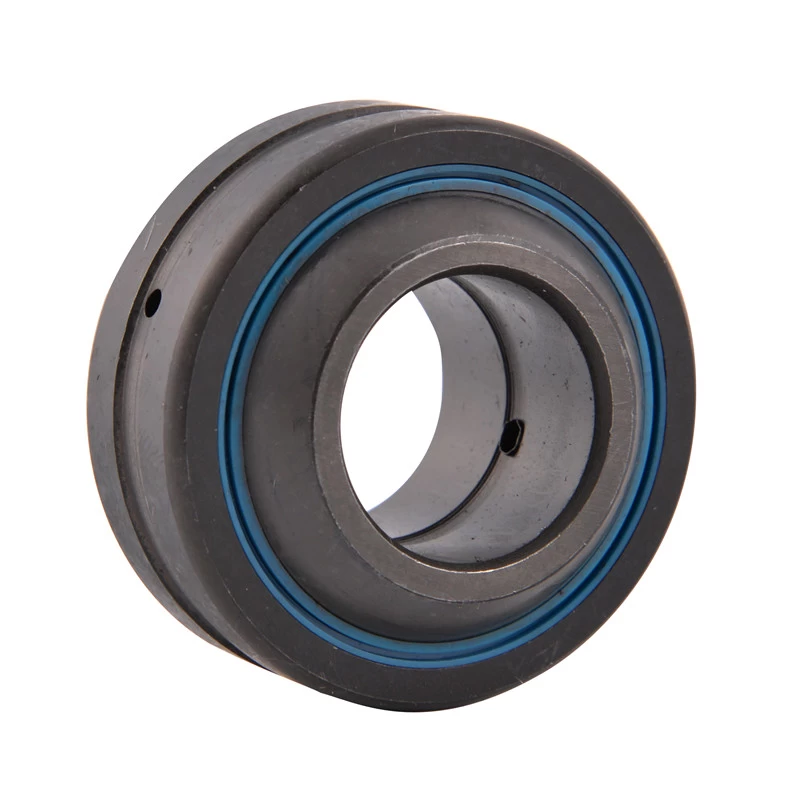

Maintenance Required Plain Bearings COM HCOM


Inner Race: Gcr15 Steel,Hardened HRC 58-64,Precision ground,Hard chrome plated.

Outer Race: Carbon Steel

Sliding contact surfaces: Steel/Steel


Facebook Twitter Pinterest LinkedIn 分享

Plain Bearings COM5

Bearing No. Dimensions(mm)
Misalign
angle
a°
Ult,Radial
static
load (KN)
Weight
≈kg
d +0 038
  -0.012
D +0
 -0.016
B ±0.127 C±0.127 dk rsx45°
COM3  0.1900 0.5625 0.281 0.281 0.406 0.020 11 21.6 0.0045
COM4  0.2500 0.6562 0.343 0.250 0.500 0.022 13.5 33 0.009
COM5  0.3125 0.7500 0.375 0.281 0.562 0.032 12 43.2 0.0136
COM6  0.3750 0.8125 0.406 0.312 0.656 0.032 10 56 0.018
COM7  0.4375 0.9062 0.437 0.434 0.718 0.032 8 63 0.022
COM8  0.5000 1.0000 0.500 0.390 0.813 0.032 9.5 88.4 0.031
COM9  0.5625 1.0937 0.562 0.437 0.906 0.032 9.5 110.9 0.04
COM10  0.6250 1.1875 0.625 0.500 1.000 0.032 8.5 141.9 0.049
COM12  0.7500 1.4375 0.750 0.593 1.187 0.044 9 212.98 0.090
COM14  0.8750 1.5625 0.875 0.703 1.312 0.044 9.5 279.9 0.118
COM16  1.0000 1.7500 1.00 0.797 1.500 0.044 10 368.3 0.177


Bearing No. Dimensions(mm)
Misalign
angle
a°
Ult,Radial
static
load (KN)
Weight
≈kg
d +0 038
  -0.012
D +0
 -0.016
B ±0.127 C±0.127 dk rsx45°
HCOM16  1.0000 2.0000 1.000 0.781 1.678 0.032 9 472.5 0.249
HCOM19  1.1875 2.3750 1.187 0.937 2.000 0.032 8.5 672.1 0.408
HCOM20  1.2500 2.3750 1.175 0.937 2.000 0.032 8.5 672.1 0.408
HCOM24  1.5000 2.7500 1.375 1.094 2.312 0.032 8.5 907.1 0.616
HCOM28  1.7500 3.1250 1.562 1.250 2.625 0.044 8.0 1176.7 0.884
HCOM32  2.0000 3.5000 1.750 1.375 2.937 0.044 8.5 1448.2 1.206
