Maintenance Required Plain Bearings GAC..S


Inner Race: Gcr15 Steel,Hardened HRC 58-64,Surface phosphated.

Outer Race: Gcr15 Steel,Hardened HRC 54-60,Surface phosphated.

Sliding contact surfaces: Steel/Steel


Facebook Twitter Pinterest LinkedIn 分享

Angular Contact Spherical Plain Bearing GAC25S


Bearing No. Dimensions(mm)
Load ratings
KN
a°
≈
Weight
≈kg

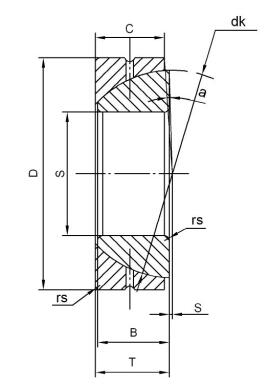

d D B c T dk s
rs
min
Dynamic Static
GAC25S 25 47 15 14 15 42 0.6 1 50 250 2.5 0.148
GAC28S 28 52 15 15 16 47 1 1 60 300 2 0.186
GAC30S 30 55 17 15 17 49.5 1.3 1 63 315 4.5 0.208
GAC32S 32 58 17 16 17 52 2 1 71 354 2 0.241
GAC35S 35 62 18 16 18 55.5 2.1 1 78 390 4 0.268
GAC40S 40 68 19 17 19 62 2.8 1 92 463 5 0.327
GAC45S 45 75 20 18 20 68.5 3.5 1 108 540 3 0.416
GAC50S 50 80 20 19 20 74 4.3 1 123 618 1.5 0.455
GAC55S 55 90 23 20 23 82 5 1.1 144 721 4 0.645
GAC60S 60 95 23 21 23 88.5 5.7 1.1 163 817 2.5 0.714
GAC65S 65 100 23 22 23 93.5 6.5 1.1 180 905 1 0.759
GAC70S 70 110 25 23 25 102 7.2 1.1 206 1030 2 1.04
GAC75S 75 115 25 24 25 107 7.9 1.1 220 1129 1 1.12
GAC80S 80 125 29 25.5 29 115 8.6 1.1 258 1290 3.5 1.54
GAC85S 85 130 29 26.5 29 122 9.4 1.1 284 1422 2 1.61
GAC90S 90 140 32 28 32 128.5 10.1 1.5 316 1580 3.5 2.09
GAC95S 95 145 32 29.5 32 135 10.8 1.5 350 1750 2 2.22
GAC100S 100 150 32 31 32 141 11.6 1.5 384 1923 0.5 2.34
GAC105S 105 160 35 32.5 35 148 12.3 2 423 2116 2 2.93
GAC110S 110 170 38 34 38 155 13 2 463 2318 3 3.68
GAC120S 120 180 38 37 38 168 14.5 2 547 2735 0.5 3.97
GAC130S 130 200 45 43 45 188 18 2.5 710 3550 1 5.92
GAC140S 140 210 45 43 45 198 19 2.5 740 3740 1 6.33
GAC150S 150 225 48 46 48 211 20 3 850 4270 1 8.01
GAC160S 160 240 51 49 51 225 20 3 970 4850 1 9.42
GAC170S 170 260 57 55 57 246 21 3 1190 5950 1 12.3
GAC180S 180 280 64 61 64 260 21 3 1395 6970 1 17.4
GAC190S 190 290 64 62 64 275 26 3 1500 7500 0.5 18.2
GAC200S 200 310 70 66 70 290 26 3 1680 8420 1.5 22.5
