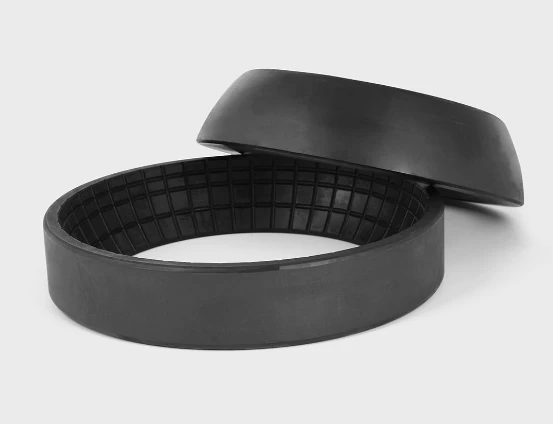

Maintenance Required Plain Bearings GACZ..S



Inner Race: Gcr15 Steel,Hardened HRC 58-64,Precision ground,Surface phosphated
Outer Race: Gcr15 Steel,Hardened HRC 54-60,Precision ground,Surface phosphated
Sliding contact surfaces: Steel/Steel



Facebook Twitter Pinterest LinkedIn 分享

Angular Contact Spherical Plain Bearings GECZ15S

Bearing No. Dimensions(mm/inch)
Load ratings
KN
weight
≈kg

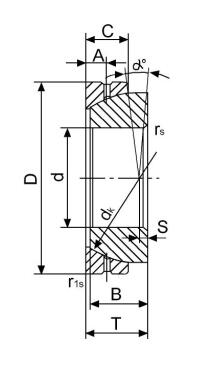

d D B c T dk s A
rs r1s
min
α°
≈
Dynamic Static
GACZ12S 12.7 22.225 6.86 4.83 7.62 18.26 1.3 2.39 0.51 7 6 18 0.013
GACZ12S 0.5 0.875 0.27 0.19 0.3 0.719 0.051 0.094 0.02 7 6 18 0.013
GACZ15S 15.875 26.988 8.64 6.35 9.40 22.83 1.48 2.77 0.76 6 10 31 0.025
GACZ15S 0.625 1.0625 0.34 0.25 0.37 0.899 0.058 0.109 0.03 6 10 31 0.025
GACZ19S 19.05 31.75 10.41 7.87 11.18 27.43 1.79 3.18 1 6 16 47 0.038
GACZ19S 0.75 1.25 0.41 0.31 0.44 1.08 0.07 0.125 0.04 6 16 47 0.038
GACZ22S 22.225 36.512 12.19 9.65 13.21 31.95 2.02 4.37 2 5.5 22 66 0.049
GACZ22S 0.875 1.4375 0.48 0.38 0.52 1.258 0.08 0.172 0.08 5.5 22 66 0.049
GACZ25S 25.4 41.275 13.97 11.18 15.24 36.50 2.54 5.16 2 6 29 87 0.085
GACZ25S 1 1.625 0.55 0.44 0.6 1.437 0.1 0.203 0.08 6 29 87 0.085
GACZ31S 31.75 50.8 17.78 13.97 18.80 45.59 3.36 5.94 2 6 47 142 0.159
GACZ31S 1.25 2 0.7 0.55 0.74 1.795 0.132 0.234 0.08 6 47 142 0.159
GACZ34S 34.925 55.562 19.56 15.24 21.34 49.20 3.69 7.14 2.54 4 53 159 0.213
GACZ34S 1.375 2.1875 0.77 0.6 0.84 1.937 0.145 0.281 0.1 4 53 159 0.213
GACZ38S 38.1 61.912 21.34 16.76 23.11 54.74 3.93 7.92 2.54 5.5 66 197 0.301
GACZ38S 1.5 2.4375 0.84 0.66 0.91 2.155 0.155 0.312 0.1 5.5 66 197 0.301
GACZ44S 44.45 71.438 24.89 20.07 27.18 63.88 4.72 8.33 2.54 6 91 273 0.458
GACZ44S 1.75 2.8125 0.98 0.79 1.07 2.515 0.186 0.328 0.1 6 91 273 0.458
GACZ50S 50.8 80.962 28.70 23.37 31.24 73.02 5.51 9.52 3.56 5.5 122 365 0.671
GACZ50S 2 3.1875 1.13 0.92 1.23 2.875 0.217 0.375 0.14 5.5 122 365 0.671
GACZ57S 57.15 90.488 32.26 26.67 35.31 82.17 6.18 11.51 3.56 5.5 155 466 0.948
GACZ57S 2.25 3.5625 1.27 1.05 1.39 3.235 0.243 0.453 0.14 5.5 155 466 0.948
GACZ63S 63.5 100.013 36.07 29.97 39.12 91.19 6.79 12.7 3.56 5 196 589 1 13
GACZ63S 2.5 3.9375 1.42 1.18 1.54 3.59 0.267 0.5 0.14 5 196 589 1 13
GACZ69S 69.85 111.125 39.62 32.38 43.18 100.33 7.46 13.08 4.6 5 231 694 1.75
GACZ69S 2.75 4.375 1.56 1.275 1.7 3.95 0.294 0.515 0.18 5 231 694 1.75
GACZ76S 76.2 120.65 43.43 35.69 47.24 109.52 8.17 14.68 4.6 5 279 838 2.28
GACZ76S 3 4.75 1.71 1.405 1.86 4.312 0.322 0.578 0.18 5 279 838 2.28
GACZ82S 82.55 130.175 47.24 39.24 51.56 118.74 9.04 16.66 4.6 5 332 995 2.89
GACZ82S 3.25 5.125 1.86 1.545 2.03 4.675 0.356 0.656 0.18 5 332 995 2.89
GACZ88S 88.9 139.7 50.80 42.54 55.37 128.02 9.51 17.86 4.6 5 389 1167 3.57
GACZ88S 3.5 5.5 2 1.675 2.18 5.04 0.374 0.703 0.18 5 389 1167 3.57
GACZ95S 95.25 149.225 54.61 45.85 59.44 136.91 10.1 19.43 4.6 4.5 449 1348 4.35
GACZ95S 3.75 5.875 2.15 1.805 2.34 5.39 0.398 0.765 0.18 4.5 449 1348 4.35
GACZ101S 101.6 158.75 58.42 49.15 63.50 146.05 10.4 19.84 4.6 4.5 515 1545 5.26
GACZ101S 4 6.25 2.3 1.935 2.5 5.75 0.409 0.781 0.18 4.5 515 1545 5.26
GACZ114S 114.3 177.8 65.79 55.75 71.12 164.46 12.4 22.22 4.6 4.5 663 1990 7.76
GACZ114S 4.5 7 2.59 2.195 2.8 6.475 0.488 0.875 0.18 4.5 663 1990 7.76
GACZ127S 127 196.85 73.15 62.36 79.50 182.63 13.9 25.4 4.6 4.5 818 2445 11.07
GACZ127S 5 7.75 2.88 2.455 3.13 7.19 0.547 1 0.18 4.5 818 2445 11.07
GACZ152S 152.4 222.25 78.74 66.42 85.72 207.16 16.1 34.8 4.6 4.5 985 2955 17.37
GACZ152S 6 8.75 3.1 2.615 3.375 8.156 0.634 1.37 0.18 4.5 985 2955 17.37
