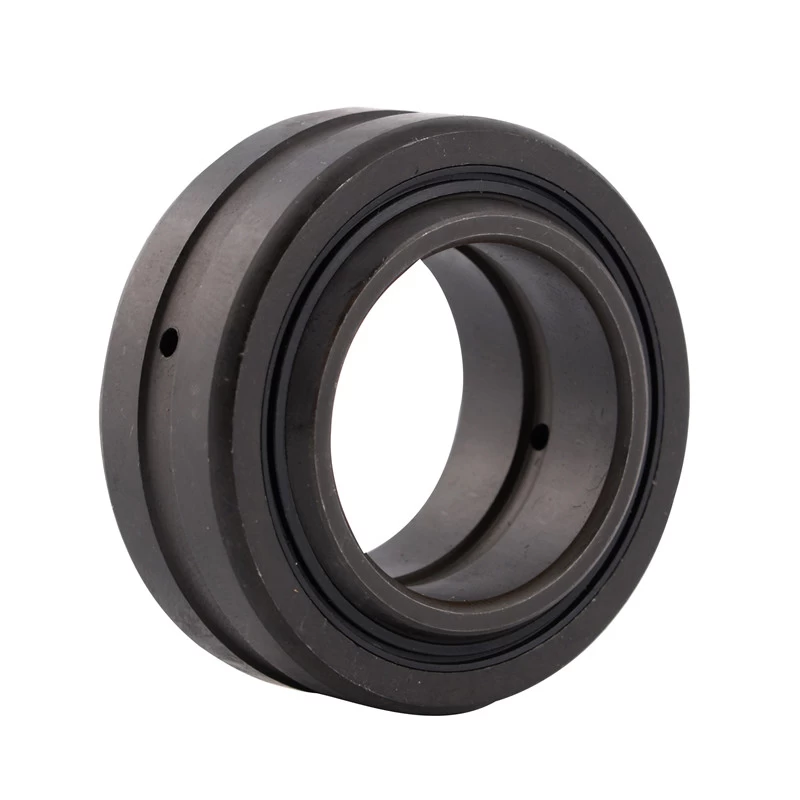

Maintenance Required Plain Bearings GE..E GE..ES GE..ES-2RS


Inner Race: Gcr15 Steel,Hardened HRC 58-64,Surface phosphated.

Outer Race: Gcr15 Steel,Hardened HRC 54-60,Surface phosphated.

Sliding contact surfaces: Steel/Steel



Facebook Twitter Pinterest LinkedIn 分享

Plain Bearings GE10E

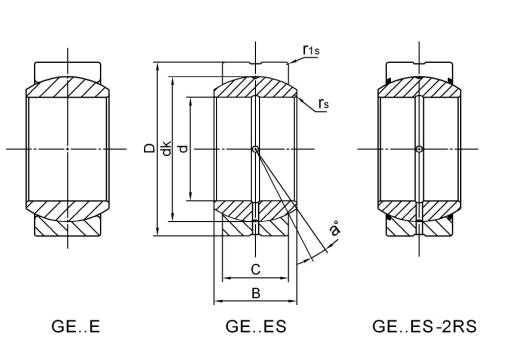

Bearing No. Dimensions(mm)
Load ratings
KN
a°
≈
weight
≈ kg
d D B c dk rs r1s Dynamic Static
GE4E 4 12 5 3 8 0.3 0.3 2 10 16 0.003
GE5E 5 14 6 4 10 0.3 0.3 3.4 17 13 0.005
GE6E 6 14 6 4 10 0.3 0.3 3.4 17 13 0.004
GE8E 8 16 8 5 13 0.3 0.3 5.5 27 15 0.008
GE10E 10 19 9 6 16 0.3 0.3 8.1 40 12 0.011
GE12E 12 22 10 7 18 0.3 0.3 10 53 10 0.015
GE15ES 15 26 12 9 22 0.3 0.3 16 84 8 0.027
GE17ES 17 30 14 10 25 0.3 0.3 21 106 10 0.041
GE20ES 20 35 16 12 29 0.3 0.3 30 146 9 0.066
GE25ES 25 42 20 16 35.5 0.6 0.6 48 240 7 0.119
GE30ES 30 47 22 18 40.7 0.6 0.6 62 310 6 0.153
GE35ES 35 55 25 20 47 0.6 1 79 399 6 0.233
GE40ES 40 62 28 22 53 0.6 1 99 495 7 0.306
GE45ES 45 68 32 25 60 0.6 1 127 637 7 0.427
GE50ES 50 75 35 28 66 0.6 1 156 780 6 0.546
GE55ES 55 85 40 32 74 0.6 1 200 1000 7 0.939
GE60ES 60 90 44 36 80 1 1 245 1220 6 1.04
GE70ES 70 105 49 40 92 1 1 313 1560 6 1.55
GE80ES 80 120 55 45 105 1 1 400 2000 6 2.31
GE90ES 90 130 60 50 115 1 1 488 2440 5 2.75
GE100ES 100 150 70 55 130 1 1 607 3030 7 4.45
GE110ES 110 160 70 55 140 1 1 654 3270 6 4.82
GE120ES 120 180 85 70 160 1 1 950 4750 6 8.05
GE140ES 140 210 90 70 180 1 1 1070 5350 7 11.02
GE160ES 160 230 105 80 200 1 1 1360 6800 8 14.01
GE180ES 180 260 105 80 225 1.1 1.1 1530 7650 6 18.65
GE200ES 200 290 130 100 250 1.1 1.1 2120 10600 7 28.03
GE220ES 220 320 135 100 275 1.1 1.1 2320 11600 8 35.51
GE240ES 240 340 140 100 300 1.1 1.1 2550 12700 8 39.91
GE260ES 260 370 150 110 325 1.1 1.1 3030 15190 7 51.54
GE280ES 280 400 155 120 350 1.1 1.1 3570 17850 6 65.06
GE300ES 300 430 165 120 375 1.1 1.1 3800 19100 7 78.07

Bearing No. Dimensions(mm)
Load ratings
KN
a°
≈
weight
≈ kg
d D B c dk rs r1s Dynamic Static
GE15ES-2RS 15 26 12 9 22 0.3 0.3 16 84 8 0.027
GE17ES-2RS 17 30 14 10 25 0.3 0.3 21 106 10 0.041
GE20ES-2RS 20 35 16 12 29 0.3 0.3 30 146 9 0.066
GE25ES-2RS 25 42 20 16 35.5 0.6 0.6 48 240 7 0.119
GE30ES-2RS 30 47 22 18 40.7 0.6 0.6 62 310 6 0.153
GE35ES-2RS 35 55 25 20 47 0.6 1 79 399 6 0.233
GE40ES-2RS 40 62 28 22 53 0.6 1 99 495 7 0.306
GE45ES-2RS 45 68 32 25 60 0.6 1 127 637 7 0.427
GE50ES-2RS 50 75 35 28 66 0.6 1 156 780 6 0.546
GE55ES-2RS 55 85 40 32 74 0.6 1 200 1000 7 0.939
GE60ES-2RS 60 90 44 36 80 1 1 245 1220 6 1.04
GE70ES-2RS 70 105 49 40 92 1 1 313 1560 6 1.55
GE80ES-2RS 80 120 55 45 105 1 1 400 2000 6 2.31
GE90ES-2RS 90 130 60 50 115 1 1 488 2440 5 2.75
GE100ES-2RS 100 150 70 55 130 1 1 607 3030 7 4.45
GE110ES-2RS 110 160 70 55 140 1 1 654 3270 6 4.82
GE120ES-2RS 120 180 85 70 160 1 1 950 4750 6 8.05
GE140ES-2RS 140 210 90 70 180 1 1 1070 5350 7 11.02
GE160ES-2RS 160 230 105 80 200 1 1 1360 6800 8 14.01
GE180ES-2RS 180 260 105 80 225 1.1 1.1 1530 7650 6 18.65
GE200ES-2RS 200 290 130 100 250 1.1 1.1 2120 10600 7 28.03
GE220ES-2RS 220 320 135 100 275 1.1 1.1 2320 11600 8 35.51
GE240ES-2RS 240 340 140 100 300 1.1 1.1 2550 12700 8 39.91
GE260ES-2RS 260 370 150 110 325 1.1 1.1 3030 15190 7 51.54
GE280ES-2RS 280 400 155 120 350 1.1 1.1 3570 17850 6 65.06
GE300ES-2RS 300 430 165 120 375 1.1 1.1 3800 19100 7 78.07
