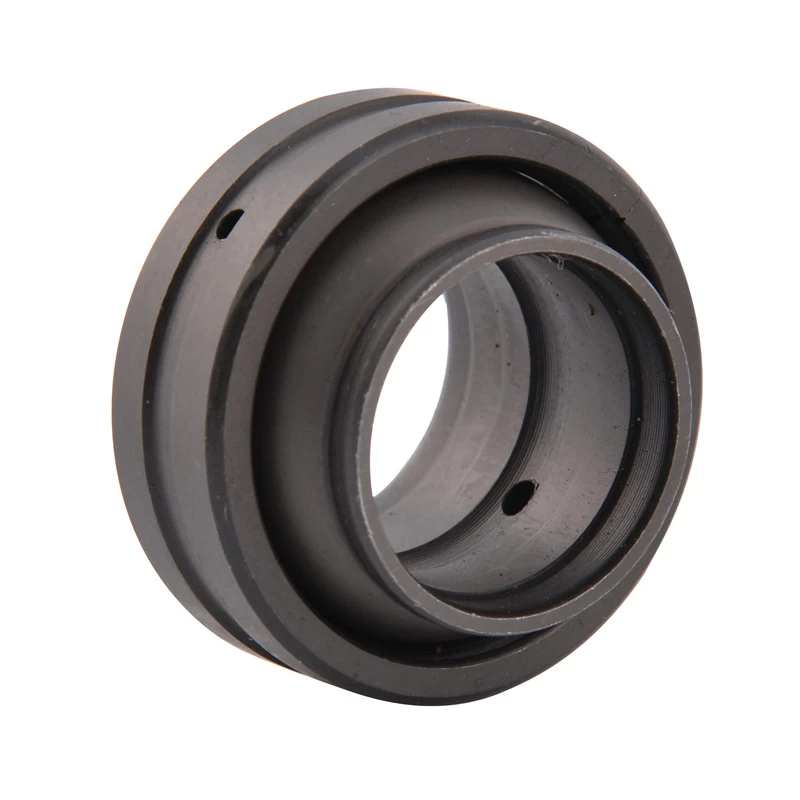

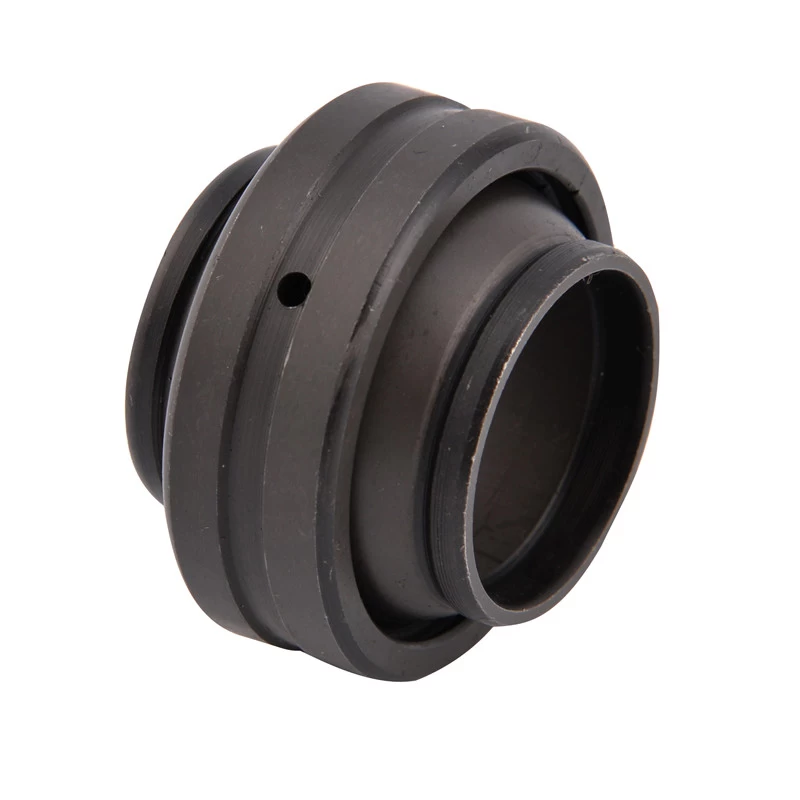

Maintenance Required Plain Bearings GEEW..ES


Inner Race: Gcr15 Steel,Hardened HRC 58-64,Surface phosphated.

Outer Race: Gcr15 Steel,Hardened HRC 54-60,Surface phosphated.

Bore size d≧120mm: Inner and outer race are all Gcr15 SiMn.

Sliding contact surfaces: Steel/Steel


Facebook Twitter Pinterest LinkedIn 分享

Chrome Steel Plain Bearings GEEW20ES

Bearing No. Dimensions(mm)
Load Ratings
KN
a°
 ≈
Weight
≈ kg

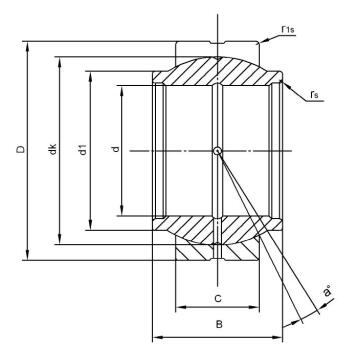

d D B c d1 dk rs r1s Dynamic Static
GEEW12ES* 12 22 12 7 15.5 18 0.3 0.3 10 53 4 0.022
GEEW15ES 15 26 15 9 18.5 22 0.3 0.3 16 84 5 0.031
GEEW16ES 16 28 16 9 20 23 0.3 0.3 17 85 4 0.035
GEEW17ES 17 30 17 10 21 25 0.3 0.3 21 106 7 0.044
GEEW20ES 20 35 20 12 25 29 0.3 0.3 30 146 4 0.071
GEEW25ES 25 42 25 16 30.5 35.5 0.6 0.6 48 240 4 0.131
GEEW30ES 30 47 30 18 34 40.7 0.6 0.6 62 310 4 0.168
GEEW32ES 32 52 32 18 37 43 0.6 1 65 328 4 0.182
GEEW35ES 35 55 35 20 40 47 0.6 1 79 399 4 0.253
GEEW40ES 40 62 40 22 46 53 0.6 1 99 495 4 0.338
GEEW45ES 45 68 45 25 52 60 0.6 1 127 637 4 0.481
GEEW50ES 50 75 50 28 57 66 0.6 1 156 780 4 0.558
GEEW60ES 60 90 60 36 68 80 1 1 245 1220 4 1.15
GEEW63ES 63 95 63 36 71.5 83 1 1 253 1260 4 1.25
GEEW70ES 70 105 70 40 78 92 1 1 313 1560 4 1.71
GEEW80ES 80 120 80 45 91 105 1 1 400 2000 4 2.39
GEEW90ES 90 130 90 50 99 115 1 1 488 2440 4 3.21
GEEW100ES 100 150 100 55 113 130 1 1 607 3030 4 4.79
GEEW110ES 110 160 110 55 124 140 1 1 654 3270 4 5.78
GEEW125ES 125 180 125 70 138 160 1 1 950 4750 4 8.49
GEEW160ES 160 230 160 80 177 200 1 1 1360 6800 4 16.5
GEEW200ES 200 290 200 100 221 250 1.1 1.1 2120 10600 4 32.1
GEEW250ES 250 400 250 120 317 350 1.1 1.1 3750 17800 4 99.1
GEEW320ES 320 520 320 160 405 450 1.1 1.1 6200 30500 4 231
