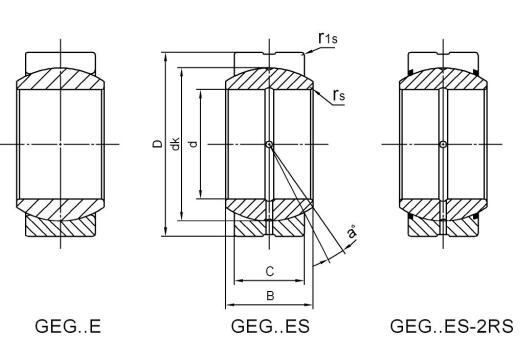

Maintenance Required Plain Bearings GEG..E GEG..ES GEG..ES-2RS


Inner Race: Gcr15 Steel,Hardened HRC 58-64,Surface phosphated.

Outer Race: Gcr15 Steel,Hardened HRC 54-60,Surface phosphated.

Bore size d≧120mm: Inner and outer race are all Gcr15 SiMn.

Sliding contact surfaces: Steel/Steel


Facebook Twitter Pinterest LinkedIn 分享

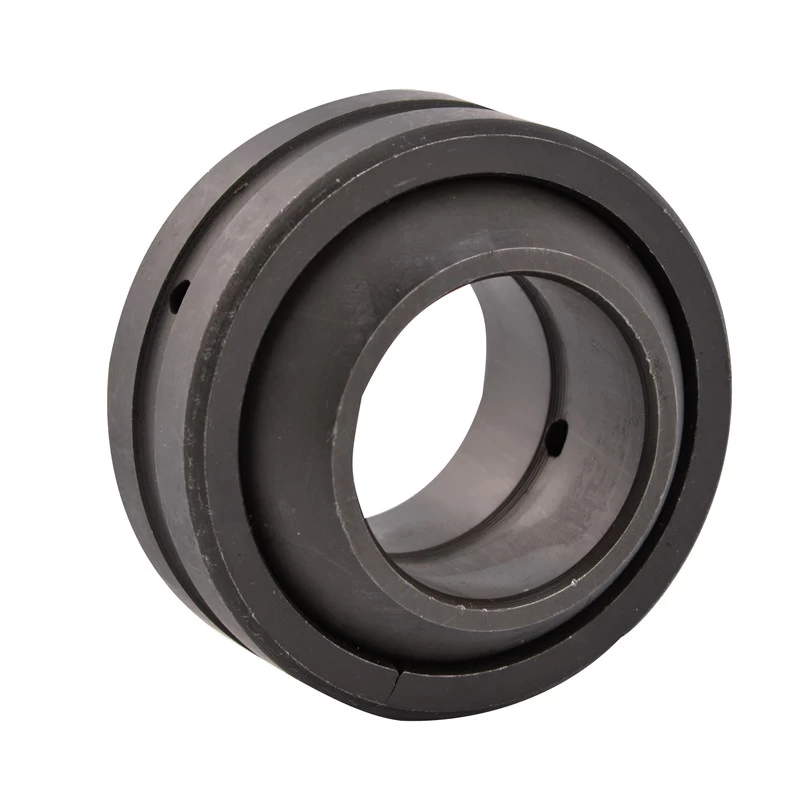

Radial Spherical Plain Bearing GEG15ES

Bearing No. Dimensions(mm)
Load ratings
KN
a°
≈
weight
≈ kg
d D B c dk rs r1s Dynamic Static
GEG4E 4 14 7 4 10 0.3 0.3 3.4 17 20 0.005
GEG5E 5 16 9 5 13 0.3 0.3 5.5 27 21 0.008
GEG6E 6 16 9 5 13 0.3 0.3 5.5 27 21 0.006
GEG8E 8 19 11 6 16 0.3 0.3 8.1 40 21 0.014
GEG10E 10 22 12 7 18 0.3 0.3 10 53 18 0.021
GEG12E 12 26 15 9 22 0.3 0.3 16 84 18 0.033
GEG15ES 15 30 16 10 25 0.3 0.3 21 106 16 0.049
GEG17ES 17 35 20 12 29 0.3 0.3 30 146 19 0.083
GEG20ES 20 42 25 16 35.5 0.3 0.6 48 240 17 0.153
GEG25ES 25 47 28 18 40.7 0.6 0.6 62 310 17 0.203
GEG30ES 30 55 32 20 47 0.6 1 79 399 17 0.304
GEG35ES 35 62 35 22 53 0.6 1 99 495 16 0.408
GEG40ES 40 68 40 25 60 0.6 1 127 637 17 0.542
GEG45ES 45 75 43 28 66 0.6 1 156 780 15 0.713
GEG50ES 50 90 56 36 80 0.6 1 245 1220 17 1.14
GEG60ES 60 105 63 40 92 1 1 313 1560 17 2.05
GEG70ES 70 120 70 45 105 1 1 400 2000 16 3.01
GEG80ES 80 130 75 50 115 1 1 488 2440 14 3.64
GEG90ES 90 150 85 55 130 1 1 607 3030 15 5.22
GEG100ES 100 160 85 55 140 1 1 654 3270 14 6.05
GEG110ES 110 180 100 70 160 1 1 950 4750 12 9.68
GEG120ES 120 210 115 70 180 1 1 1070 5350 16 14.01
GEG140ES 140 230 130 80 200 1 1 1360 6800 16 19.01
GEG160ES 160 260 135 80 225 1.1 1.1 1530 7650 16 24.70
GEG180ES 180 290 155 100 250 1.1 1.1 2120 10600 14 35.90
GEG200ES 200 320 165 100 275 1.1 1.1 2320 11600 15 45.28
GEG220ES 220 340 175 100 300 1.1 1.1 2550 12700 16 51.12
GEG240ES 240 370 190 110 325 1.1 1.1 3030 15190 15 65.12
GEG260ES 260 400 205 120 350 1.1 1.1 3570 17850 15 82.44
GEG280ES 280 430 210 120 375 1.1 1.1 3800 19100 15 97.21

Bearing No. Dimensions(mm)
Load ratings
KN
a°
≈
weight
≈ kg
d D B c dk rs r1s Dynamic Static
GEG15ES-2RS 15 30 16 10 25 0.3 0.3 21 106 16 0.049
GEG17ES-2RS 17 35 20 12 29 0.3 0.3 30 146 19 0.083
GEG20ES-2RS 20 42 25 16 35.5 0.3 0.6 48 240 17 0.153
GEG25ES-2RS 25 47 28 18 40.7 0.6 0.6 62 310 17 0.203
GEG30ES-2RS 30 55 32 20 47 0.6 1 79 399 17 0.304
GEG35ES-2RS 35 62 35 22 53 0.6 1 99 495 16 0.408
GEG40ES-2RS 40 68 40 25 60 0.6 1 127 637 17 0.542
GEG45ES-2RS 45 75 43 28 66 0.6 1 156 780 15 0.713
GEG50ES-2RS 50 90 56 36 80 0.6 1 245 1220 17 1.14
GEG60ES-2RS 60 105 63 40 92 1 1 313 1560 17 2.05
GEG70ES-2RS 70 120 70 45 105 1 1 400 2000 16 3.01
GEG80ES-2RS 80 130 75 50 115 1 1 488 2440 14 3.64
GEG90ES-2RS 90 150 85 55 130 1 1 607 3030 15 5.22
GEG100ES-2RS 100 160 85 55 140 1 1 654 3270 14 6.05
GEG110ES-2RS 110 180 100 70 160 1 1 950 4750 12 9.68
GEG120ES-2RS 120 210 115 70 180 1 1 1070 5350 16 14.01
GEG140ES-2RS 140 230 130 80 200 1 1 1360 6800 16 19.01
GEG160ES-2RS 160 260 135 80 225 1.1 1.1 1530 7650 16 24.70
GEG180ES-2RS 180 290 155 100 250 1.1 1.1 2120 10600 14 35.90
GEG200ES-2RS 200 320 165 100 275 1.1 1.1 2320 11600 15 45.28
GEG220ES-2RS 220 340 175 100 300 1.1 1.1 2550 12700 16 51.12
GEG240ES-2RS 240 370 190 110 325 1.1 1.1 3030 15190 15 65.12
GEG260ES-2RS 260 400 205 120 350 1.1 1.1 3570 17850 15 82.44
GEG280ES-2RS 280 430 210 120 375 1.1 1.1 3800 19100 15 97.21
