Maintenance Required Plain Bearings SCOM

BALL

·440C Stainless steel

·Heat treated

·Hard chrome Plated

·Precision ground

Race

·300 Series stainless steel


Facebook Twitter Pinterest LinkedIn 分享

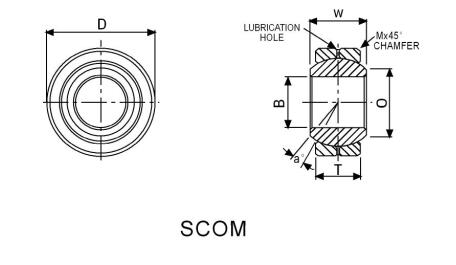

Stainless Steel Spherical Bearing SCOM4

Bearing No.   DIMENSIONS IN INCHES
Metal
to
Metal
B
 +.0015
 -.0005
D
+.0000
-.0007
T
±.005
W
±.005
0
Shoulder.
Dia. Ref.
M
Chamfer
Ref
Ball
Dia.
Ref.
Misaligh.
Angle
a°
Ult.Raidal
Static
Load Lbs.
Approx.
Brg.Wt.
Lbs.
SCOM2 0.1650 0.4687 0.187 0.250 0.235 0.020 0.343 9.0 3,200 0.01
SCOM3 0.1900 0.5625 0.218 0.281 0.293 0.020 0.406 11.0 4.400 0.01
SCOM4 0.2500 0.6562 0.250 0.343 0.364 0.022 0.500 13.5 6,700 0.02
SCOM5 0.3125 0.7500 0.281 0.375 0.419 0.032 0.562 12.0 9.200 0.03
SCOM6 0.3750 0.8125 0.312 0.406 0.516 0.032 0.656 10.0 12,400 0.04
SCOM7 0.4375 0.9062 0.343 0.437 0.530 0.032 0.718 8.0 14,900 0.05
SCOM8 0.5000 1.0000 0.390 0.500 0.640 0.032 0.813 9.5 17,900 0.07
SCOM9 0.5625 1.0937 0.437 0.562 0.710 0.032 0.906 9.5 23,700 0.09
SCOM10 0.6250 1.1875 0.500 0.625 0.780 0.032 1.000 8.5 32,000 0.11
SCOM12 0.7500 1.4375 0.593 0.750 0.920 0.044 1.187 9.0 48,000 0.20
SCOM14 0.8750 1.5625 0.703 0.875 0.980 0.044 1.312 9.5 69,000 0.26
SCOM16 1.0000 1.7500 0.797 1.000 1.118 0.044 1.500 10.0 83,000 0.39
